Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 54538 |

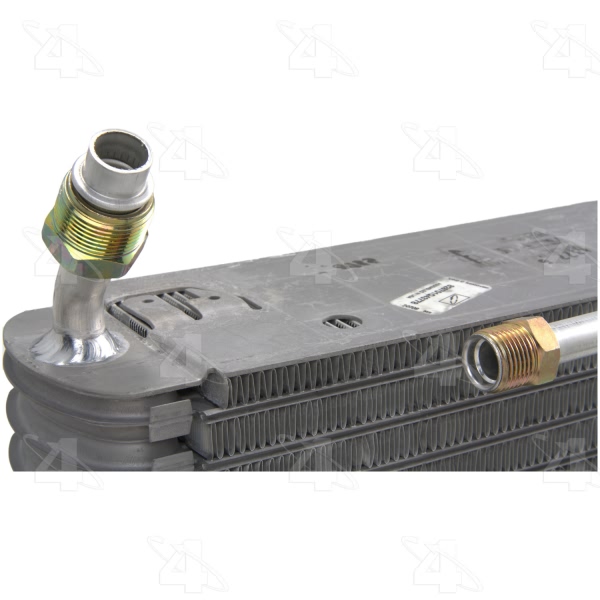

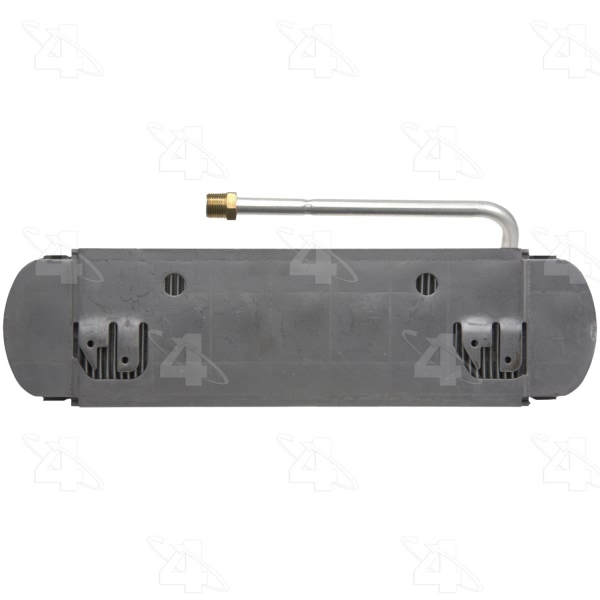

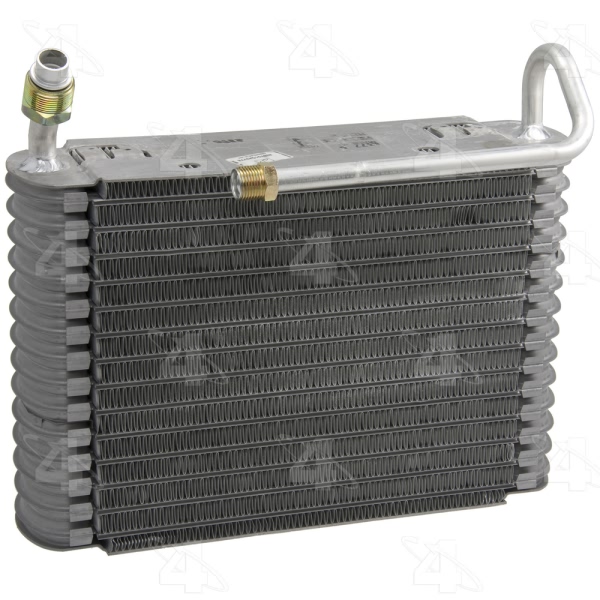

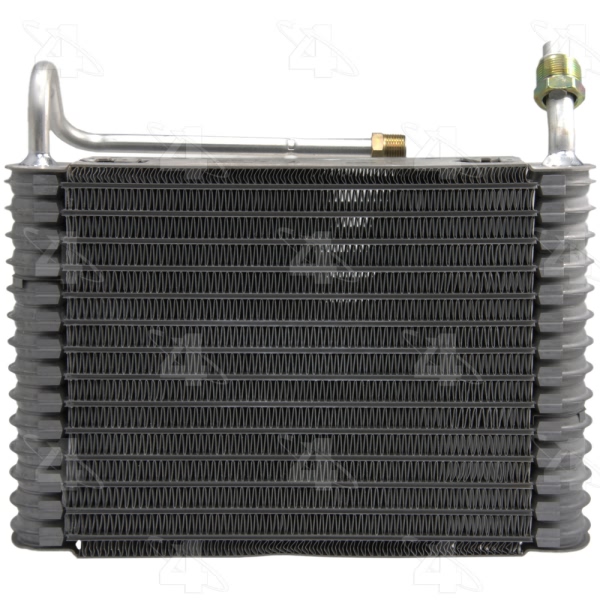

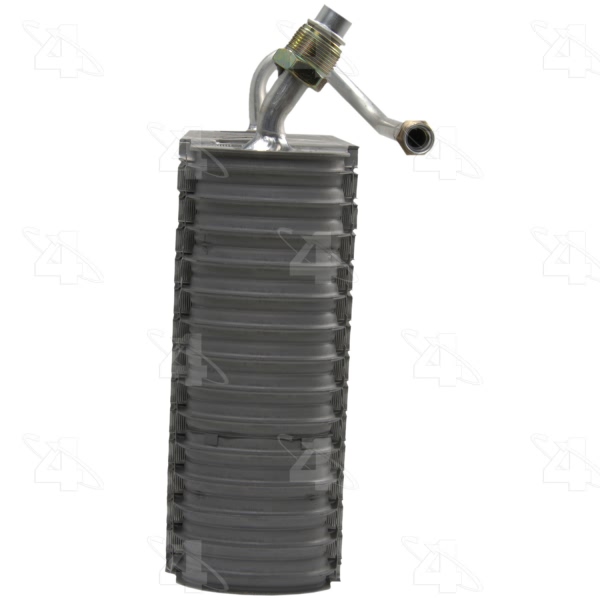

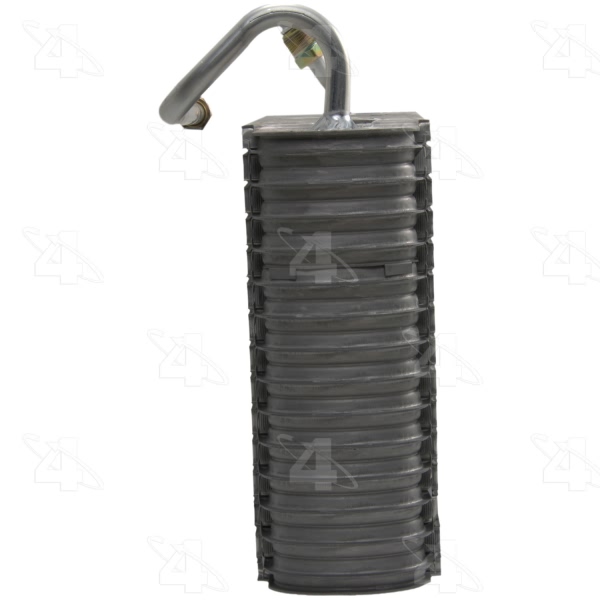

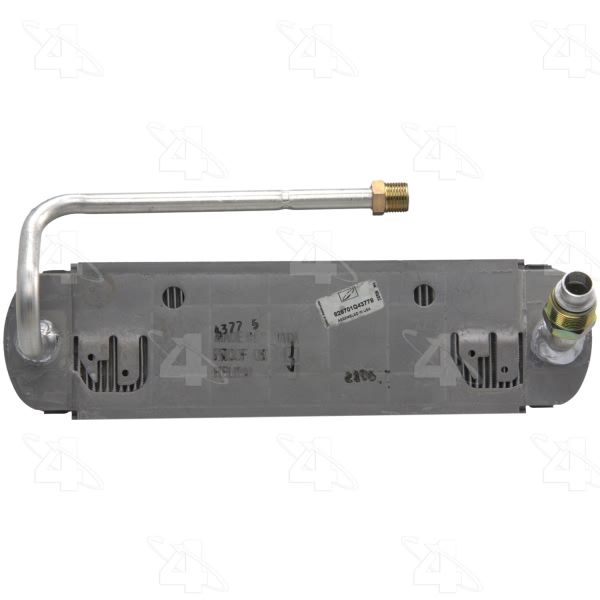

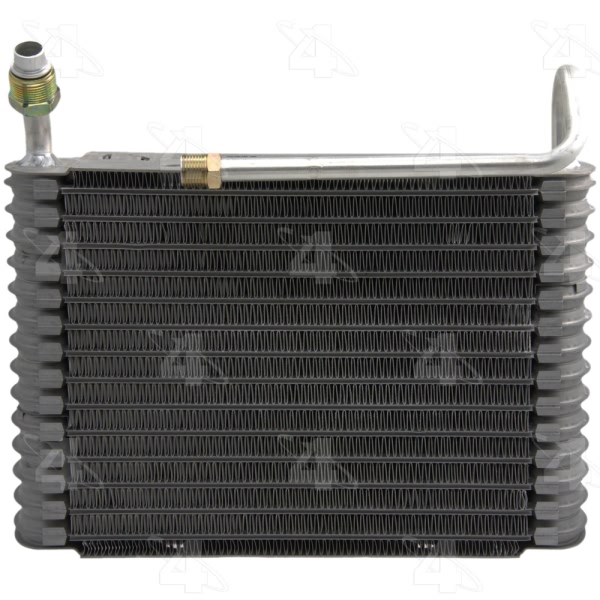

Part Description | A C Evaporator Core |
Core Depth Fraction | 3-5/8 or 3-9/16 |
Core Depth MM | 90.487 or 92.075 |
Core Height Fraction | 8-1/2 or 8-7/8 |
Core Height MM | 215.900 or 225.425 |
Core Width Fraction | 10-1/2 or 13-5/8 |
Core Width MM | 266.700 or 346.075 |
Depth | 3.563 or 3.625 |
Height | 8.500 or 8.875 |
Material | Aluminum |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24612] / Green O-Ring |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [38623] / Orifice Tube |
O-Ring C Quantity | 1 |
Outlet Fitting Outside Diameter | No. 12 |
UPC | 096361545380 |
Width | 10.500 or 13.625 |
Year Make Model | Trim | Engine |
---|---|---|
1985-1992 Chevrolet G10 | All Trims | All Engines |
1985-1992 Chevrolet G20 | All Trims | All Engines |
1985-1992 Chevrolet G30 | All Trims | All Engines |
1985-1992 GMC G1500 | All Trims | All Engines |
1985-1992 GMC G2500 | All Trims | All Engines |
1985-1992 GMC G3500 | All Trims | All Engines |
