Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 54516 |

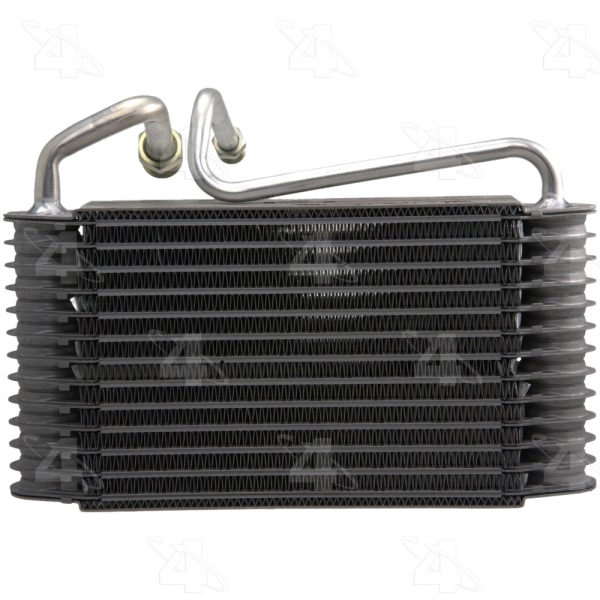

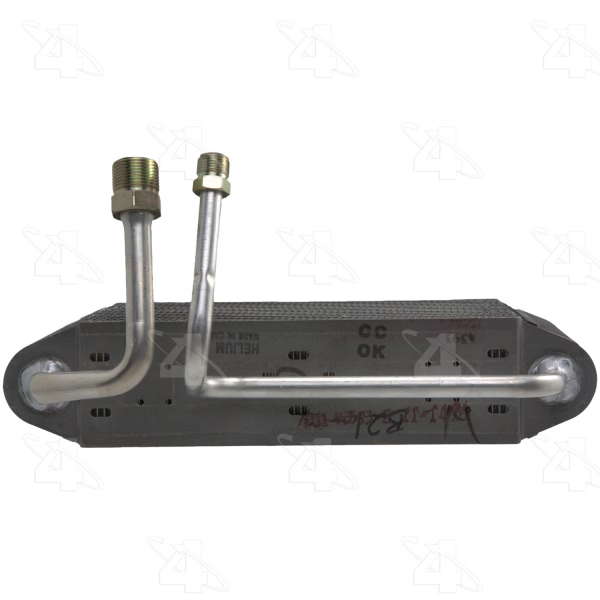

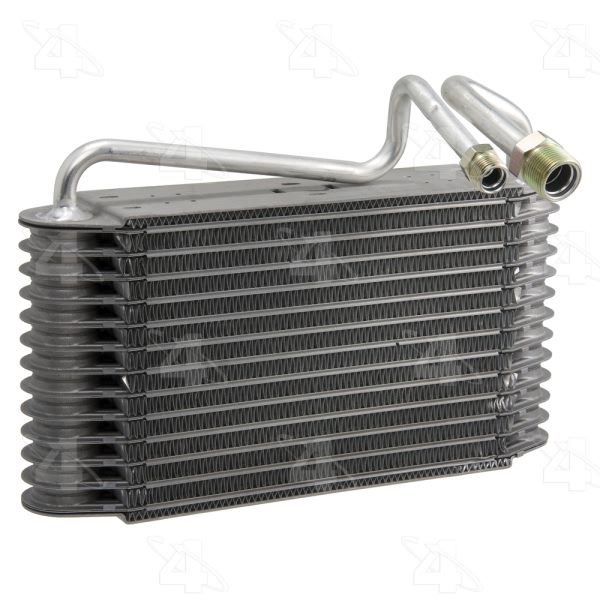

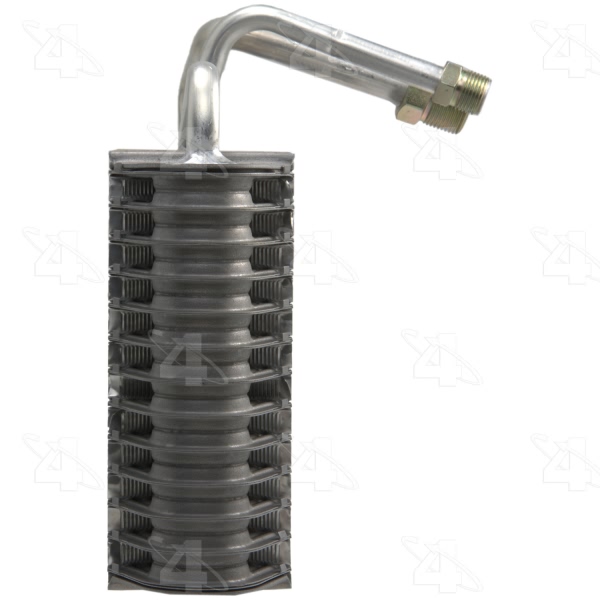

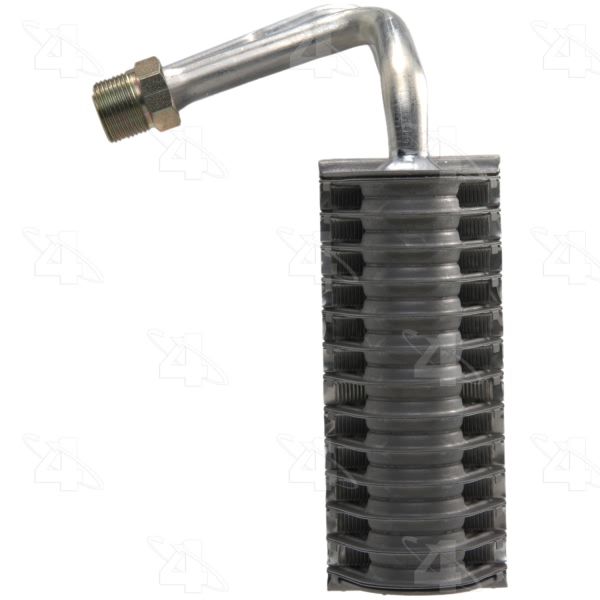

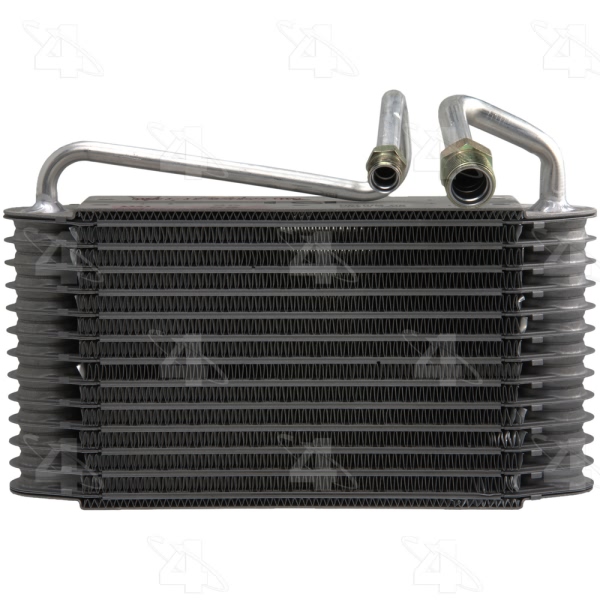

Part Description | A C Evaporator Core |
Core Depth Fraction | 2-3/4 |
Core Depth MM | 69.850 |
Core Height Fraction | 6-5/8 |
Core Height MM | 168.275 |
Core Width Fraction | 10 |
Core Width MM | 254.000 |
Depth | 2.75 or 2.750 |
Height | 6.625 |
Material | Aluminum |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24612] / Green O-Ring |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24628] / Green O-Ring |
O-Ring C Quantity | 1 |
Outlet Fitting Outside Diameter | No. 12 |
UPC | 096361545168 |
Width | 10.000 |
Year Make Model | Trim | Engine |
---|---|---|
1982-1984 Buick Skyhawk | All Trims | All Engines |
1982-1984 Cadillac Cimarron | All Trims | All Engines |
1982-1984 Chevrolet Cavalier | All Trims | All Engines |
1982-1984 Oldsmobile Firenza | All Trims | All Engines |
1982-1983 Pontiac J2000 | All Trims | All Engines |
1984 Pontiac J2000 Sunbird | All Trims | All Engines |
1988-1993 Pontiac LeMans | All Trims | All Engines |
1988-1991 Pontiac Optima | All Trims | All Engines |
1988-1991 Pontiac Tempest | All Trims | All Engines |
