Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 54497 |

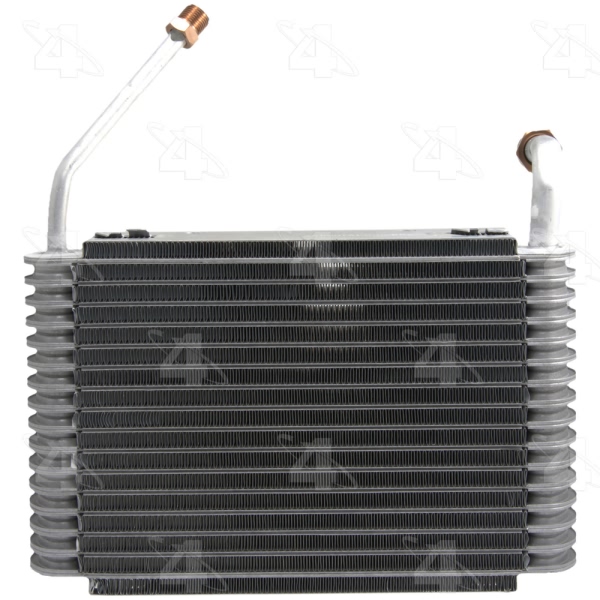

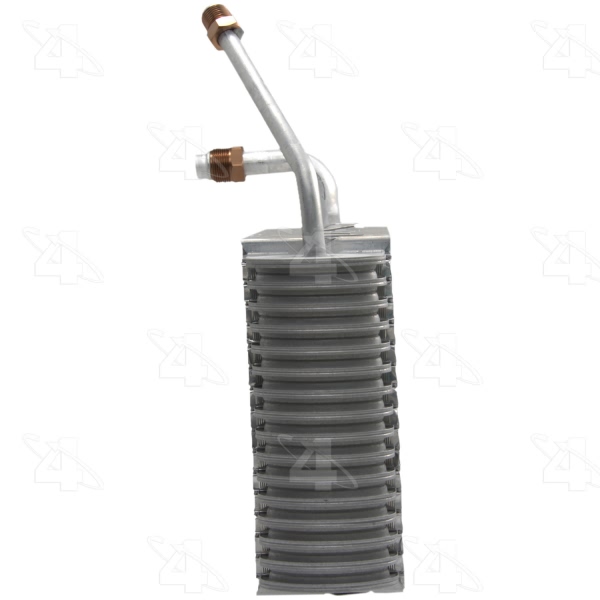

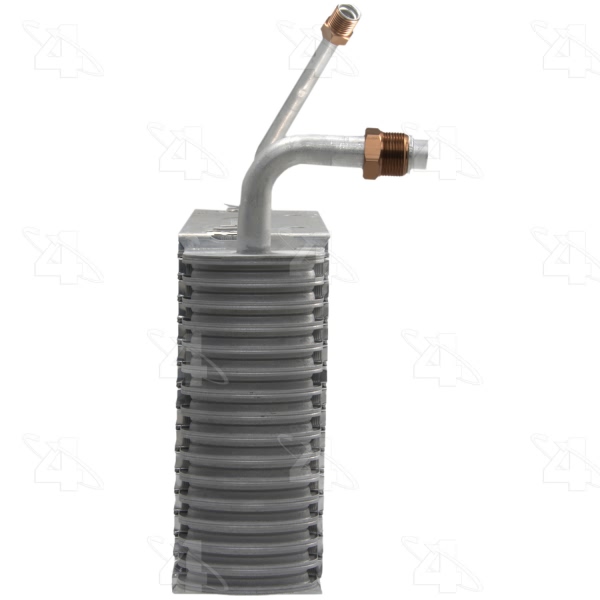

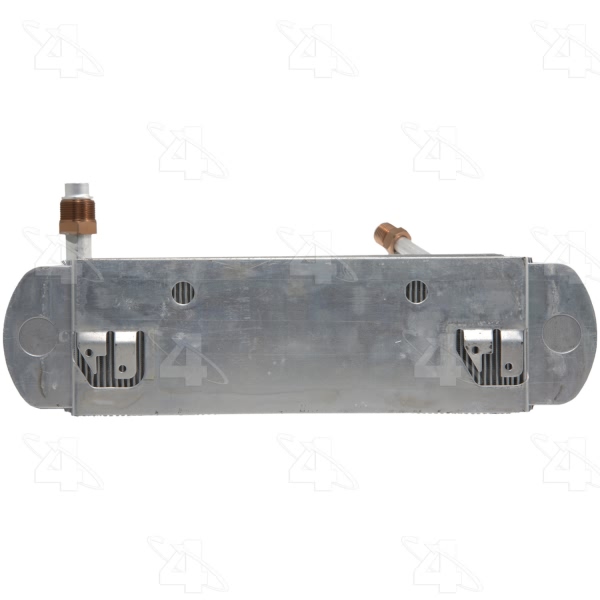

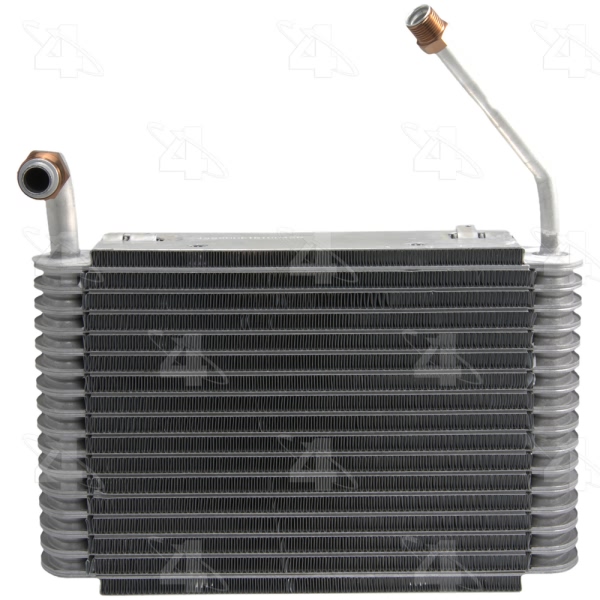

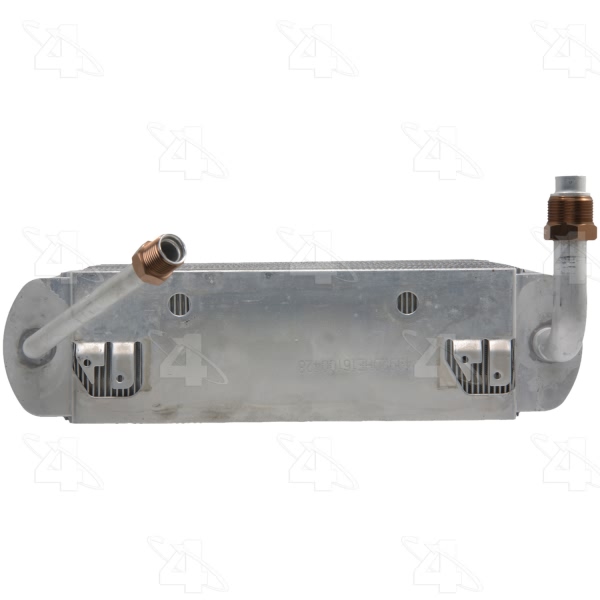

Part Description | A C Evaporator Core |
Core Depth Fraction | 3-1/2 or 3-5/8 |
Core Depth MM | 88.900 or 92.075 |
Core Height Fraction | 8 or 8-1/2 |
Core Height MM | 203.200 or 215.900 |
Core Width Fraction | 10-1/2 or 13-1/2 |
Core Width MM | 266.700 or 342.900 |
Depth | 3.500 or 3.625 |
Height | 8.000 or 8.500 |

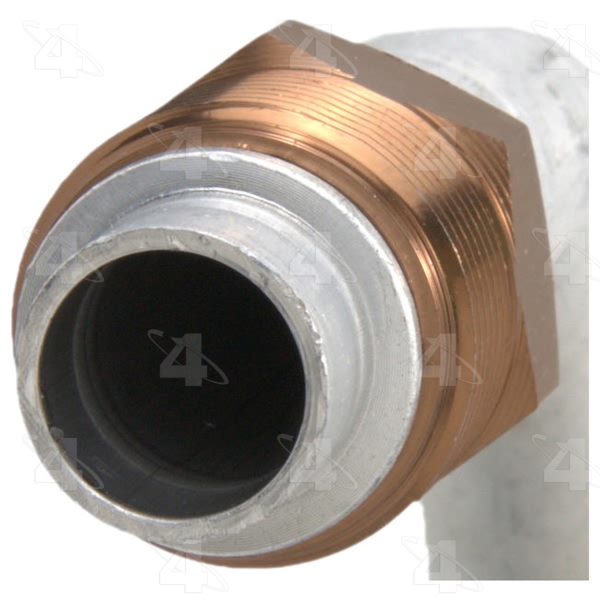

Inlet Fitting Outside Diameter | No. 12 |
Material | Aluminum |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24612] / Green O-Ring |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [38623] / Orifice Tube |
O-Ring C Quantity | 1 |
UPC | 096361544970 |
OE Part Number | 3035550, 3035700 |

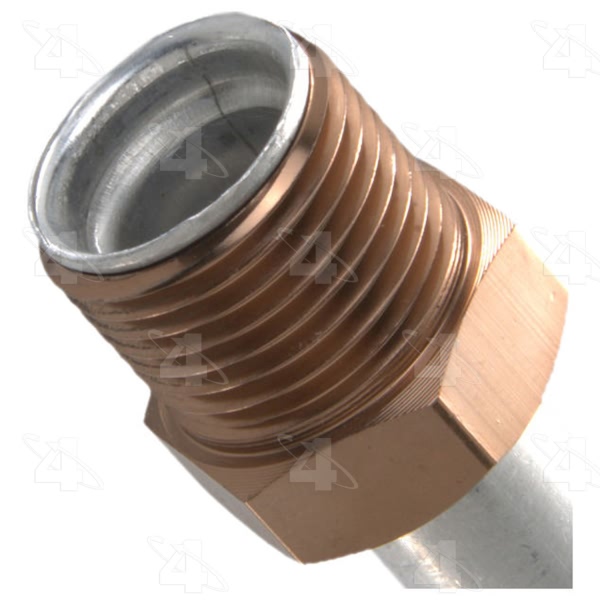

Outlet Fitting Outside Diameter | No. 12 |
Width | 10.500 or 13.500 |
Year Make Model | Trim | Engine |
---|---|---|
1976-1977 Chevrolet C10 | All Trims | All Engines |
1976-1977 Chevrolet C10 Suburban | All Trims | All Engines |
1976-1977 Chevrolet C20 | All Trims | All Engines |
1976-1977 Chevrolet C20 Suburban | All Trims | All Engines |
1976-1977 Chevrolet C30 | All Trims | All Engines |
1976-1977 Chevrolet K10 | All Trims | All Engines |
1976-1977 Chevrolet K10 Suburban | All Trims | All Engines |
1976-1977 Chevrolet K20 | All Trims | All Engines |
1976-1977 Chevrolet K20 Suburban | All Trims | All Engines |
1977 Chevrolet K30 | All Trims | All Engines |
