Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 66083 |

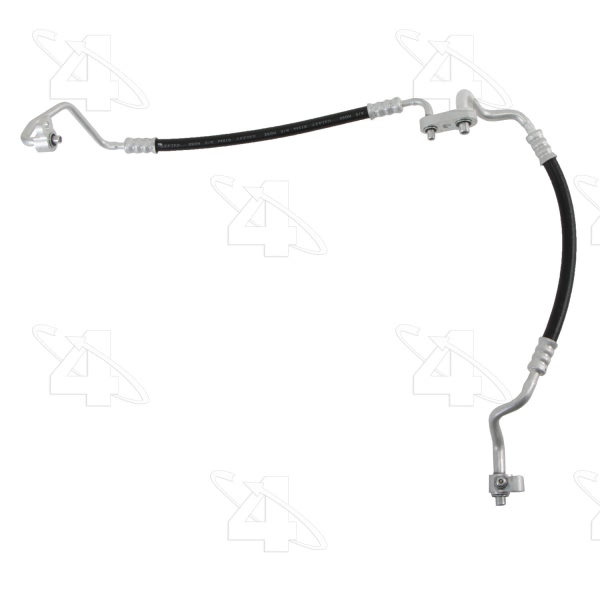

Part Description | A C Discharge And Liquid Line Hose Assembly |
Bracket | w/o Bracket |
Discharge End Type | P-Nut Fitting |
Fittings Included | Included |
Gasket or Seal Included | Included |
Liquid Line Style | P-Nut Fitting |
Manifold | w/ Manifold |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24606] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24401] / Slim Line Sealing Washer |
O-Ring B Quantity | 2 |
O-Ring C Number/Desc | [24402] / Slimline Washer |
O-Ring C Quantity | 2 |
O.E. Replacement | Yes |
Orifice Tube | Not Included |
Refrigerant Type | R134a |
Service Port | w/o Service Port |
Style | Hose Assy /Discharge, Liquid |
Suction End Size | No. 8 |
Suction End Type | P-Nut Fitting |
Switch Port Quantity | 1 |
Switch Port Size | M10x1.250 |
Switch Service Port | w/ Switch Port |
System Pressure | High Pressure |
UPC | 096361094109 |
Year Make Model | Trim | Engine |
---|---|---|
2013-2017 Chevrolet Sonic | All Trims | 4 Cyl 1.8L |
