Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 55756 |

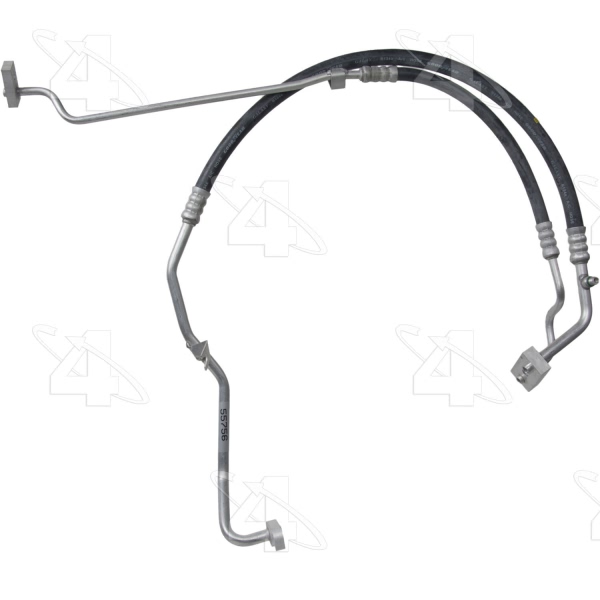

Part Description | A C Discharge And Liquid Line Hose Assembly |
Bracket | w/ Bracket |
Discharge End Type | Block |
Fittings Included | Included |
Gasket or Seal Included | Included |
Liquid Line Style | Block |
Manifold | w/ Manifold |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24606] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24124] / Filter Drier Flange Port Gasket |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24134] / Compressor Manifold Port Gasket |
O-Ring C Quantity | 1 |
O-Ring D Number/Desc | [24138] / Gasket |
O-Ring D Quantity | 1 |
O.E. Replacement | Yes |
Orifice Tube | Not Included |
Refrigerant Type | R134a |
Service Port | w/ Service Port |
Style | Hose Assy /Discharge, Liquid |
Suction End Size | No. 8 |
Suction End Style | Sealing Washer |
Suction End Type | Flange |
Switch Port Quantity | 1 |
Switch Port Size | 3/8" - 24 |
Switch Service Port | w/ Switch Port |
System Pressure | High Pressure |
UPC | 096361557567 |
Year Make Model | Trim | Engine |
---|---|---|
1992-1993 Dodge Dakota | All Trims | 6 Cyl 3.9L |
1992-1993 Dodge Dakota | All Trims | 8 Cyl 5.2L |
