Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 55754 |

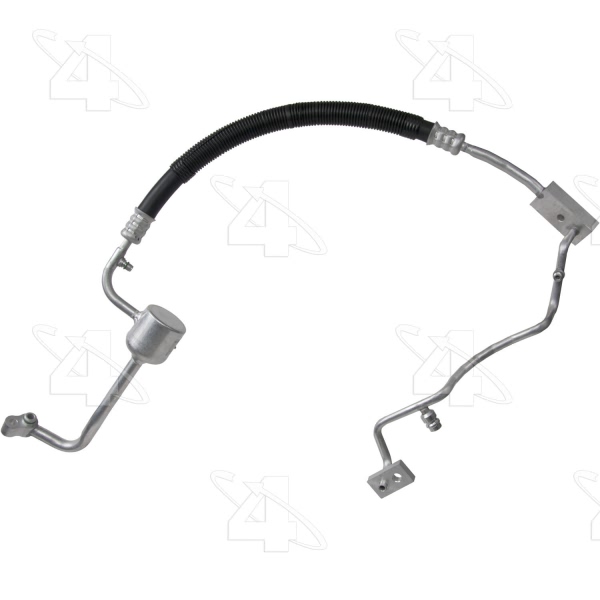

Part Description | A C Discharge And Liquid Line Hose Assembly |
Bracket | w/o Bracket |
Discharge End Type | P-Nut Fitting |
Fittings Included | Included |
Gasket or Seal Included | Included |
Liquid Line Style | P-Nut Fitting |
Manifold | w/ Manifold |
Material | Aluminum / Rubber |
Muffler | w/ Muffler |
O-Ring A Number/Desc | [24606] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | [23680] / Green O-Ring |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24124] / Filter Drier Flange Port Gasket |
O-Ring C Quantity | 1 |
O-Ring D Number/Desc | [24139] / Condenser Block Fitting Port Gasket |
O-Ring D Quantity | 1 |
O.E. Replacement | Yes |
Orifice Tube | Not Included |
Refrigerant Type | R134a |
Service Port | w/ Service Port |
Service Port Qty | 1 |
Service Port Type | R134-A Quick Disconnect |
Style | Hose Assy /Discharge, Liquid |
Suction End Size | No. 8 |
Suction End Style | Block |
Suction End Type | Block |
Svc Port High Side | High Side |
Switch Port Quantity | 1 |
Switch Port Size | M10x1.250 |
Switch Service Port | w/ Switch Port |
System Pressure | High Pressure |
UPC | 096361557543 |
Year Make Model | Trim | Engine |
---|---|---|
1993-1995 Chrysler Town & Country | All Trims | All Engines |
1993-1995 Dodge Caravan | All Trims | 6 Cyl 3.3L |
1993-1995 Dodge Grand Caravan | All Trims | 6 Cyl 3.3L |
1994-1995 Dodge Grand Caravan | All Trims | 6 Cyl 3.8L |
1993-1995 Plymouth Grand Voyager | All Trims | 6 Cyl 3.3L |
1994-1995 Plymouth Grand Voyager | All Trims | 6 Cyl 3.8L |
1993-1995 Plymouth Voyager | All Trims | 6 Cyl 3.3L |
