Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 76116 |

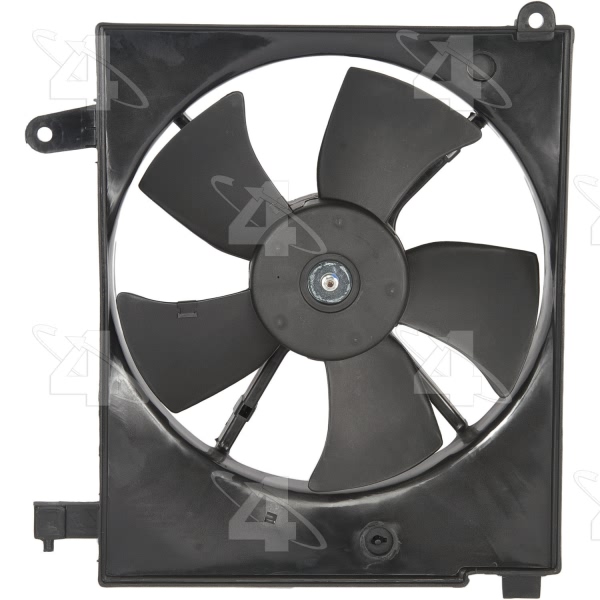

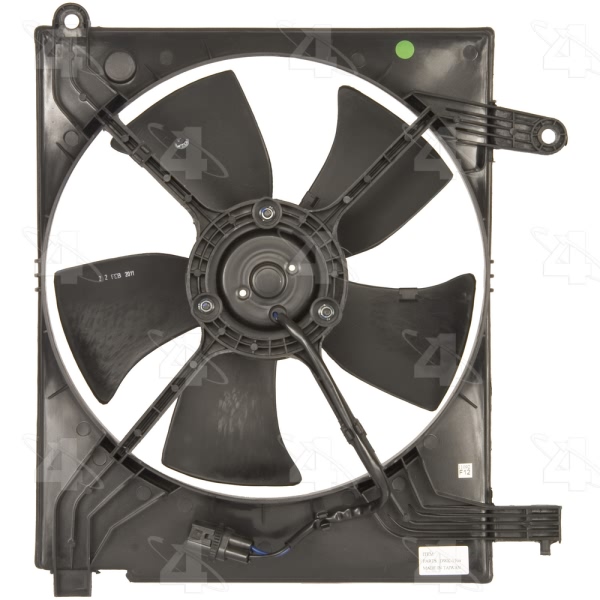

Part Description | A C Condenser Fan Assembly |
Blade Material | Plastic |
Blade Material B | Plastic |
Blade Type | Rigid |
Connector Gender | Female |
Connector qty | 1 |
Connector Shape | Oval |
Connector Type | 2 wire lead w/ Connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 5 |
Fan 2 Blade Quantity | 5 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 1 |
Height IN | 13.250 |
Height MM | 323.850 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Mount Location | Condenser Fan |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
UPC | 096361761162 |
OE Part Number | 621333, FA70566 |
Package Depth IN | 20.750 |
Package Depth MM | 527.050 |
Package Height IN | 6.500 |
Package Height MM | 165.100 |
Package Length IN | 18.000 |
Package Length MM | 457.200 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Plastic |
Style | Condenser Fan |
Terminal Gender | Male |
Terminal Quantity | 2 |
Voltage | 12 |
Width IN | 15.500 |
Year Make Model | Trim | Engine |
---|---|---|
1999-2002 Daewoo Nubira | All Trims | All Engines |
