Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 76069 |

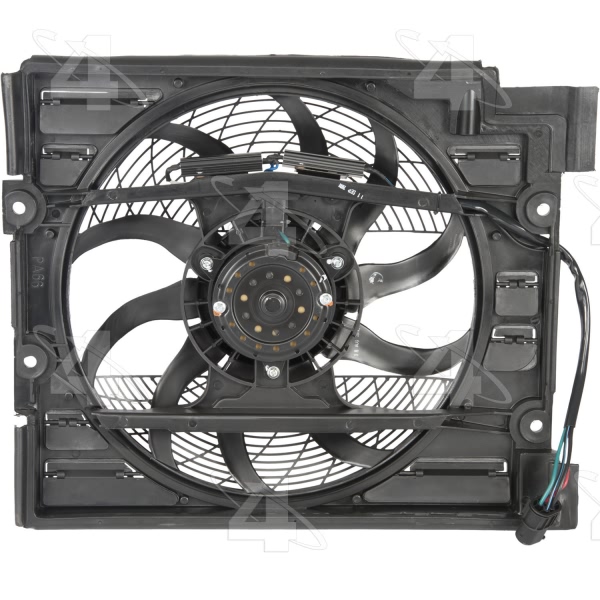

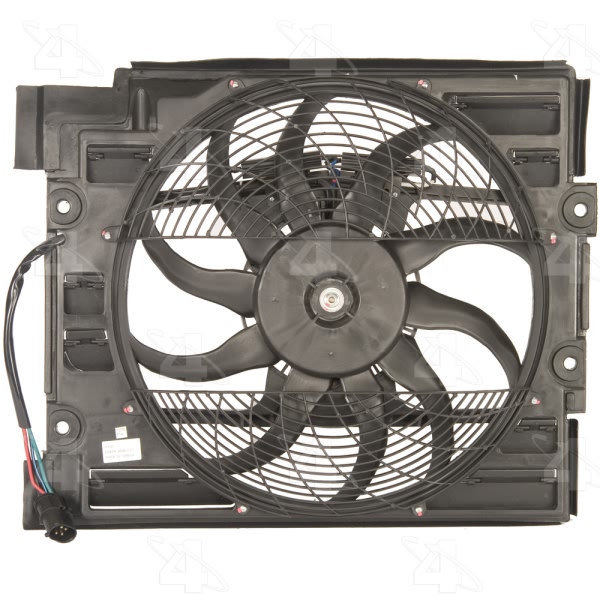

Part Description | A C Condenser Fan Assembly |
Blade Material | Plastic |
Blade Material B | Plastic |
Blade Type | Rigid |
Connector Gender | Female |
Connector qty | 1 |
Connector Shape | Oval |
Connector Type | 4 lead wires w/ connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 10 |
Fan 2 Blade Quantity | 10 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 1 |
Height IN | 20.000 |
Height MM | 438.150 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Mount Location | Condenser Fan |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
Package Depth IN | 24.000 |
Package Depth MM | 609.600 |
Package Height IN | 5.000 |
Package Height MM | 127.000 |
Package Length IN | 19.250 |
Package Length MM | 488.950 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Plastic |
Style | Condenser Fan |
Terminal Gender | Male |
Terminal Quantity | 4 |
UPC | 096361760691 |
Voltage | 12 |
Width IN | 24.500 |
Year Make Model | Trim | Engine |
---|---|---|
1997-1998 BMW 528i | All Trims | All Engines |
1997-1998 BMW 540i | All Trims | All Engines |
