Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 76031 |

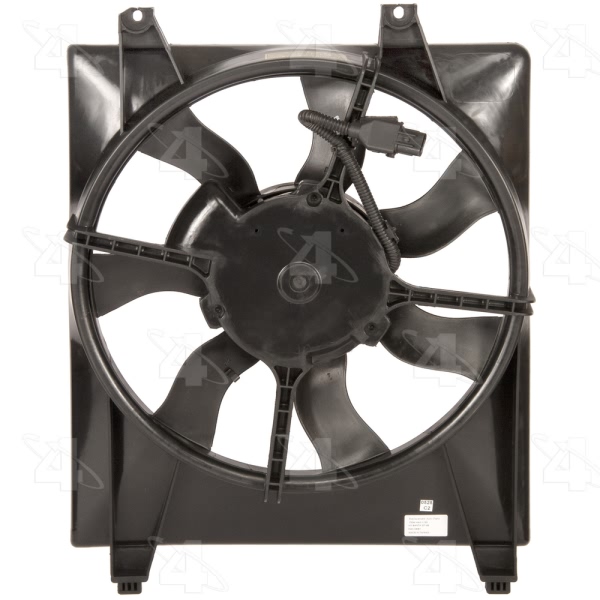

Part Description | A C Condenser Fan Assembly |
Blade Material | Plastic |
Blade Material B | Plastic |
Blade Type | Rigid |
Connector Gender | Male |
Connector qty | 1 |
Connector Shape | Rectangle |
Connector Type | 2 wire lead w/ Connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 7 |
Fan 2 Blade Quantity | 7 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 1 |
Height IN | 21.750 |
Height MM | 431.800 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Mount Location | Condenser Fan |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
Package Depth IN | 21.000 |
Package Depth MM | 533.400 |
Package Height IN | 6.500 |
Package Height MM | 165.100 |
Package Length IN | 18.000 |
Package Length MM | 457.200 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Plastic |
Style | Condenser Fan |
Terminal Gender | Male |
Terminal Quantity | 2 |
UPC | 096361760318 |
Voltage | 12 |
Width IN | 16.750 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2009 Hyundai Santa Fe | All Trims | 6 Cyl 2.7L |
2007-2009 Hyundai Santa Fe | All Trims | 6 Cyl 3.3L |
