Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 75561 |

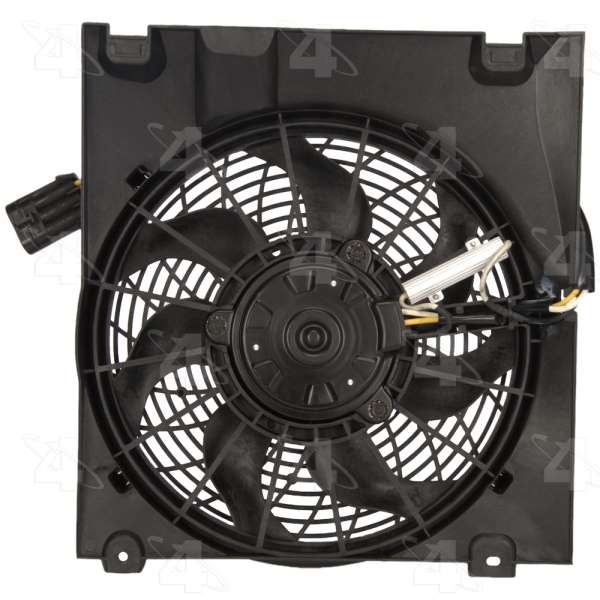

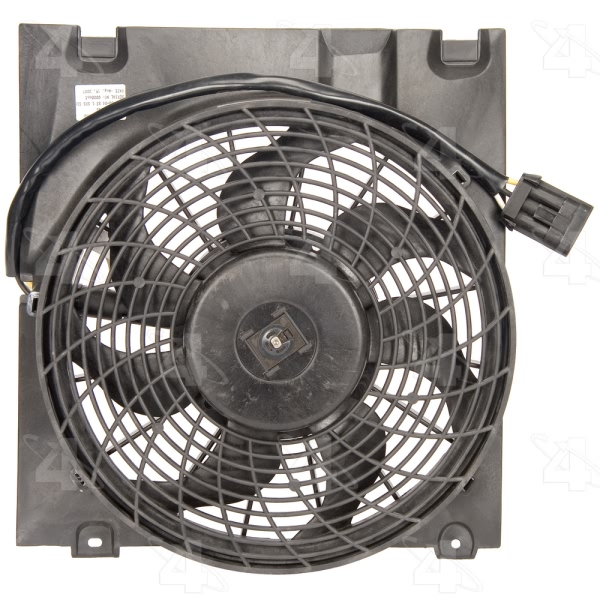

Part Description | A C Condenser Fan Assembly |
Blade Material | Plastic |
Blade Type | Rigid |
Connector Gender | Female |
Connector qty | 1 |
Connector Shape | T-Shape |
Connector Type | 3 wire lead w/ Connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 6 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 1 |
Height IN | 14.250 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Motor Type A | Radiator Fan Assembly |
Mount Location | Condenser Fan |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
Package Depth IN | 19.500 |
Package Depth MM | 495.300 |
Package Height IN | 5.500 |
Package Height MM | 139.700 |
Package Length IN | 16.500 |
Package Length MM | 419.100 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Plastic |
Style | Condenser Fan |
Terminal Gender | Male |
Terminal Quantity | 3 |
UPC | 096361755611 |
Voltage | 12 |
Width IN | 13.500 |
Year Make Model | Trim | Engine |
---|---|---|
2001-2002 Saturn L100 | All Trims | All Engines |
2001-2003 Saturn L200 | All Trims | All Engines |
2004 Saturn L300 | All Trims | 4 Cyl 2.2L |
2000 Saturn LS | All Trims | All Engines |
2000 Saturn LS1 | All Trims | All Engines |
2000 Saturn LW1 | All Trims | All Engines |
2001-2003 Saturn LW200 | All Trims | All Engines |
