Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 75555 |

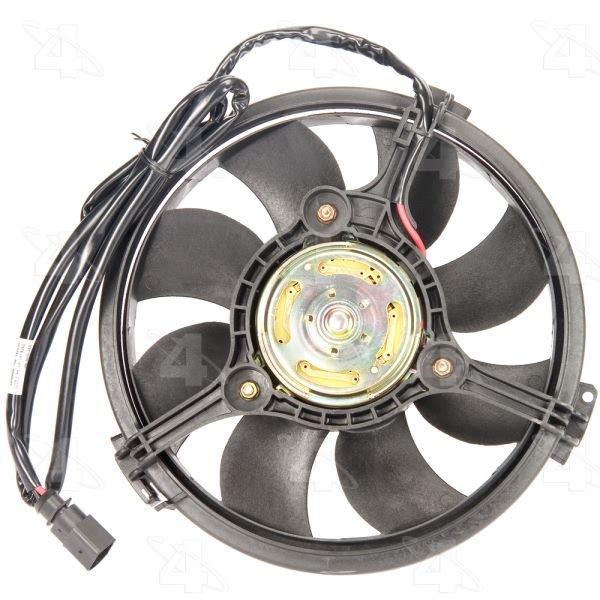

Part Description | A C Condenser Fan Assembly |
Blade Material | Plastic |
Blade Type | Rigid |
Connector Gender | Female or Male |
Connector qty | 1 |
Connector Shape | Round |
Connector Type | 2 wire lead w/ Connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 8 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 1 |
Height IN | 14.500 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Motor Type A | Radiator Fan Assembly |
Mount Location | Condenser Fan |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
Package Depth IN | 19.500 |
Package Depth MM | 495.300 |
Package Height IN | 5.500 |
Package Height MM | 139.700 |
Package Length IN | 16.500 |
Package Length MM | 419.100 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | NA |
Style | Condenser Fan |
Terminal Gender | Male |
Terminal Quantity | 2 |
UPC | 096361755550 |
Voltage | 12 |
Width IN | 14.500 |
Year Make Model | Trim | Engine |
---|---|---|
1996-2001 Audi A4 | All Trims | All Engines |
1996-2001 Audi A4 Quattro | All Trims | All Engines |
1998 Audi A6 | All Trims | All Engines |
1998 Audi A6 Quattro | All Trims | All Engines |
1997-1999 Audi A8 | All Trims | All Engines |
1997-2001 Audi A8 Quattro | All Trims | All Engines |
2001 Audi S6 | All Trims | All Engines |
2001 Audi S8 | All Trims | All Engines |
1998-2001 Volkswagen Passat | All Trims | All Engines |
