Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 75516 |

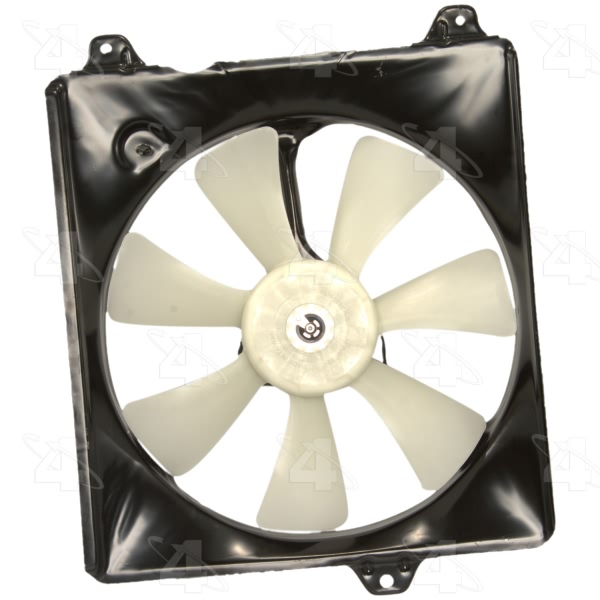

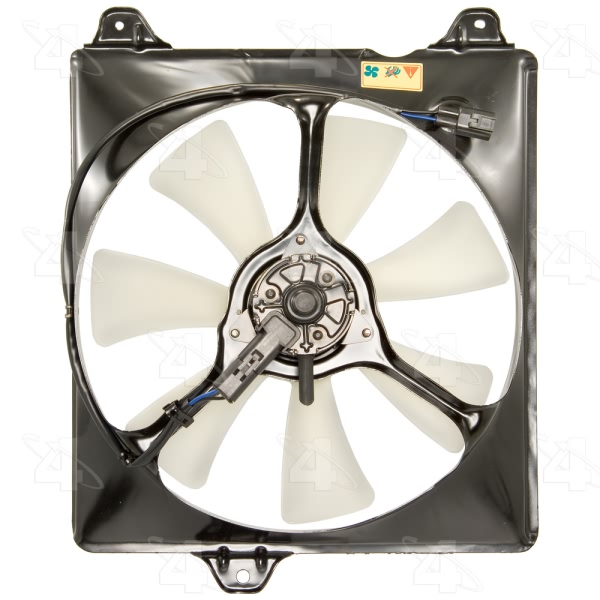

Part Description | A C Condenser Fan Assembly |
Blade Material | Plastic |
Blade Material B | Plastic |
Blade Type | Rigid |
Connector Gender | Female |
Connector qty | 1 |
Connector Shape | Oval |

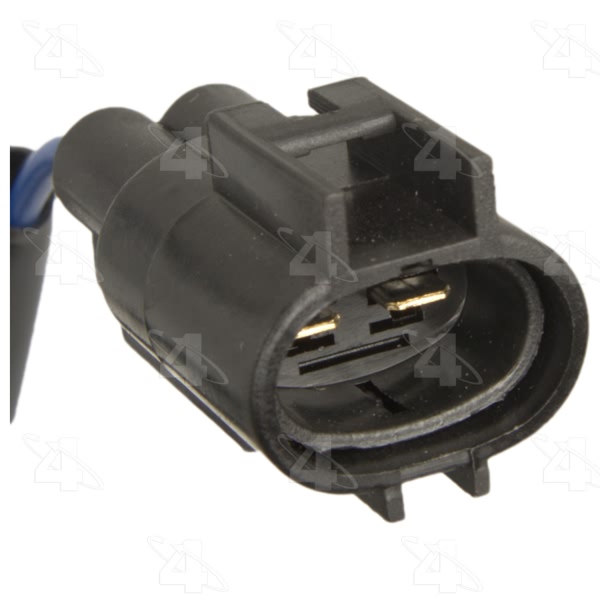

Connector Type | 2 wire lead w/ Connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 7 |
Fan 2 Blade Quantity | 7 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 1 |
Height IN | 20.500 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Mount Location | Condenser Fan |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
Package Depth IN | 20.250 |
Package Depth MM | 514.350 |
Package Height IN | 6.750 |
Package Height MM | 171.450 |
Package Length IN | 17.750 |
Package Length MM | 450.850 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Metal |
Style | Condenser Fan |
Terminal Gender | Male |
Terminal Quantity | 2 |
UPC | 096361755161 |
Voltage | 12 |
Width IN | 16.250 |
Year Make Model | Trim | Engine |
---|---|---|
1997-1998 Toyota Camry | All Trims | 6 Cyl 3.0L |
