Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 75498 |

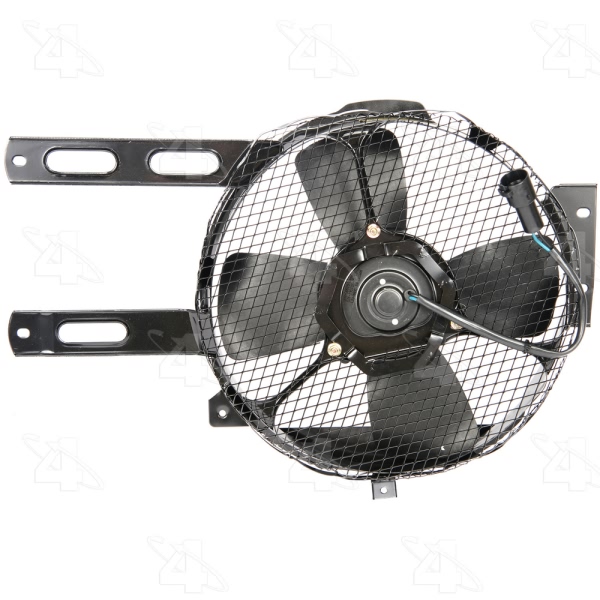

Part Description | A C Condenser Fan Assembly |
Blade Material | Plastic |
Blade Type | Rigid |
Connector Gender | Male |
Connector qty | 1 |
Connector Shape | Round |
Connector Type | 2 Spade |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 6 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 1 |
Height IN | 18.500 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Motor Type A | Condenser Fan |
Mount Location | Condenser Fan |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
Package Depth IN | 20.500 |
Package Depth MM | 520.700 |
Package Height IN | 5.500 |
Package Height MM | 139.700 |
Package Length IN | 16.750 |
Package Length MM | 425.450 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Steel |
Style | Condenser Fan |
Terminal Gender | Male |
Terminal Quantity | 2 |
UPC | 096361754980 |
Voltage | 12 |
Width IN | 12.500 |
Year Make Model | Trim | Engine |
---|---|---|
1989-1991 Suzuki Swift | All Trims | All Engines |
1992-1994 Suzuki Swift | All Trims | 4 Cyl 1.3L |
