Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 198580 |

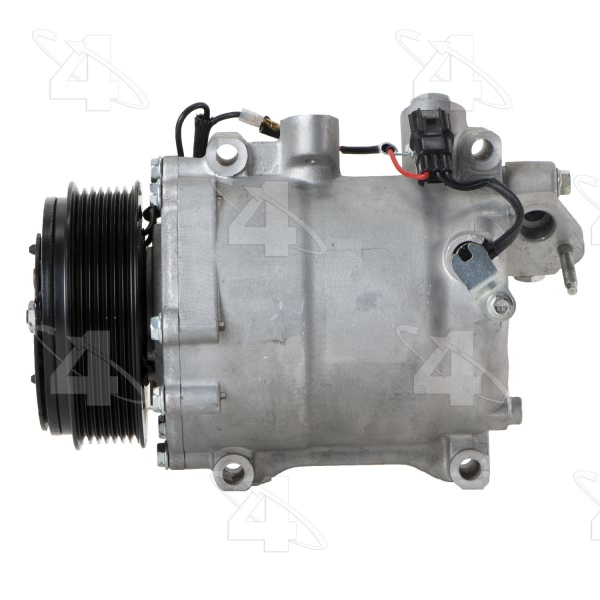

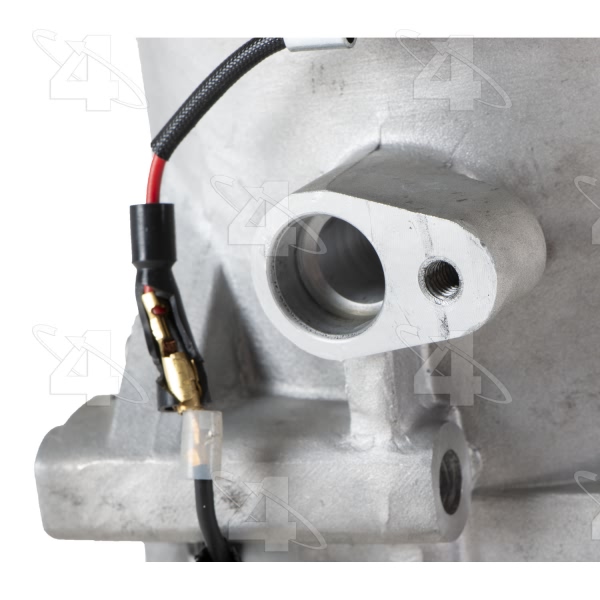

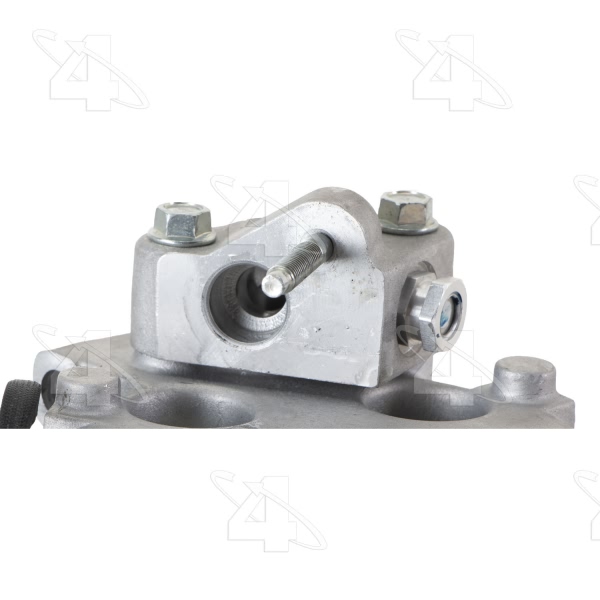

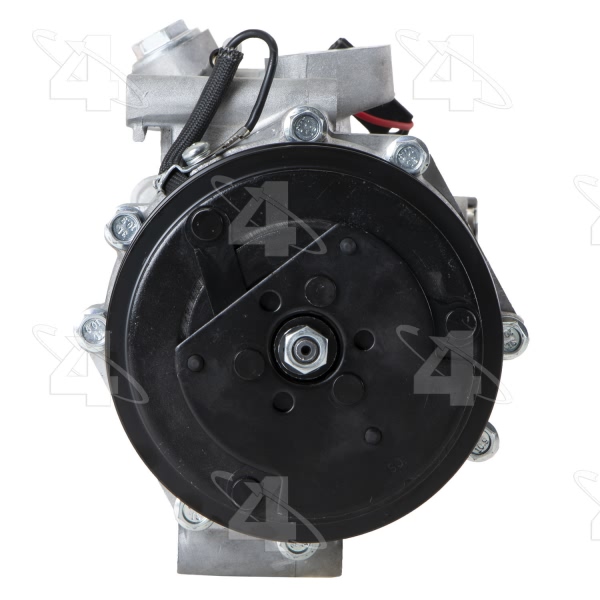

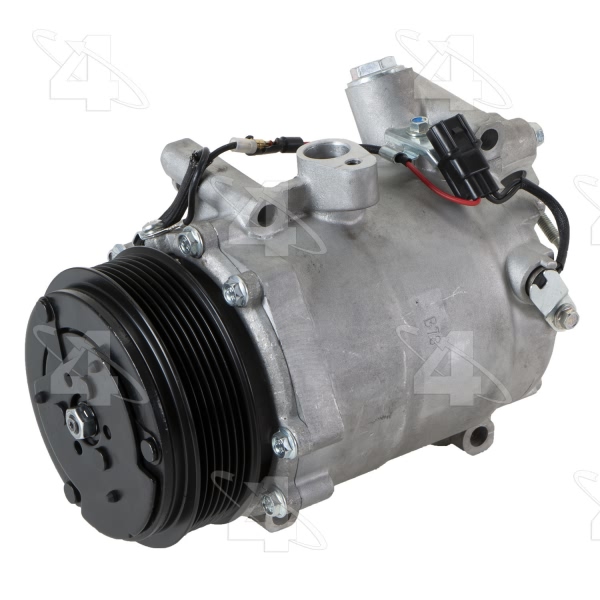

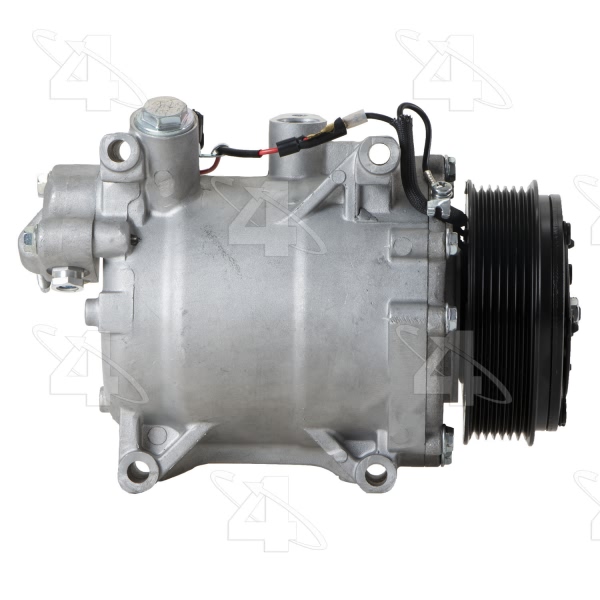

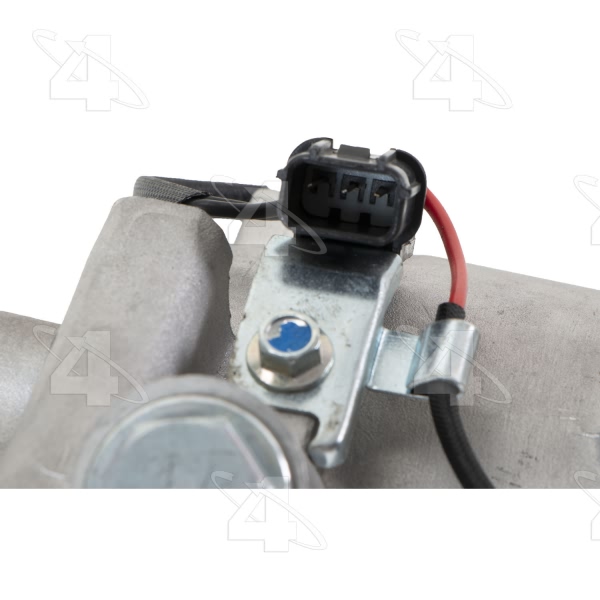

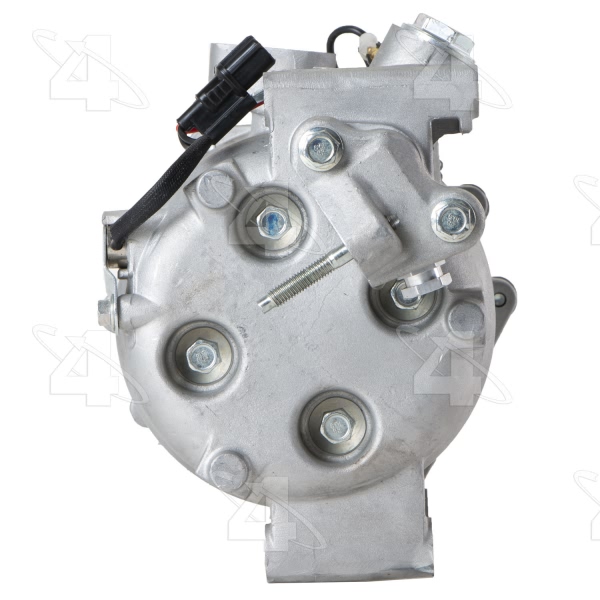

Part Description | A C Compressor |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.52 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | TRSE09 |
Mount Distance B IN | 1.34375 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | 24661 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24681 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 7 |
Pulley Lip Diameter | 4.52 |
Pulley Outside Diameter | 4.52 |
Pulley Ridge Diameter | 4.52 |
Refrigerant Type | R134a |
Terminal Type | Pin |
UPC | 096361091184 |
Year Make Model | Trim | Engine |
---|---|---|
2013-2015 Acura ILX | All Trims | 4 Cyl 2.4L |
2012-2014 Honda CR-V | All Trims | All Engines |
2012-2015 Honda Civic | All Trims | 4 Cyl 2.4L |
