Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 168360 |

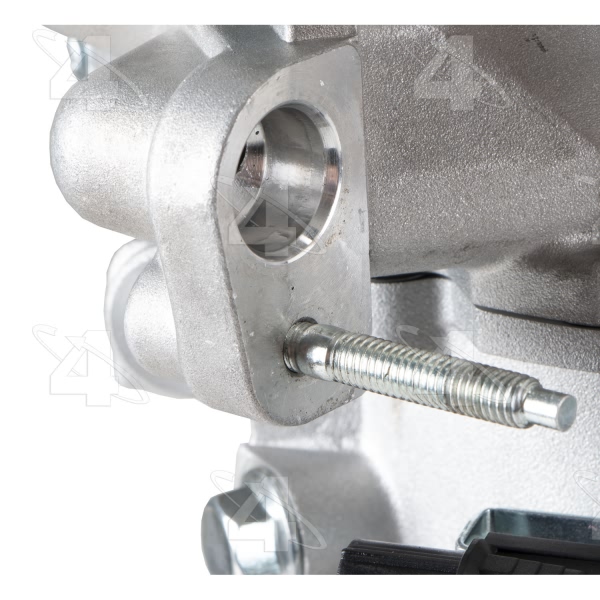

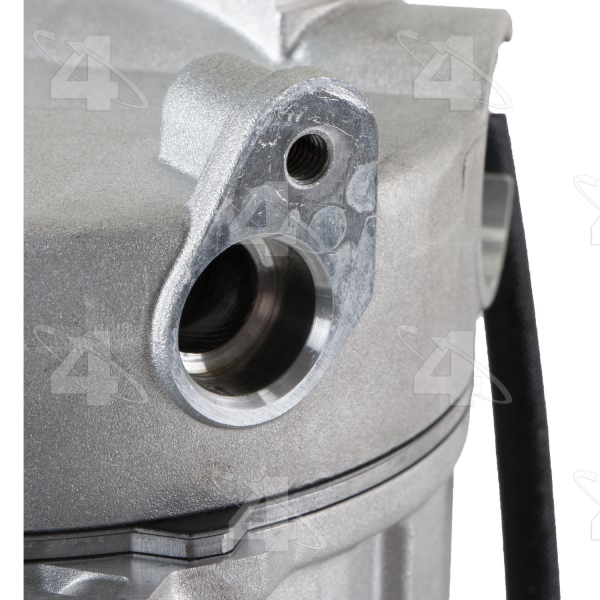

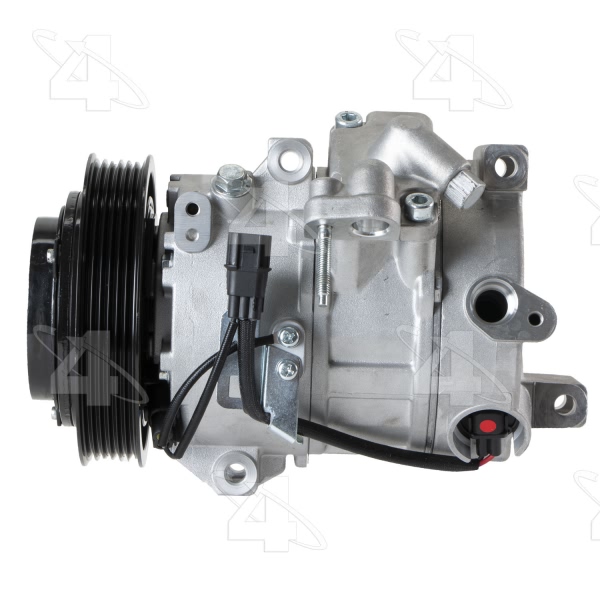

Part Description | A C Compressor |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.250 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 7SBU17C |
Distance From Clutch To Mounting Flange | 2.296875 |
ECV Harness Connector | SE03F / SE03R-F, 26890 / 26891 Female / / SE03R-F, Vehicle SE03M, 26873 / 26874 Male |
Mounting Hardware | Not Included |
Mounting Type | 3 Tangent One on Rear Head |
New or Reman | New |
O-Ring A Number/Desc | 24661 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24681 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.250 |
Pulley Outside Diameter | 5.250 |
Pulley Ridge Diameter | 5.250 |
Refrigerant Type | R134a |
Terminal Type | Pin |
UPC | 096361092402 |
Year Make Model | Trim | Engine |
---|---|---|
2014-2016 Acura RLX | All Trims | All Engines |
2017 Acura RLX | All Trims | 6 Cyl 3.5L |
2018 Acura RLX | Base | All Engines |
