Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98673 |

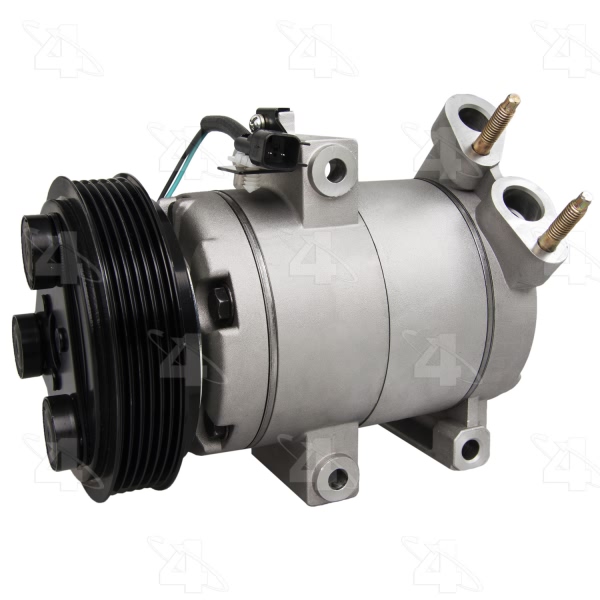

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.921 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | DKS17DS |
Discharge Port Type | O-Ring / Gasket |
Distance From Clutch To Mounting Flange | 2.250 |
Mount Distance MM | 57.150 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24241] / Sealing Washer Kit |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24243] / Tear Drop Sealing Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 125.000 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.921 |
Pulley Outside Diameter | 4.921 |
Pulley Ridge Diameter | 4.921 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring / Gasket |
Terminal Type | Pin |
UPC | 096361986732 |
w/ Diode | Yes |
Year Make Model | Trim | Engine |
---|---|---|
2008 Ford Escape | All Trims | 4 Cyl 2.3L |
2009-2012 Ford Escape | All Trims | 4 Cyl 2.5L |
2008 Mazda Tribute | All Trims | 4 Cyl 2.3L |
2009-2011 Mazda Tribute | All Trims | 4 Cyl 2.5L |
2008 Mercury Mariner | All Trims | 4 Cyl 2.3L |
2009-2011 Mercury Mariner | All Trims | 4 Cyl 2.5L |
