Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98668 |

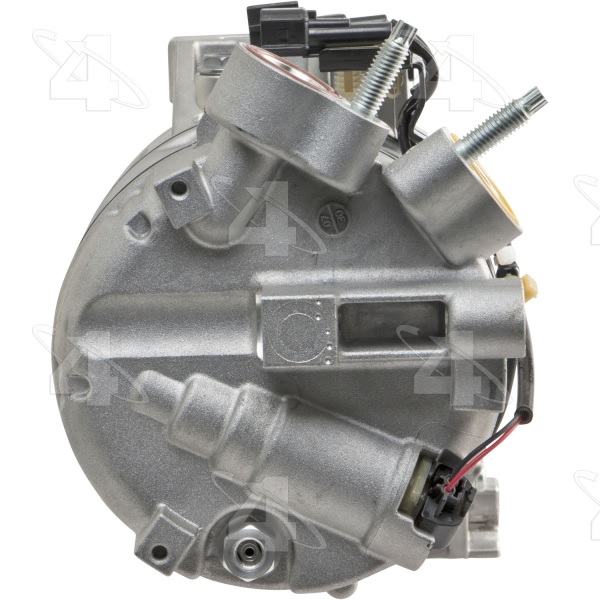

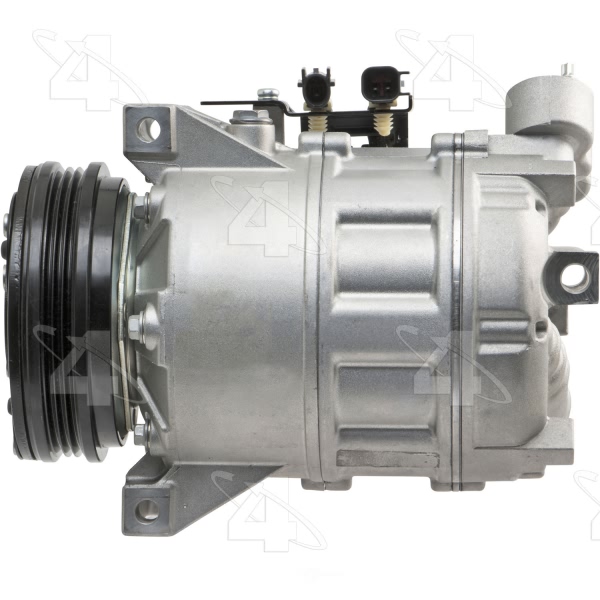

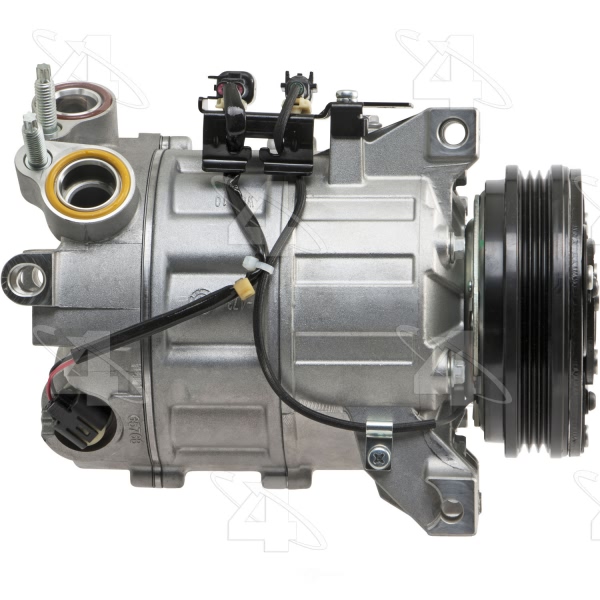

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |

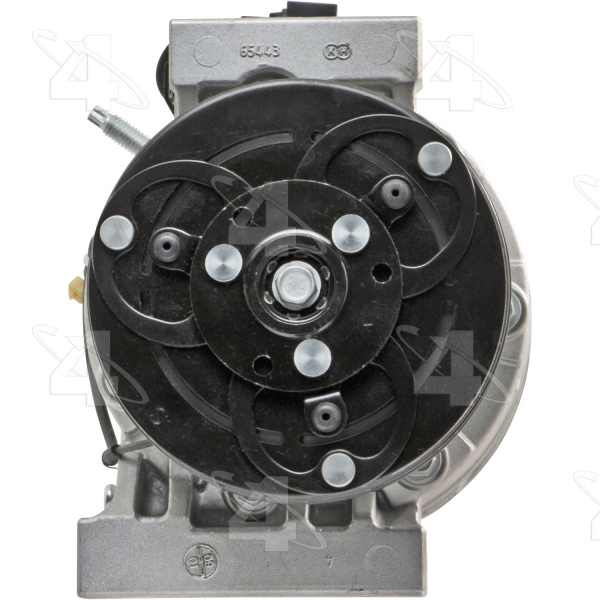

Clutch Maximum Diameter | 4.42 |
Coil Clock Position | Lead Wire |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | DCS17E |
Distance From Clutch To Mounting Flange | 0.70 |

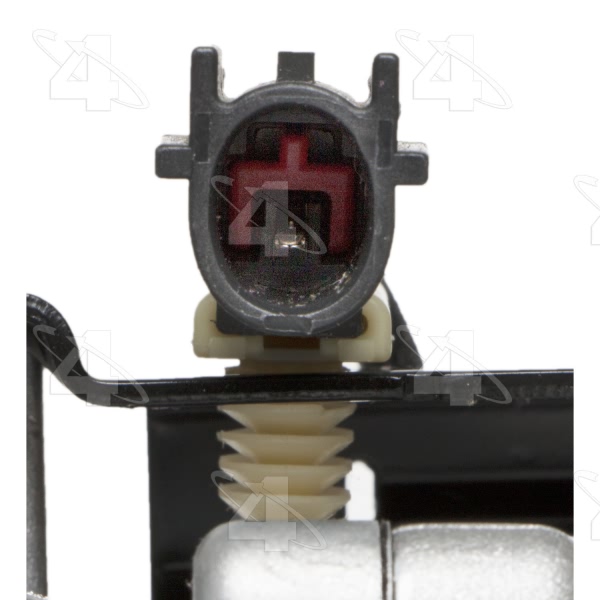

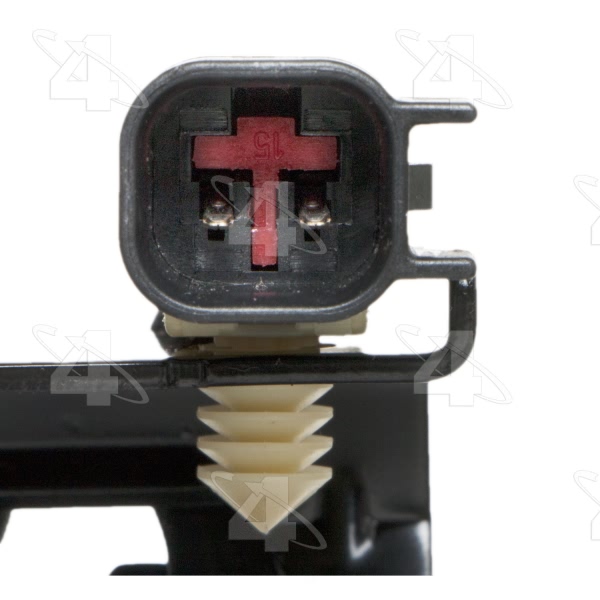

ECV Harness Connector | SE31F, 26900 Female / / SE23M, 26883 Male |
Mounting Hardware | Not Included |
Mounting Type | 3 Tangent One on Rear Head |
New or Reman | New |

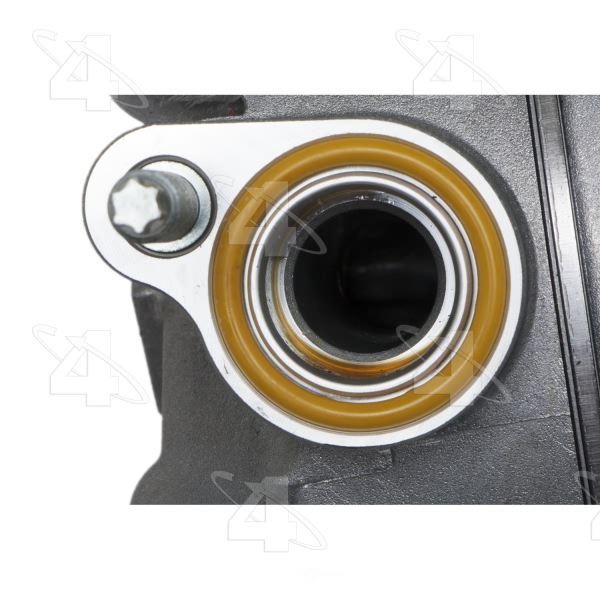

O-Ring A Number/Desc | 24632 |
O-Ring A Quantity | 1 |

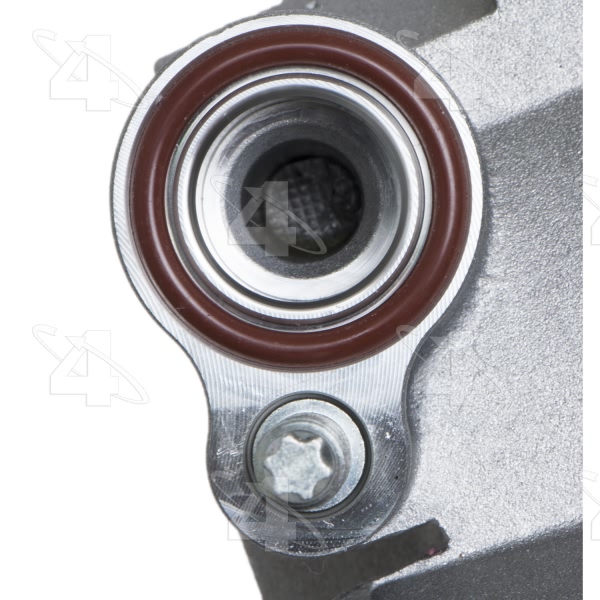

O-Ring B Number/Desc | [24615] / Green O-Ring |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 3 |
Pulley Lip Diameter | 4.42 |
Pulley Outside Diameter | 4.42 |
Pulley Ridge Diameter | 4.42 |
Refrigerant Type | R134a |
Terminal Type | Pin |
UPC | 096361986688 |
Year Make Model | Trim | Engine |
---|---|---|
2013-2016 Volvo S60 | All Trims | 5 Cyl 2.5L |
2016 Volvo S60 Cross Country | All Trims | All Engines |
2015-2016 Volvo V60 | All Trims | 5 Cyl 2.5L |
2015-2016 Volvo V60 Cross Country | All Trims | All Engines |
2015-2016 Volvo XC60 | All Trims | 5 Cyl 2.5L |
2016 Volvo XC70 | All Trims | 5 Cyl 2.5L |
