Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98592 |

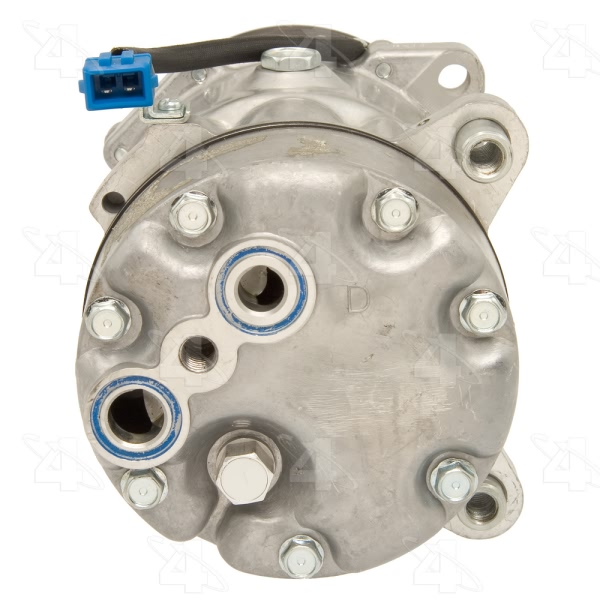

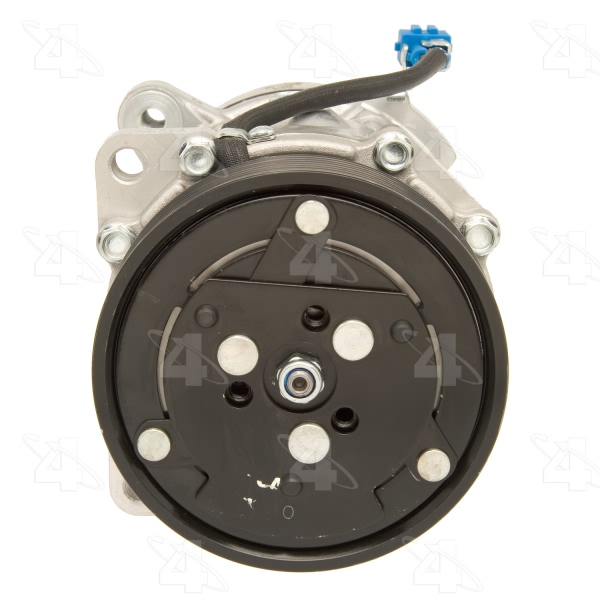

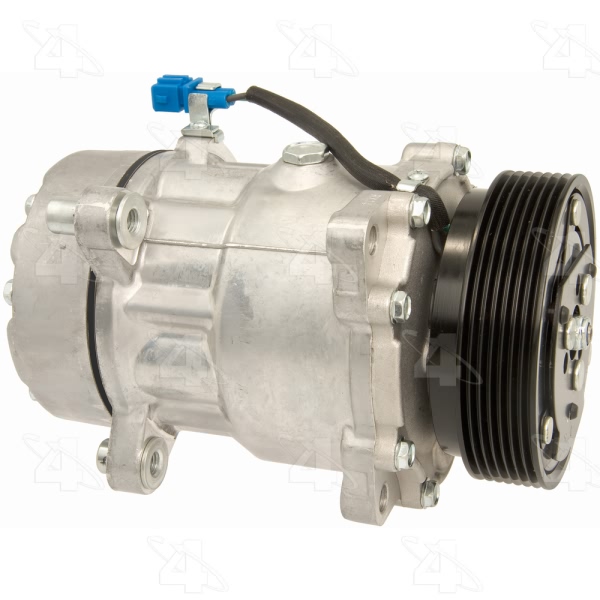

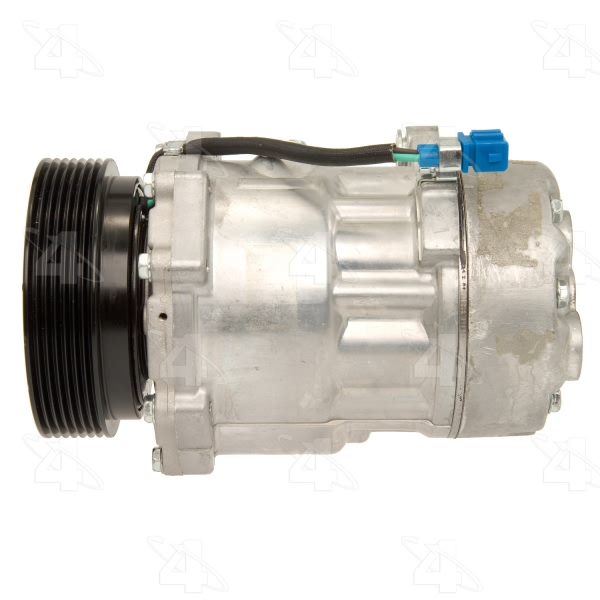

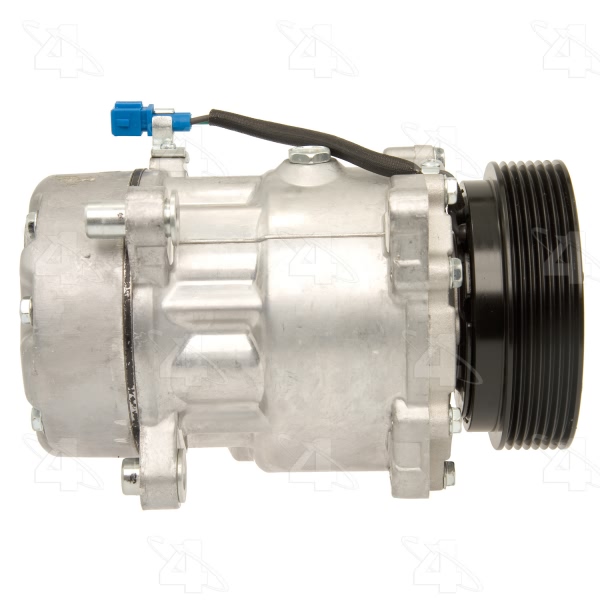

Part Description | A C Compressor With Clutch |
Belt Width IN | 0.9375 |
Belt Width MM | 23.8125 |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.625 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Comp Head Prt Config | Rear-Vert-Pad |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Head Type | VQR |
Compressor Type | SD7V16 |

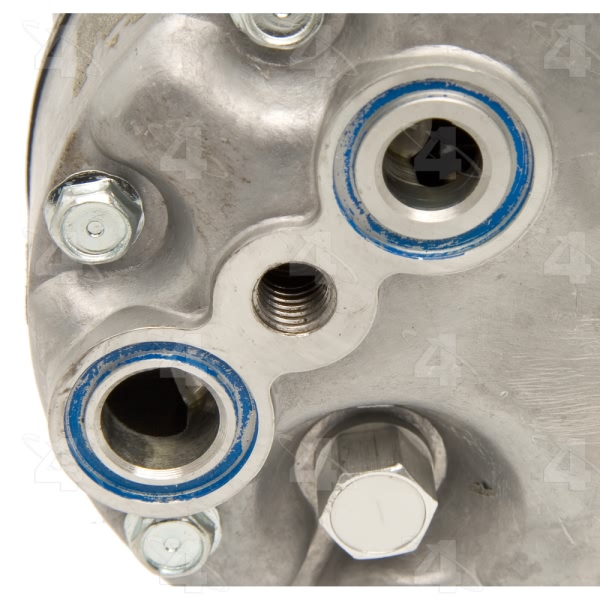

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.296875 |
Mount Distance MM | 33.020 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24626] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 117.475 |
Pulley Groove Quantity | 7 |
Pulley Lip Diameter | 4.625 |
Pulley Outside Diameter | 4.625 |
Pulley Ridge Diameter | 4.625 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

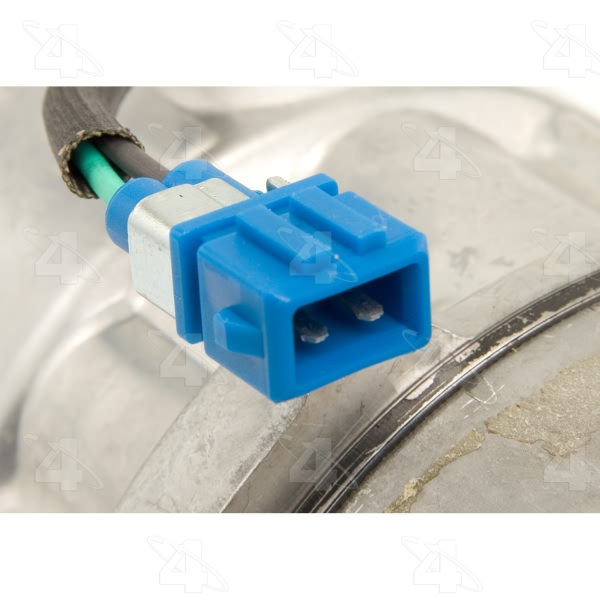

Terminal Type | Pin |
UPC | 096361985926 |
Year Make Model | Trim | Engine |
---|---|---|
2002-2008 Seat Alhambra | All Trims | All Engines |
1993-1994 Volkswagen Corrado | All Trims | All Engines |
1992-1994 Volkswagen Golf | All Trims | 4 Cyl 1.8L |
1995-1998 Volkswagen Golf | All Trims | 6 Cyl 2.8L |
1994-1999 Volkswagen Jetta | All Trims | 6 Cyl 2.8L |
1991-1992 Volkswagen Passat | All Trims | 4 Cyl 2.0L |
1993-1997 Volkswagen Passat | All Trims | 6 Cyl 2.8L |
