Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98590 |

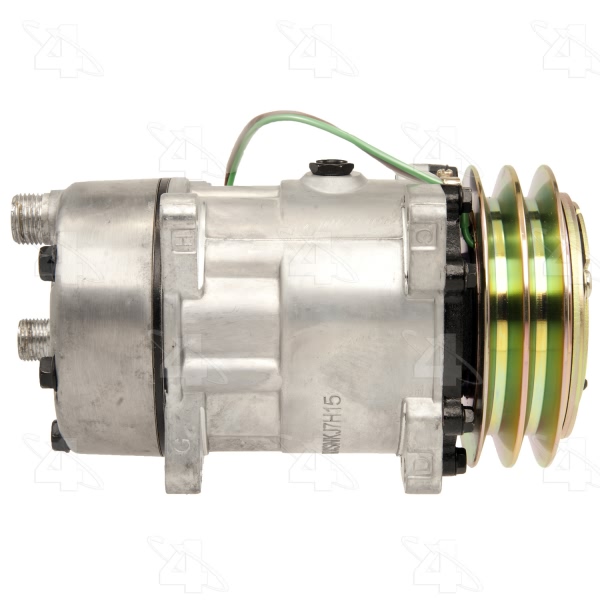

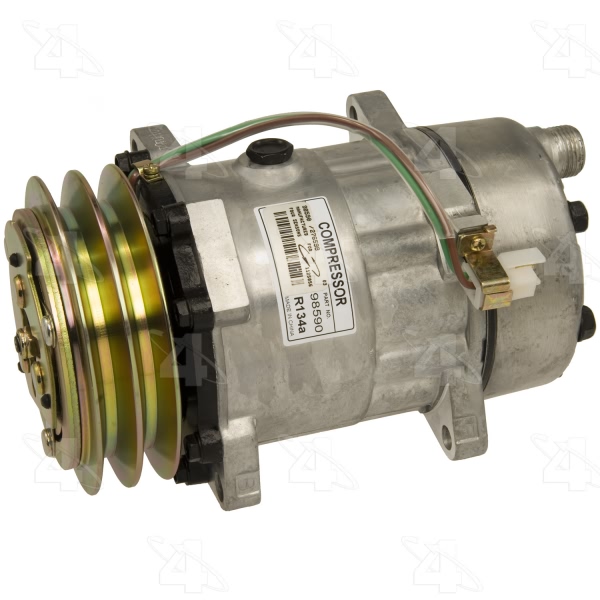

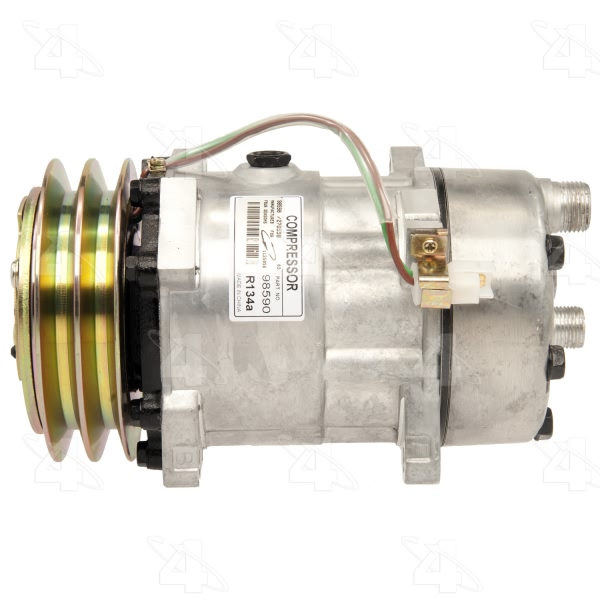

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.250 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Comp Head Prt Config | Rear-Horiz-O-Ring |
Compatible Refrigerant Oil Type | PAG 100 |
Compressor Head Type | KC |
Compressor Type | SD709 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.65625 |
Mount Distance B IN | 1.250 |
Mount Distance B MM | 31.750 |
Mount Distance MM | 16.510 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24610] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 133.350 |
Pulley Groove Quantity | 2 |
Pulley Lip Diameter | 5.250 |
Pulley Outside Diameter | 5.250 |
Pulley Ridge Diameter | 5.250 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Spade |
UPC | 096361985902 |
Year Make Model | Trim | Engine |
---|---|---|
1990-1991 Volkswagen Corrado | All Trims | All Engines |
1992 Volkswagen Corrado | All Trims | 4 Cyl 1.8L |
1990-1992 Volkswagen Golf | All Trims | 4 Cyl 2.0L |
1991-1992 Volkswagen Jetta | All Trims | 4 Cyl 2.0L |
1990 Volkswagen Passat | All Trims | All Engines |
1991-1992 Volkswagen Passat | All Trims | 4 Cyl 2.0L |
