Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98585 |

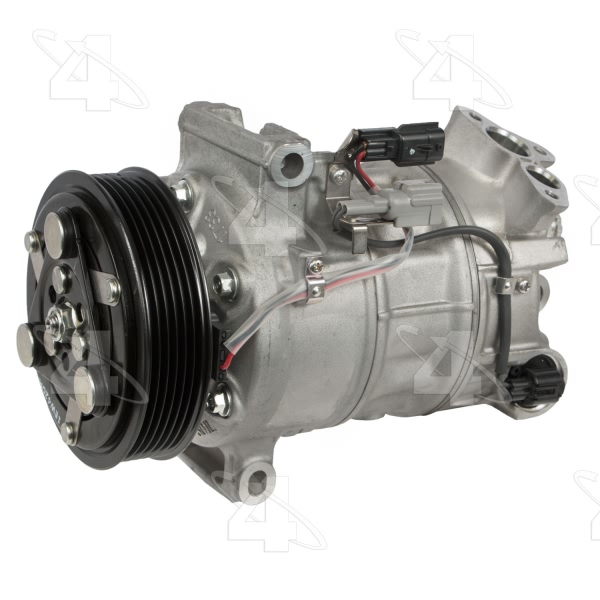

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.53125 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | PXC14 |
Discharge Port Type | O-Ring |
ECV Harness Connector | SE12F , 26896 Female / / SE12M, 26880 Male |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24659] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24602] / Green Round O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 115.062 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.53125 |
Pulley Outside Diameter | 4.53125 |
Pulley Ridge Diameter | 4.53125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361985858 |
w/ Diode | Yes |
Year Make Model | Trim | Engine |
---|---|---|
2013-2018 Nissan Sentra | All Trims | All Engines |
2018 Nissan Sentra | Nismo | All Engines |
2013-2017 Nissan Tsuru | All Trims | All Engines |
