Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98580 |

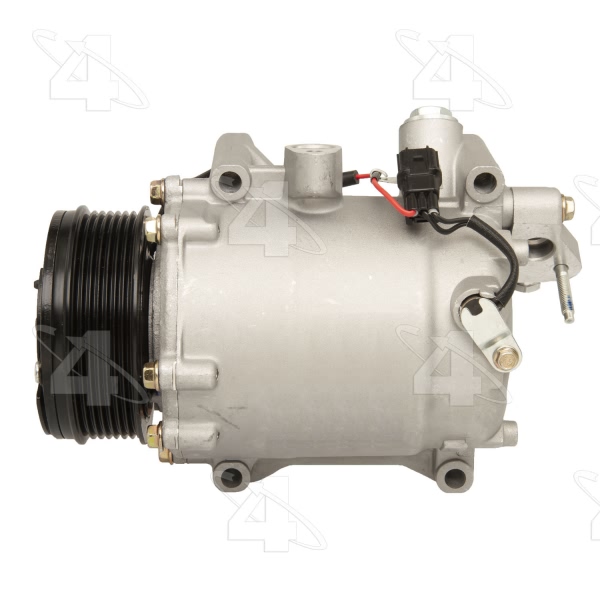

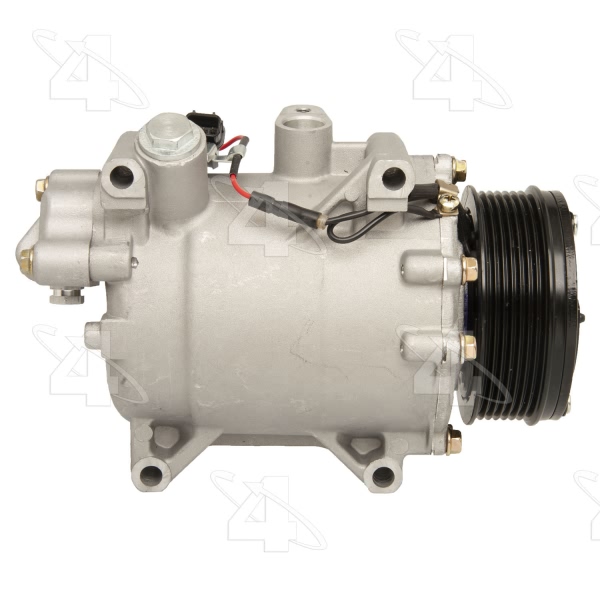

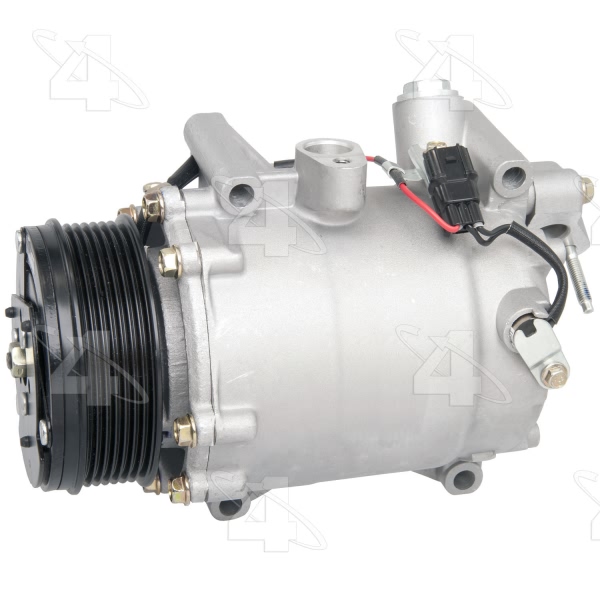

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.171875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | TRSE09 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.34375 |
Mount Distance MM | 34.290 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 105.842 |
Pulley Groove Quantity | 7 |
Pulley Lip Diameter | 4.171875 |
Pulley Outside Diameter | 4.171875 |
Pulley Ridge Diameter | 4.171875 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Switch Included | Heat Sensor |
Terminal Type | Pin |
UPC | 096361985803 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2012 Acura RDX | All Trims | All Engines |
2007-2011 Honda CR-V | All Trims | All Engines |
