Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98573 |

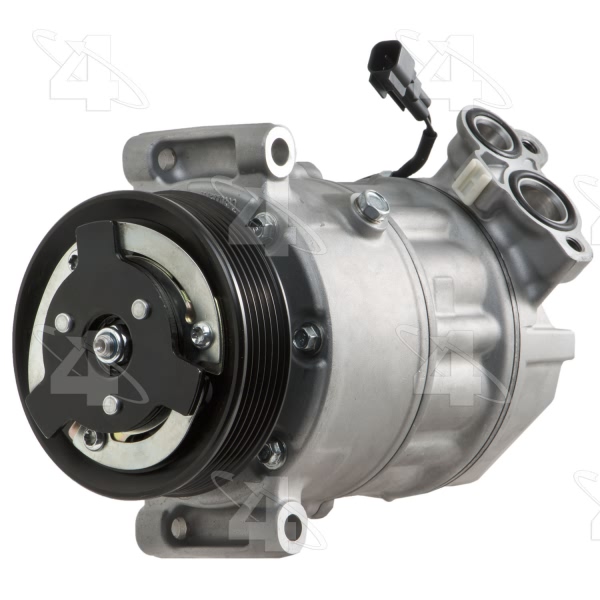

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.328125 |
Coil Clock Position | NR |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | PXE16 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.734375 |
ECV Harness Connector | SE25F, 26897 Female / / SE23M, 26883 Male |
Mount Distance MM | 18.796 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | 24632 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 214C70 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 100.025 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.328125 |
Pulley Outside Diameter | 4.328125 |
Pulley Ridge Diameter | 4.328125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361985735 |
Year Make Model | Trim | Engine |
---|---|---|
2010 Jaguar XF | All Trims | 8 Cyl 5.0L |
2011-2012 Jaguar XF | All Trims | All Engines |
2013 Jaguar XF | All Trims | 6 Cyl 3.0L |
2010-2012 Jaguar XFR | All Trims | All Engines |
2010-2012 Jaguar XJ | All Trims | All Engines |
2013-2014 Jaguar XJ | All Trims | 6 Cyl 3.0L |
2013-2017 Jaguar XJ | All Trims | 8 Cyl 5.0L |
2014-2017 Jaguar XJR | All Trims | All Engines |
2010-2013 Jaguar XK | All Trims | All Engines |
2010-2013 Jaguar XKR | All Trims | All Engines |
