Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98563 |

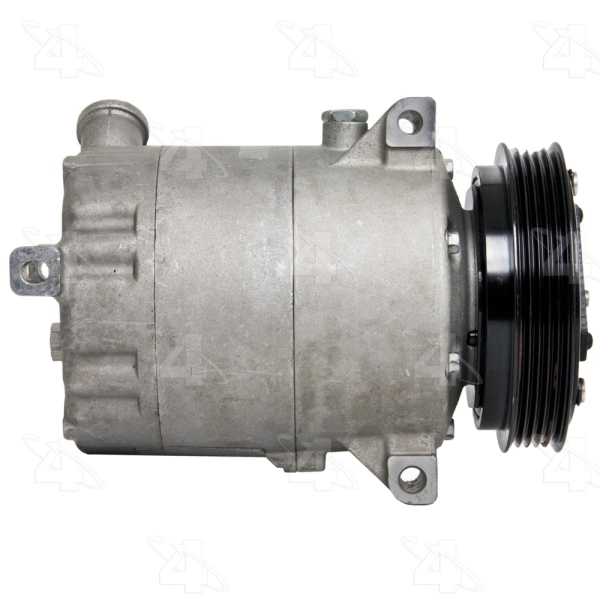

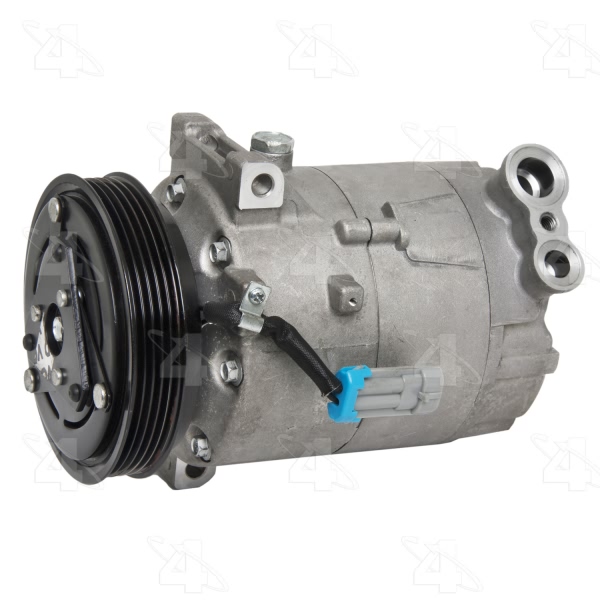

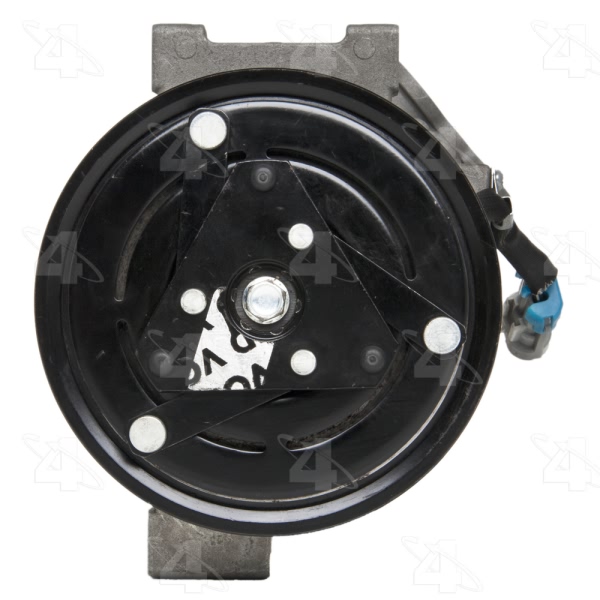

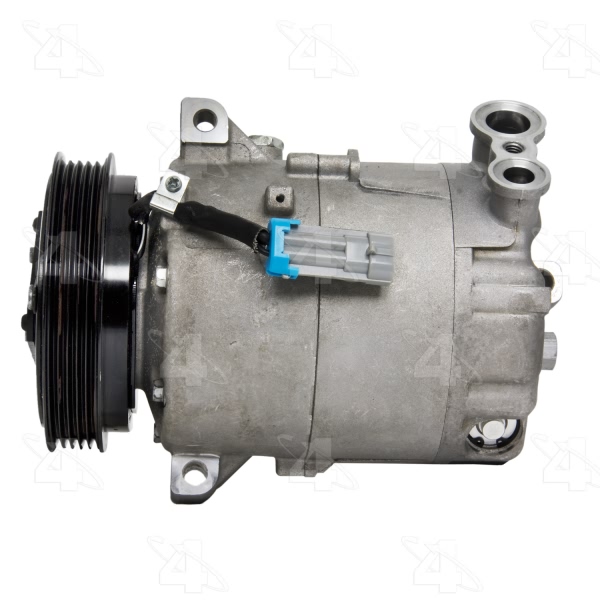

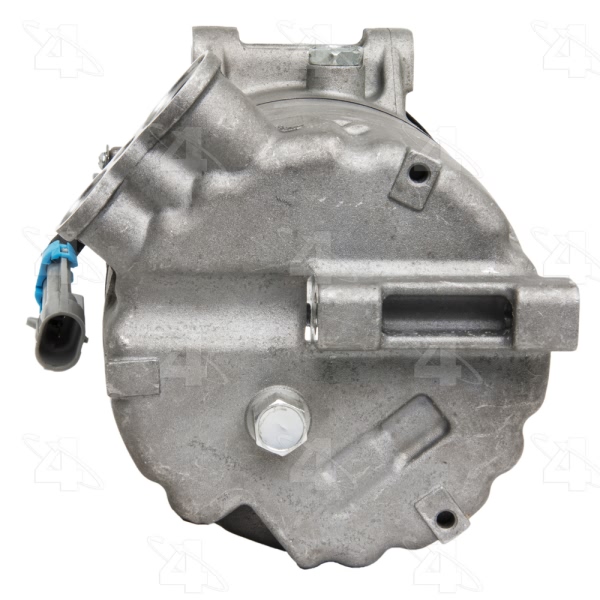

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.750 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | PXV16 |

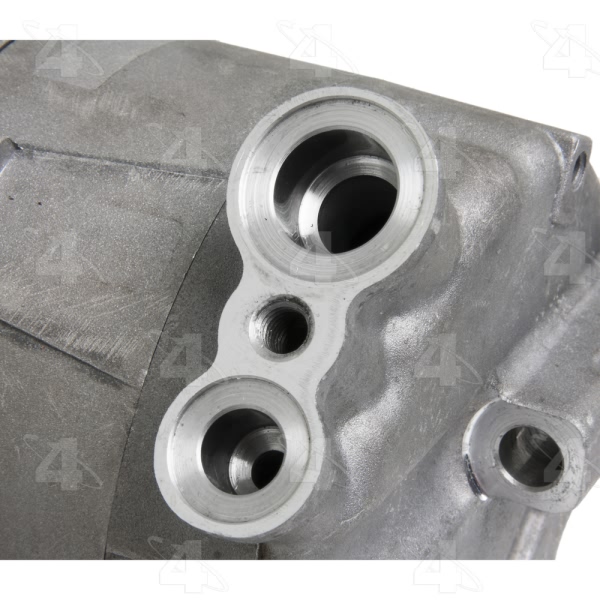

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.234375 |
Mount Distance MM | 31.496 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 120.650 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 4.750 |
Pulley Outside Diameter | 4.750 |
Pulley Ridge Diameter | 4.750 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

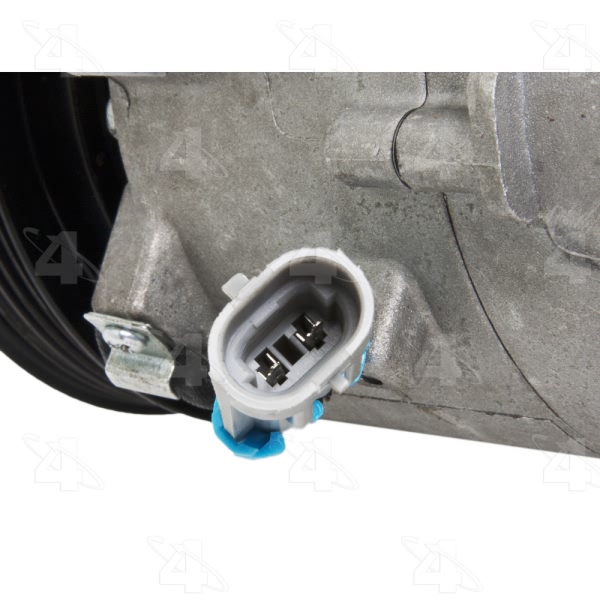

Terminal Type | 7mm Pin Connector |
UPC | 096361985636 |
Year Make Model | Trim | Engine |
---|---|---|
2006-2009 Pontiac Solstice | All Trims | All Engines |
2007-2010 Saturn Sky | All Trims | All Engines |
