Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98488 |

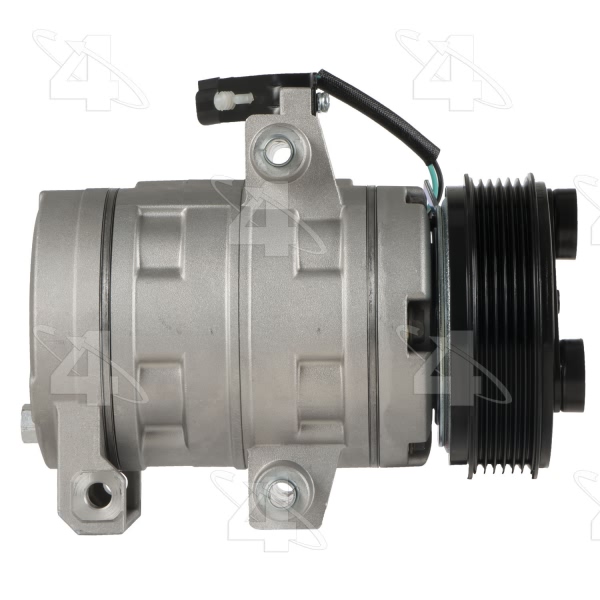

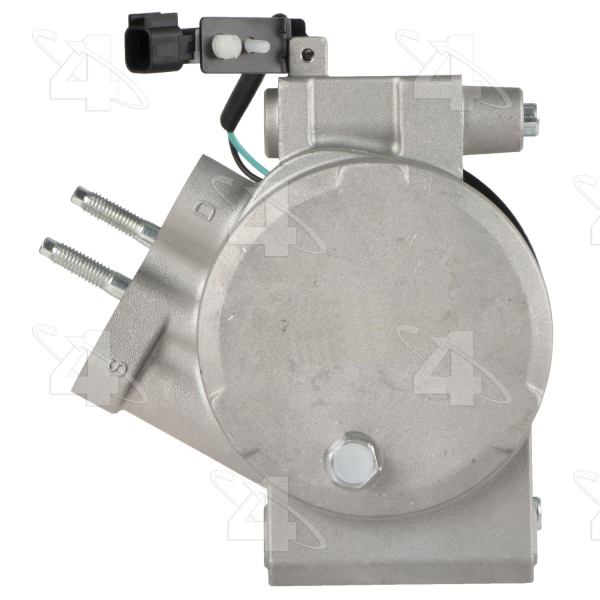

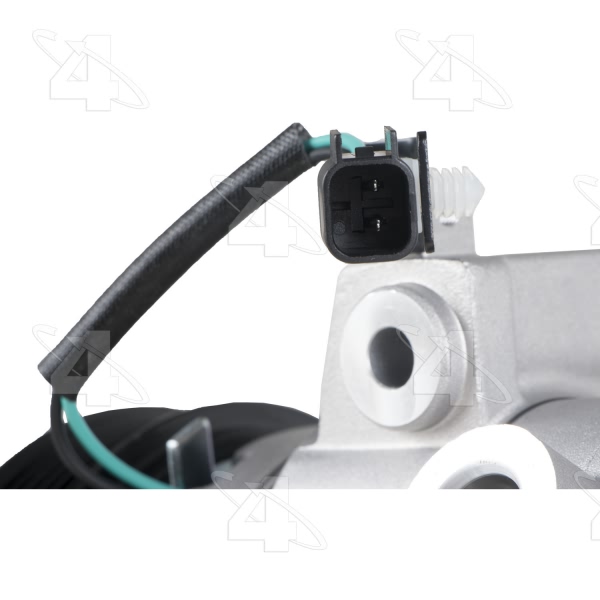

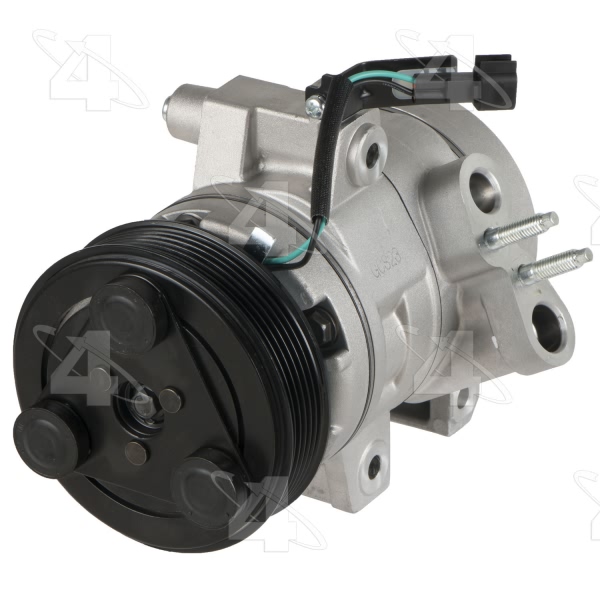

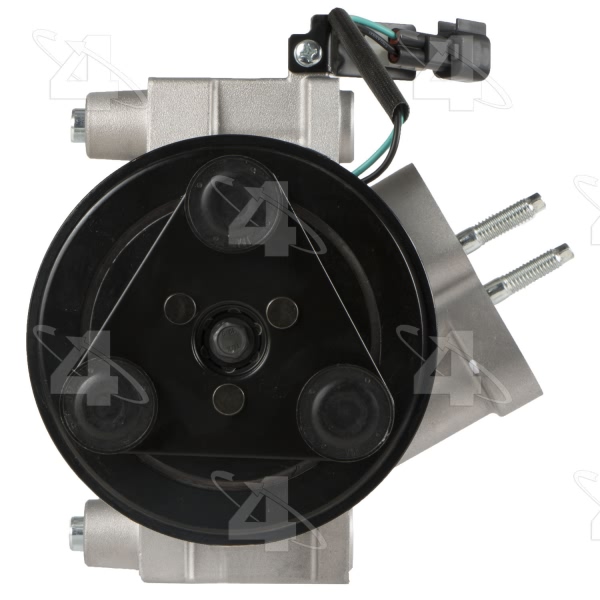

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.46875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | DKS17DS |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 3.03125 |
Mount Distance MM | 77.216 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24241] / Sealing Washer Kit |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24243] / Tear Drop Sealing Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 113.538 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.46875 |
Pulley Outside Diameter | 4.46875 |
Pulley Ridge Diameter | 4.46875 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361984882 |
Year Make Model | Trim | Engine |
---|---|---|
2008-2009 Ford Focus | All Trims | All Engines |
2010-2011 Ford Focus | All Trims | 4 Cyl 2.0L |
2010 Ford Transit Connect | All Trims | All Engines |
2011-2012 Ford Transit Connect | All Trims | 4 Cyl 2.0L |
2013 Ford Transit Connect | All Trims | All Engines |
