Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98483 |

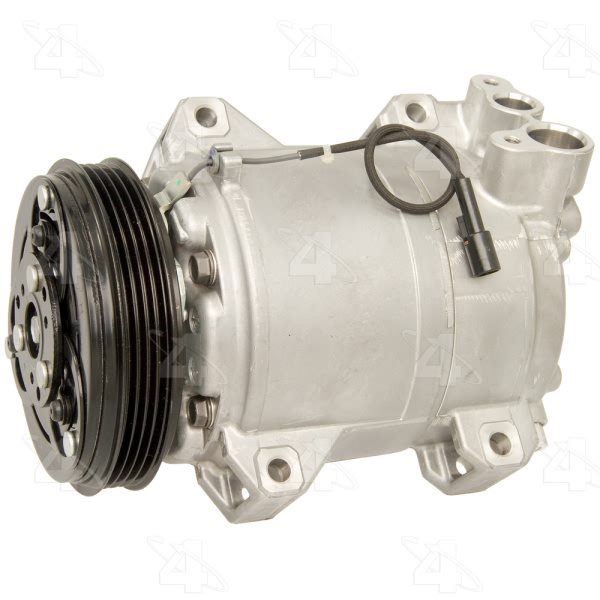

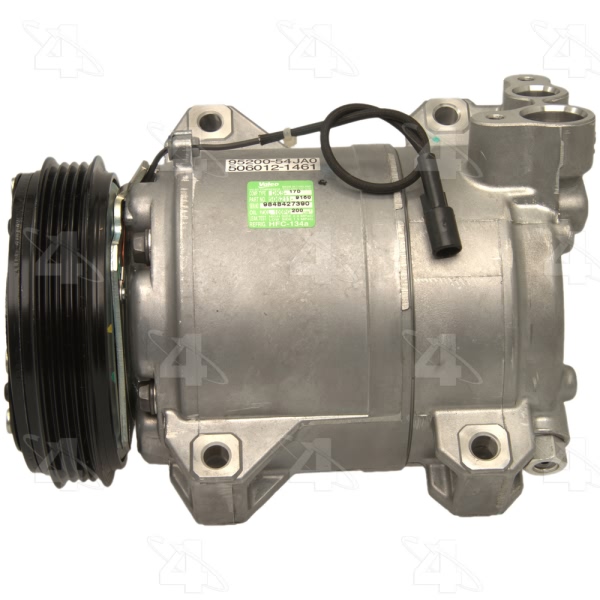

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.750 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | DKS17D |

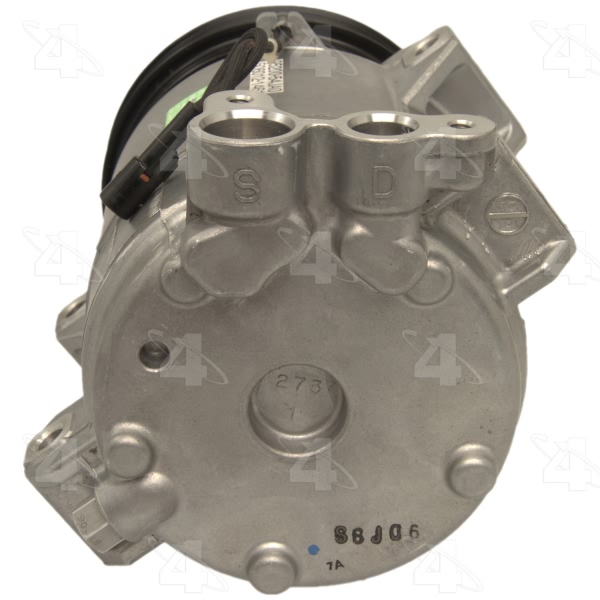

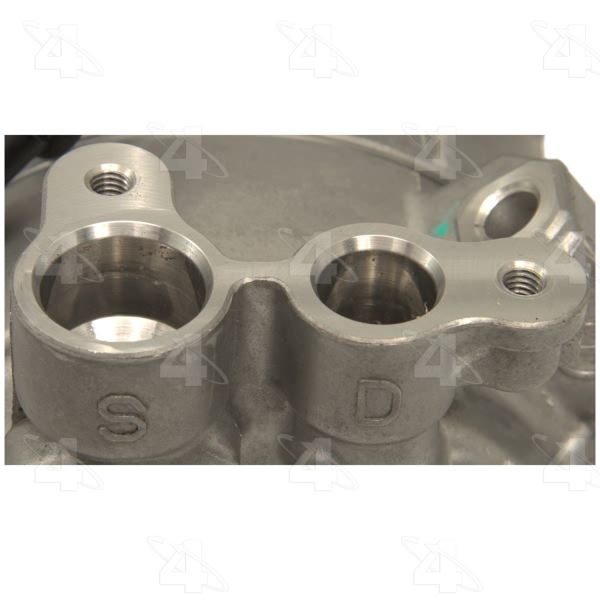

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.390625 |
Mount Distance MM | 35.306 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24602] / Green Round O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24659] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 120.650 |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 4.750 |
Pulley Outside Diameter | 4.750 |
Pulley Ridge Diameter | 4.750 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

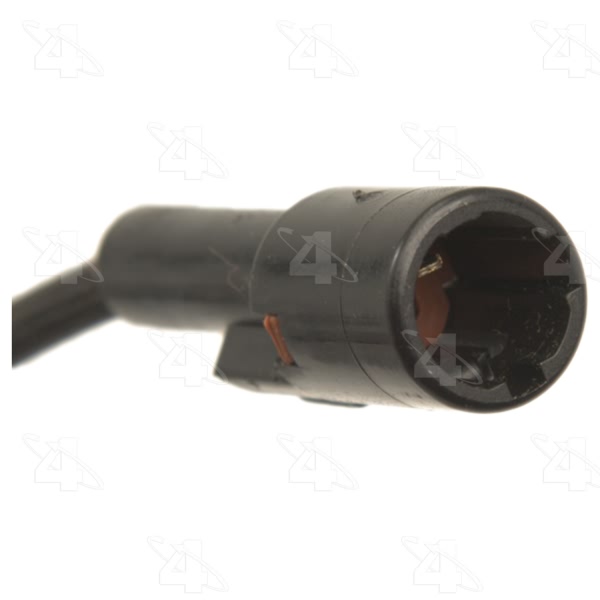

Terminal Type | Pin |
UPC | 096361984837 |
Year Make Model | Trim | Engine |
---|---|---|
2006 Suzuki Grand Vitara | All Trims | All Engines |
2003 Suzuki Vitara | All Trims | All Engines |
2004-2006 Suzuki XL-7 | All Trims | All Engines |
