Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98473 |

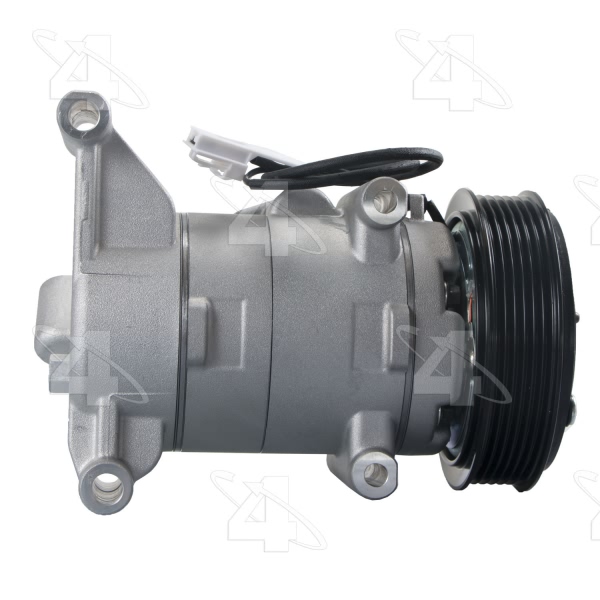

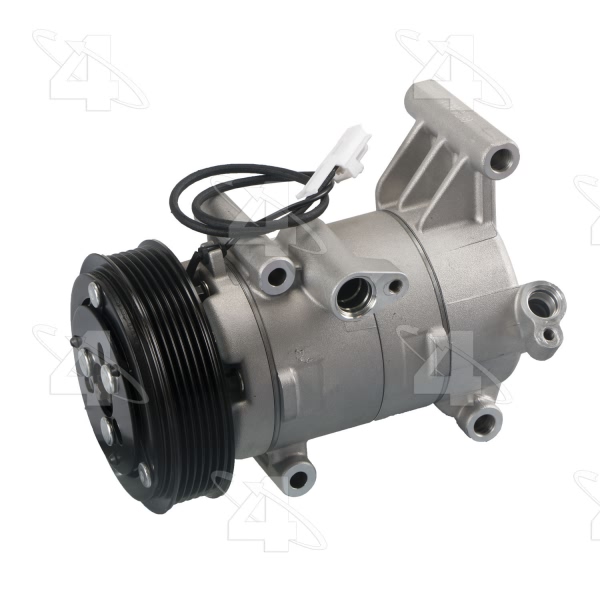

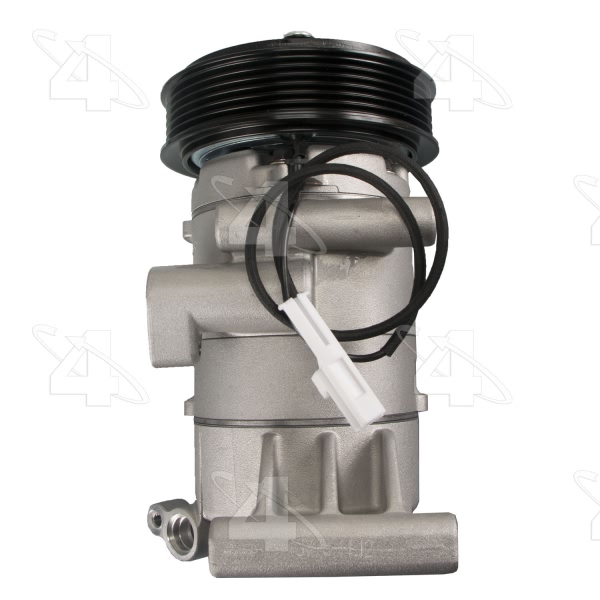

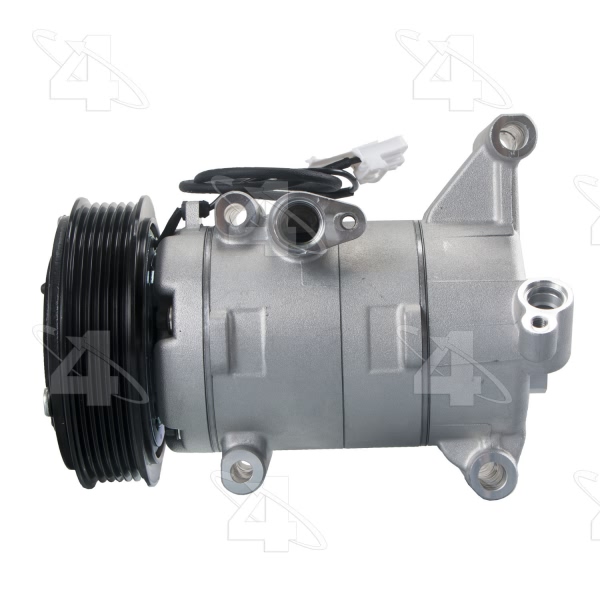

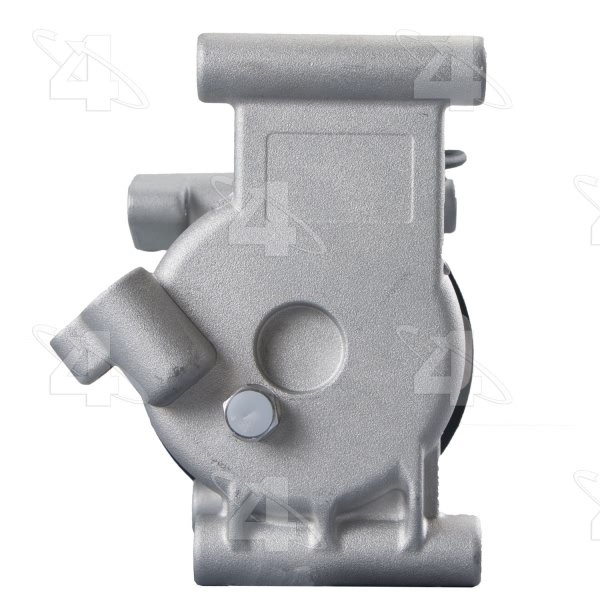

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.59375 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | V09A1AD4AP |

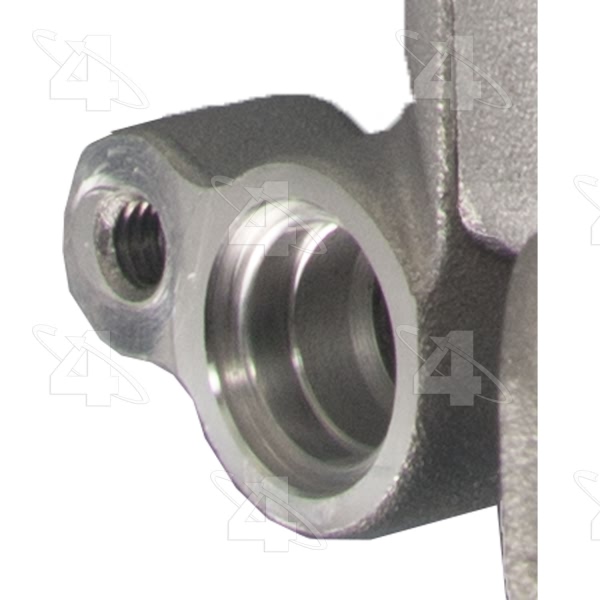

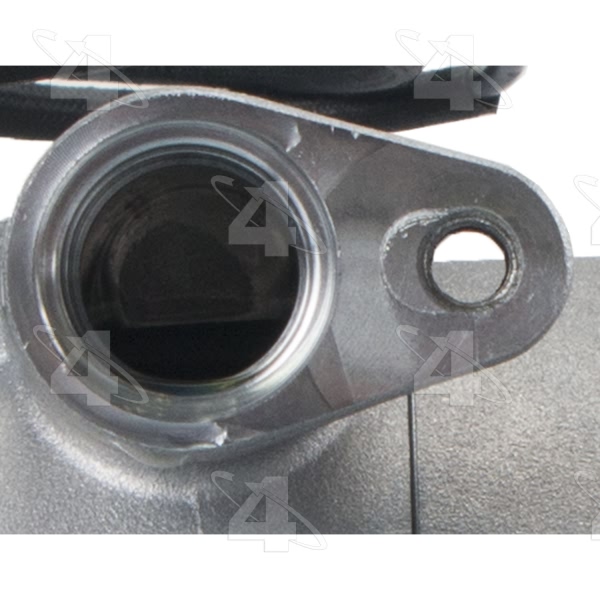

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.40625 |
Mount Distance MM | 36.000 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24610] / Green O-Ring |
O-Ring B Quantity | 1 |

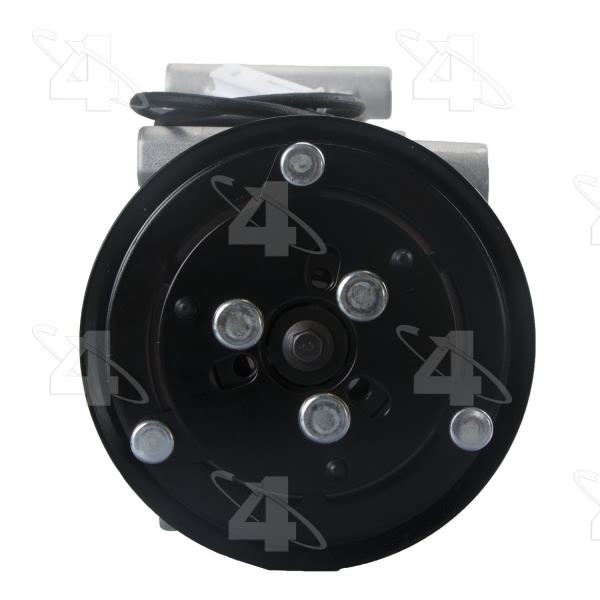

Pulley Belt Type | Serpentine |
Pulley Diameter MM | 116.840 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.59375 |
Pulley Outside Diameter | 4.59375 |
Pulley Ridge Diameter | 4.59375 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Switch Service Port | w/o Switch Port |

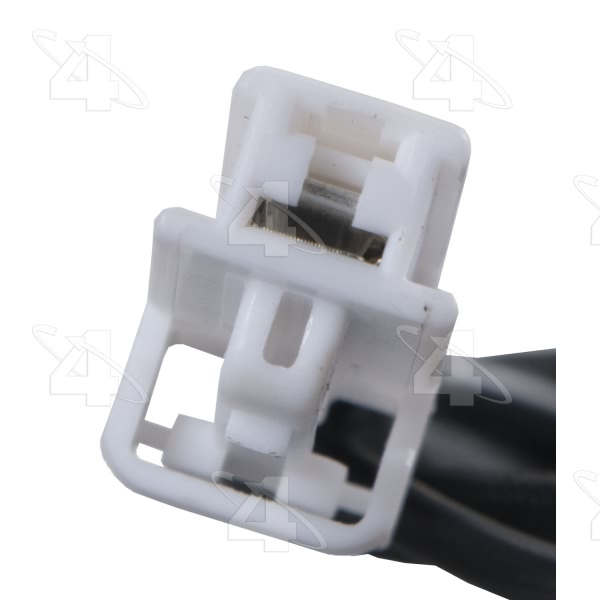

Terminal Type | Spade |
UPC | 096361984738 |
Year Make Model | Trim | Engine |
---|---|---|
2011-2013 Mazda 2 | All Trims | All Engines |
