Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98472 |

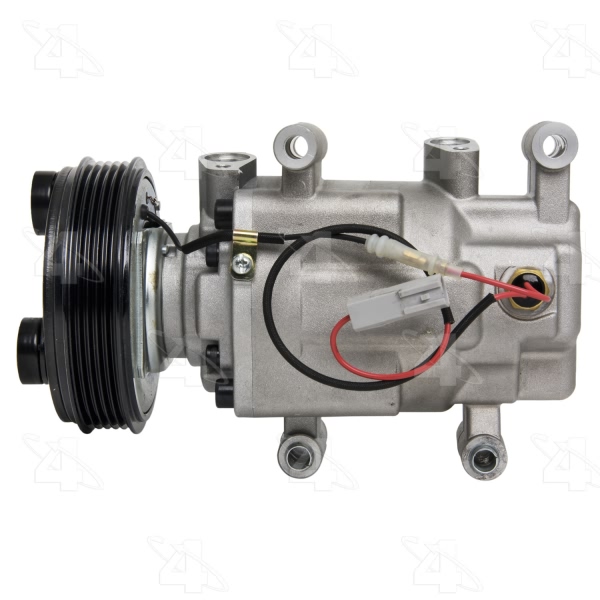

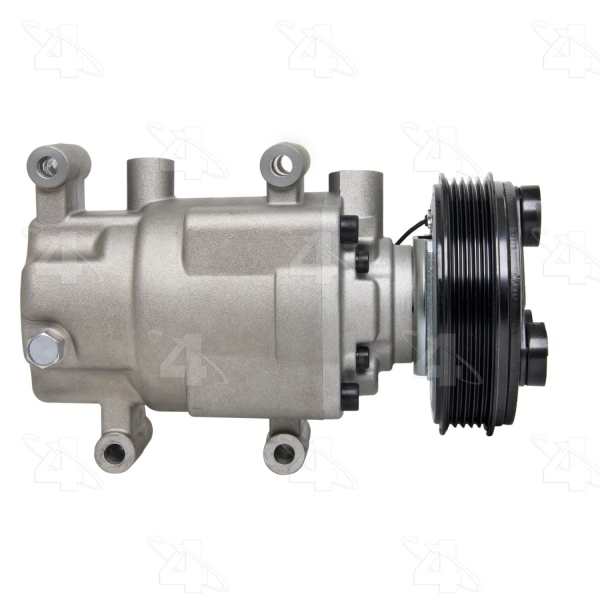

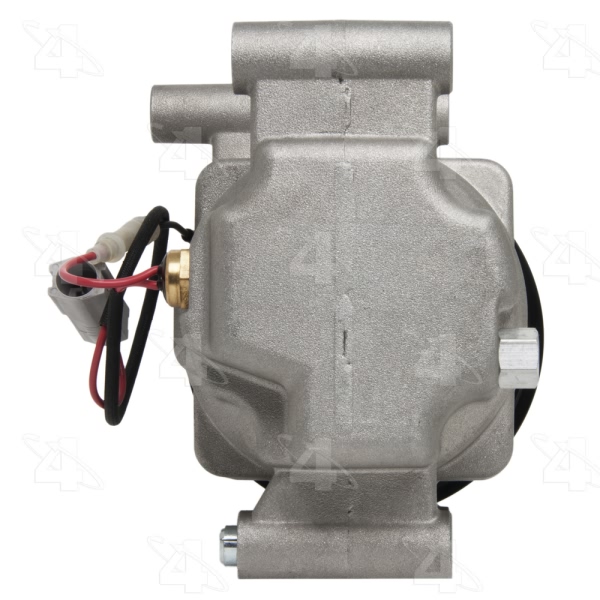

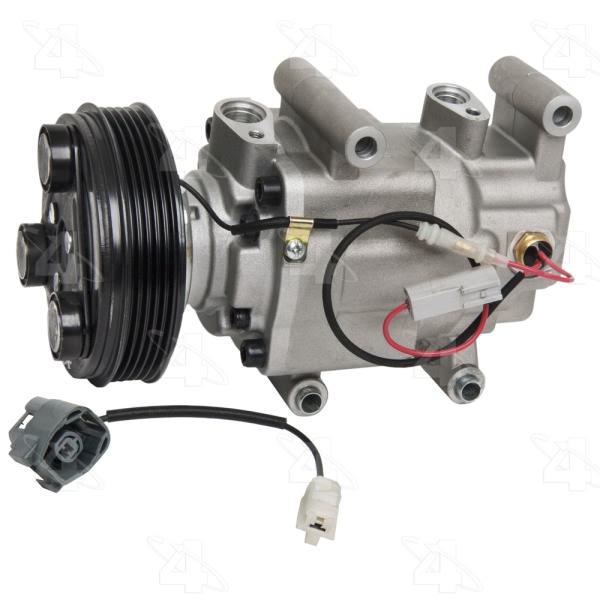

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.53125 |

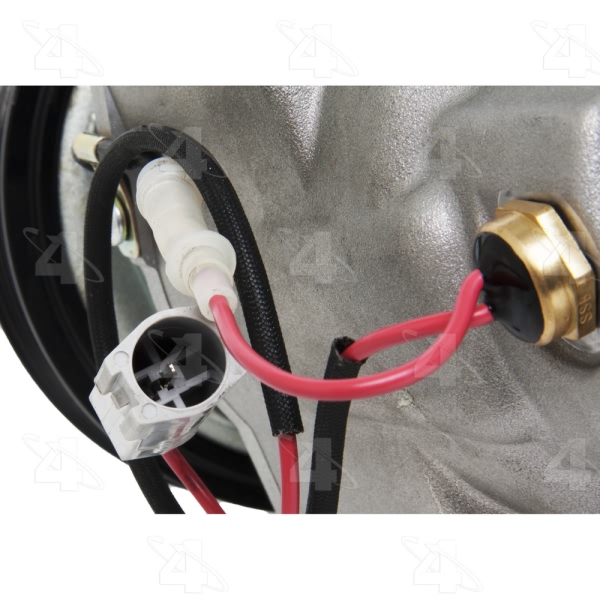

Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 100 |
Compressor Type | H12A1AH4DX |

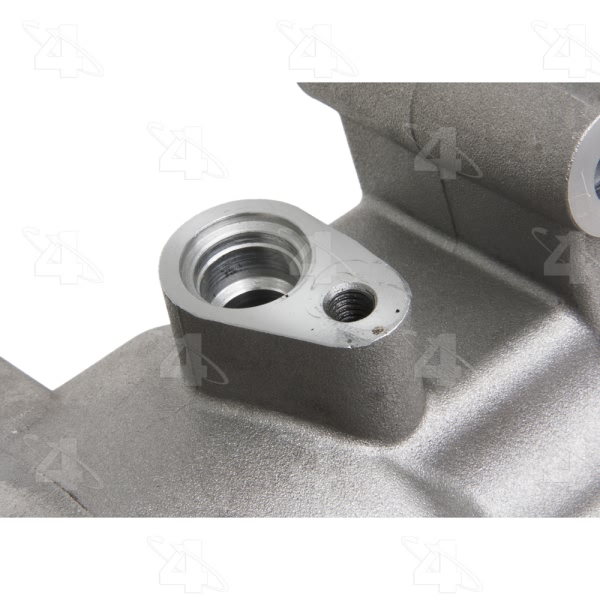

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.421875 |
Mount Distance MM | 36.068 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24610] / Green O-Ring |
O-Ring B Quantity | 1 |

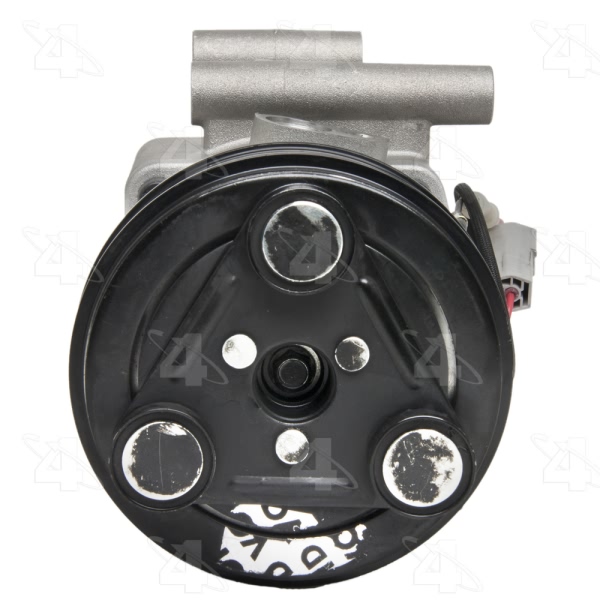

Pulley Belt Type | Serpentine |
Pulley Diameter MM | 115.062 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 4.53125 |
Pulley Outside Diameter | 4.53125 |
Pulley Ridge Diameter | 4.53125 |
Refrigerant Type | R134a |

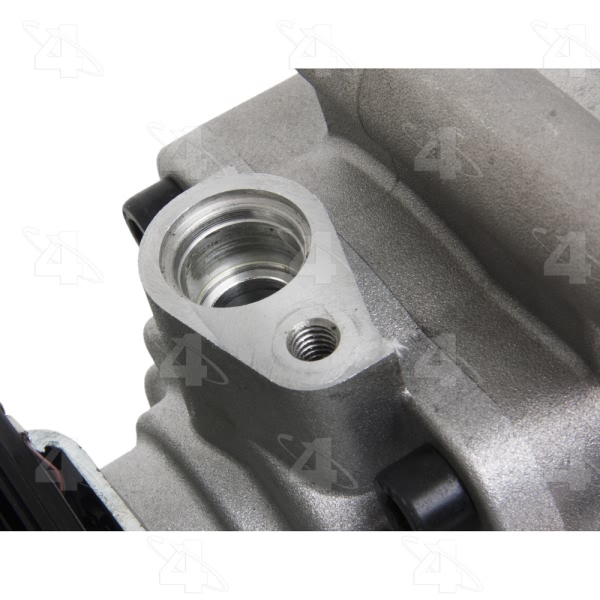

Suction Port Type | O-Ring |

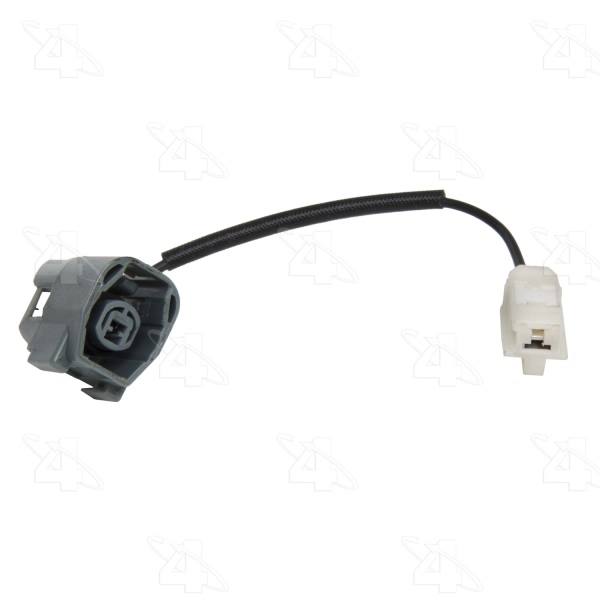

Terminal Type | Pin |
UPC | 096361984721 |
Year Make Model | Trim | Engine |
---|---|---|
2006 Mazda 3 | All Trims | All Engines |
2007 Mazda 3 | All Trims | 4 Cyl 2.0L |
2007 Mazda 3 | i | 4 Cyl 2.0L |
2007 Mazda 3 | All Trims | 4 Cyl 2.3L |
2007 Mazda 3 | S | 4 Cyl 2.3L |
2008 Mazda 3 | All Trims | All Engines |
2006-2008 Mazda 5 | All Trims | All Engines |
