Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98471 |

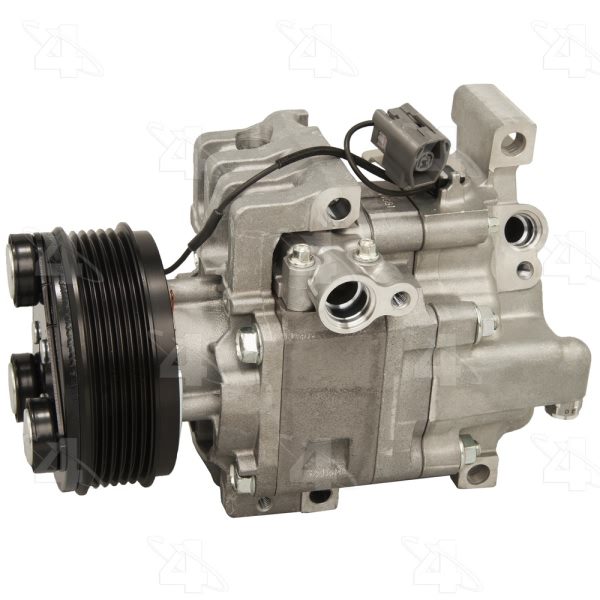

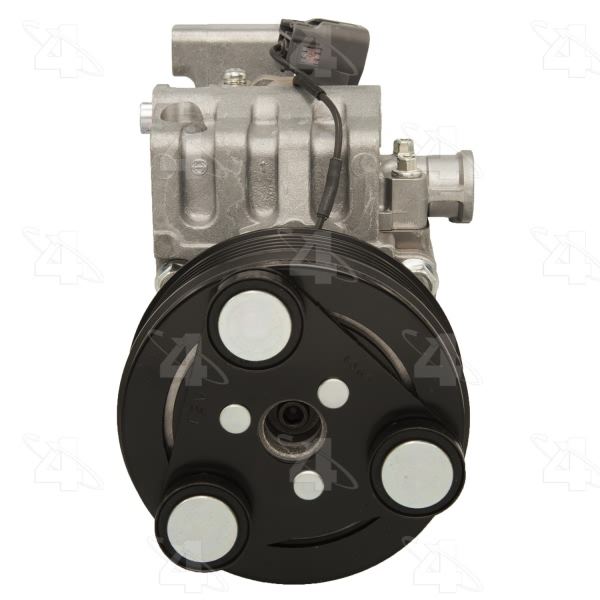

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 3.875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 100 |
Compressor Type | H12A1AL4CX |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.40625 |
Mount Distance MM | 35.814 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24610] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 98.425 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 3.875 |
Pulley Outside Diameter | 3.875 |
Pulley Ridge Diameter | 3.875 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361984714 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2008 Mazda CX-7 | All Trims | All Engines |
