Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98454 |

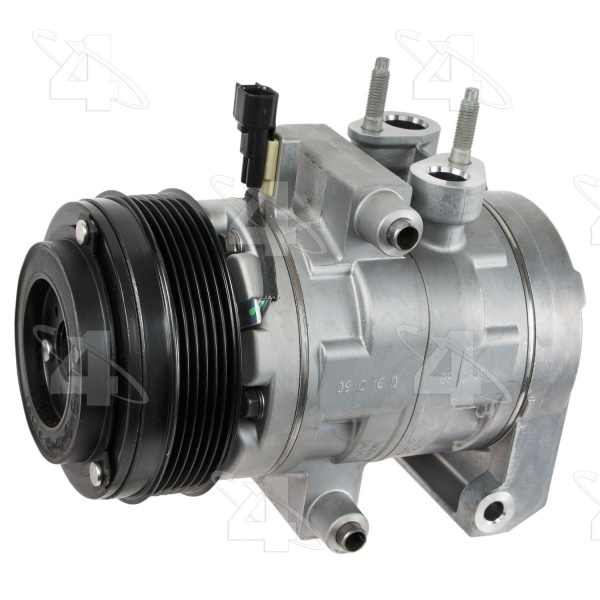

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.53125 |
Coil Clock Position | NR |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | DKS17DS |
Distance From Clutch To Mounting Flange | 1.953125 |
Mount Distance MM | 49.530 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24241] / Sealing Washer Kit |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24243] / Tear Drop Sealing Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 115.062 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.53125 |
Pulley Outside Diameter | 4.53125 |
Pulley Ridge Diameter | 4.53125 |
Refrigerant Type | R134a |
Terminal Type | Pin |
UPC | 096361984547 |
w/ Diode | No |
Year Make Model | Trim | Engine |
---|---|---|
2010 Ford Mustang | All Trims | 8 Cyl 4.6L |
