Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98449 |

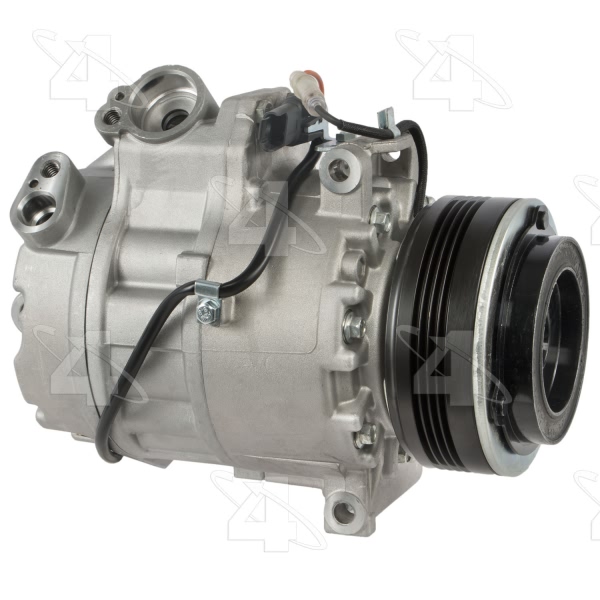

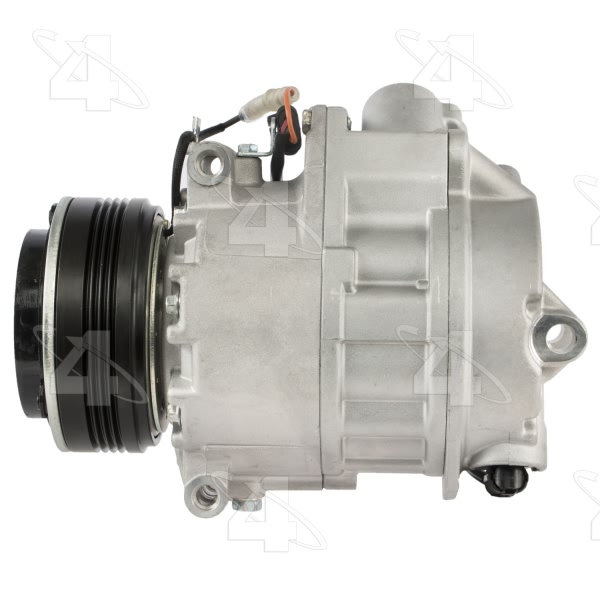

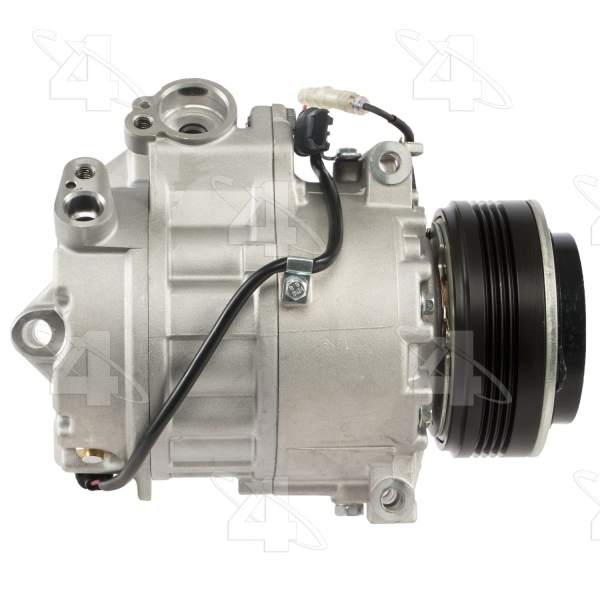

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.328125 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | CSE17C |

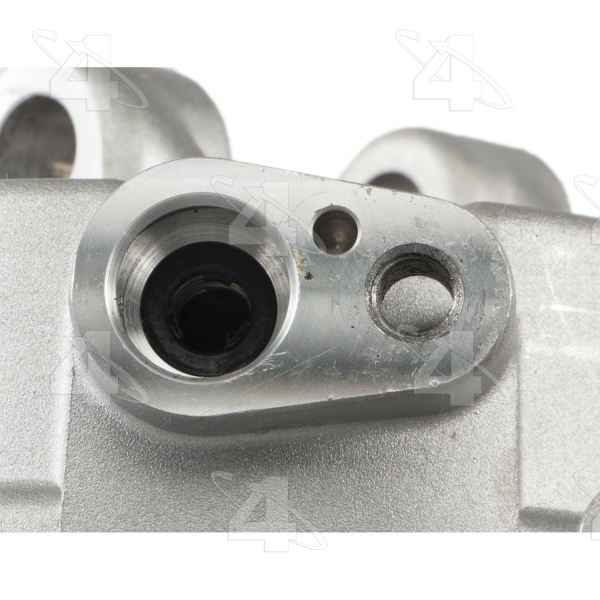

Discharge Port Type | O-Ring |
ECV Harness Connector | Not Required Plug N Play, Female / / Not Required Plug N Play, Male |
Mounting Hardware | Not Included |

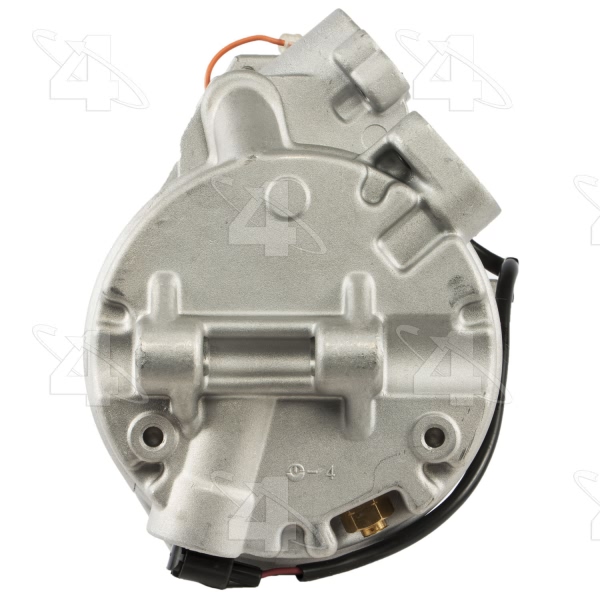

Mounting Type | 3 Tangent One on Rear Head |
New or Reman | New |
O-Ring A Number/Desc | [24659] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24635] / Green Round O-Ring |
O-Ring B Quantity | 1 |

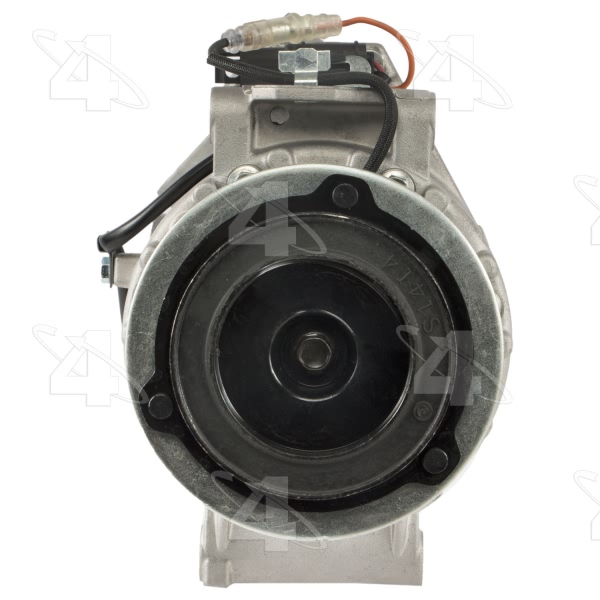

Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 4.328125 |
Pulley Outside Diameter | 4.328125 |
Pulley Ridge Diameter | 4.328125 |
Refrigerant Type | R134a |

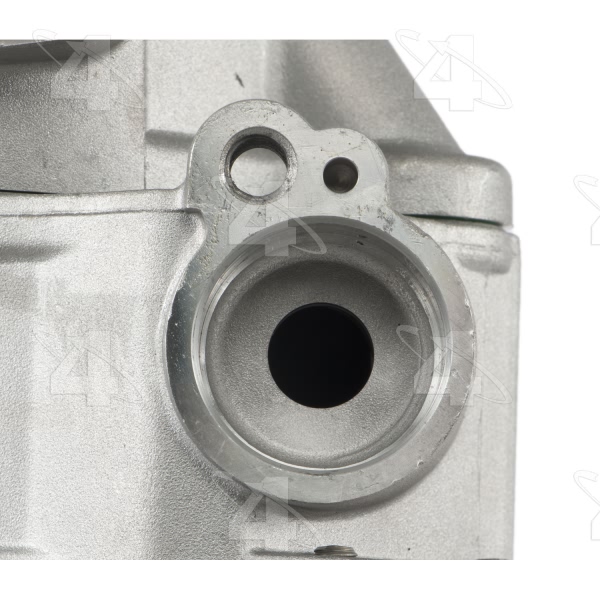

Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361984493 |
Year Make Model | Trim | Engine |
---|---|---|
2009-2012 BMW X5 | All Trims | 6 Cyl 3.0L |
2013 BMW X5 | xDrive35d | 6 Cyl 3.0L |
