Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98448 |

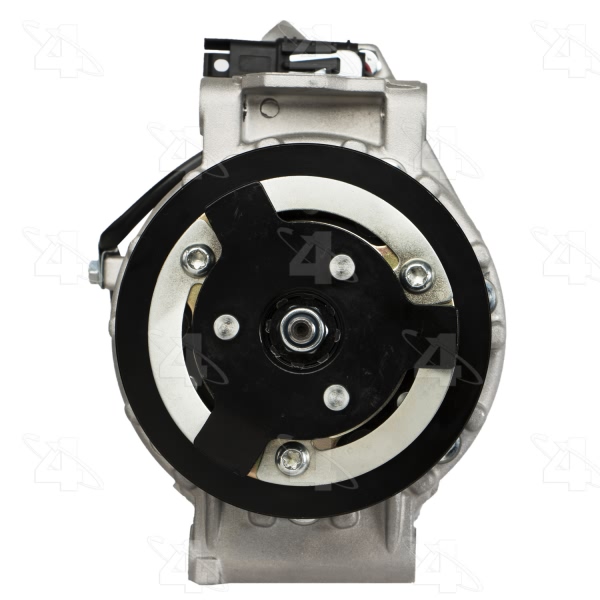

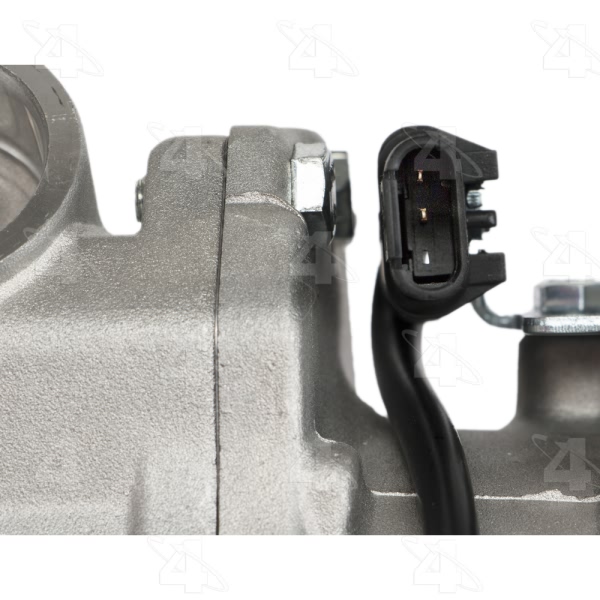

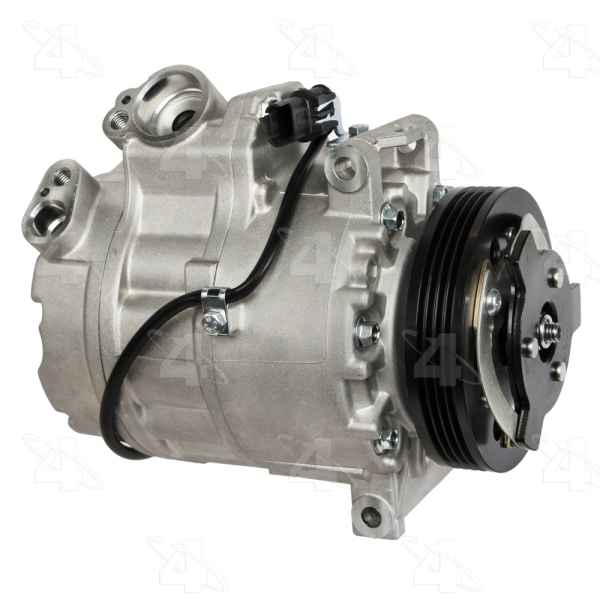

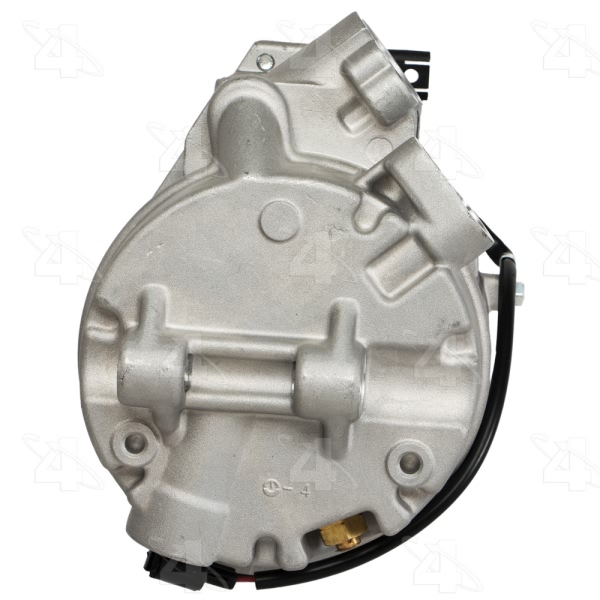

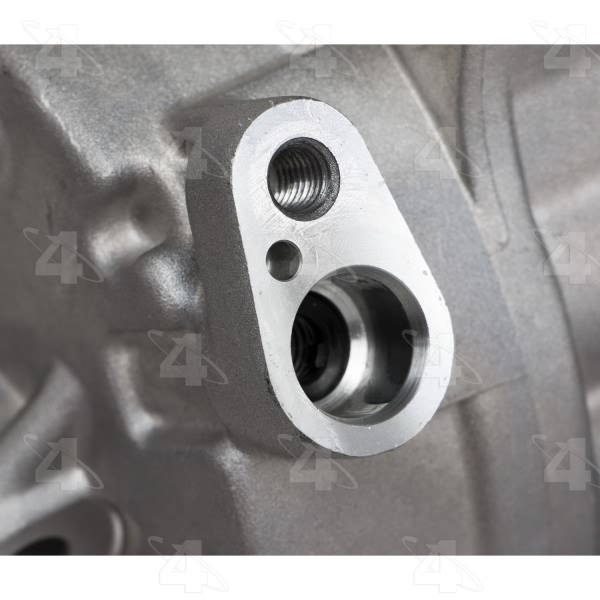

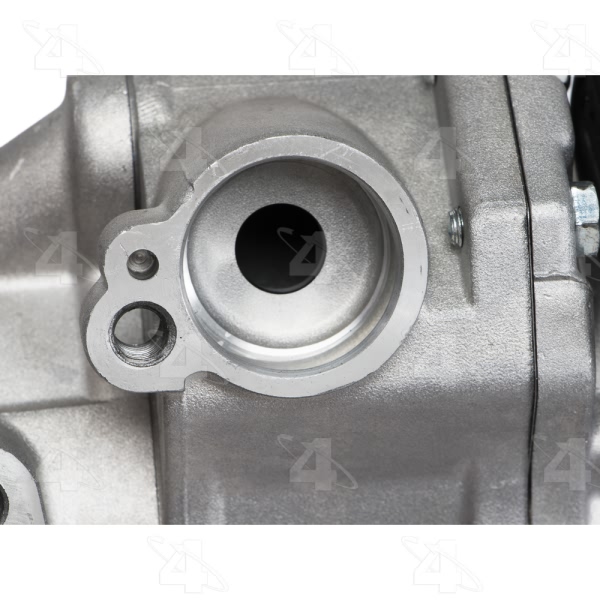

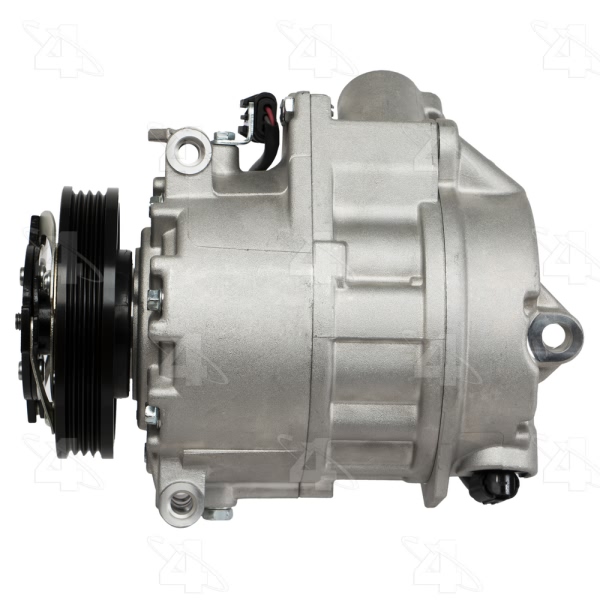

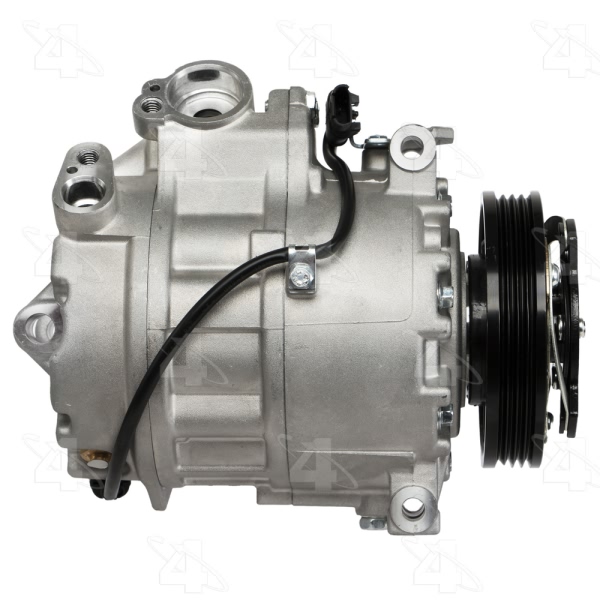

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.3125 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | CSE717 |
Distance From Clutch To Mounting Flange | 0.953125 |
ECV Harness Connector | SE31F, 26900 Female / / SE22M, 26882 Male |
Mount Distance MM | 24.384 |
Mounting Hardware | Not Included |
Mounting Type | 3 Tangent One on Rear Head |
New or Reman | New |
O-Ring A Number/Desc | 24635 |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | 24659 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | 24683 |
O-Ring C Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 4.3125 |
Pulley Outside Diameter | 4.3125 |
Pulley Ridge Diameter | 4.3125 |
Refrigerant Type | R134a |
Terminal Type | Pin |
UPC | 096361984486 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2010 BMW X5 | All Trims | 8 Cyl 4.8L |
2010 BMW X5 | All Trims | 8 Cyl 4.4L |
2010 BMW X6 | All Trims | 8 Cyl 4.4L |
