Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98384 |

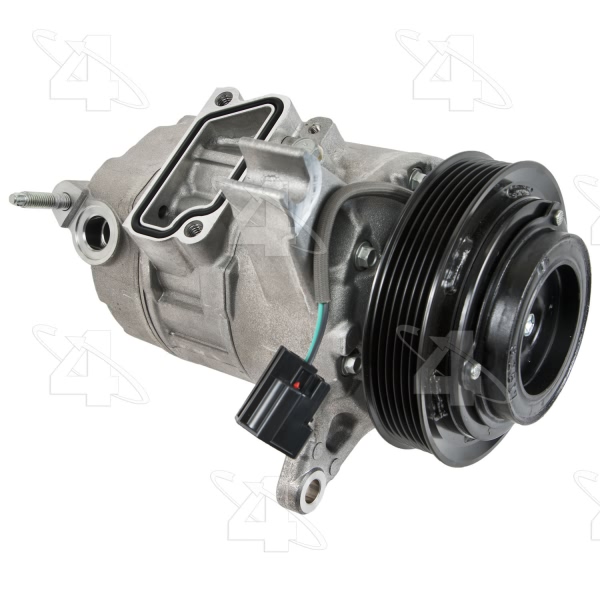

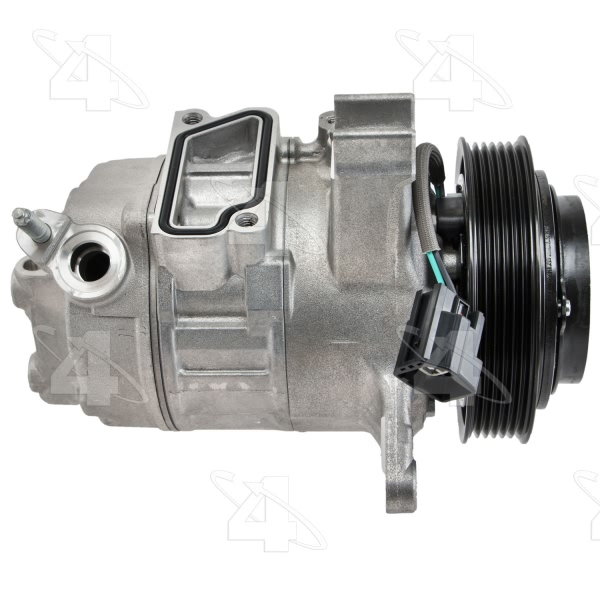

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.0625 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 7SBU16H |
Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.0625 |
Mount Distance MM | 26.924 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 128.575 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.0625 |
Pulley Outside Diameter | 5.0625 |
Pulley Ridge Diameter | 5.0625 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |

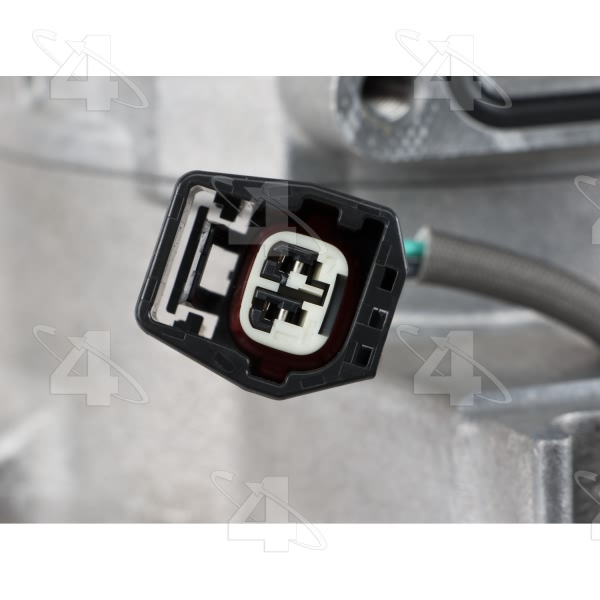

Terminal Type | Butt Connector |
UPC | 096361983847 |
Year Make Model | Trim | Engine |
---|---|---|
2006-2011 Buick Lucerne | All Trims | 8 Cyl 4.6L |
2006-2011 Cadillac DTS | All Trims | All Engines |
