Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98381 |

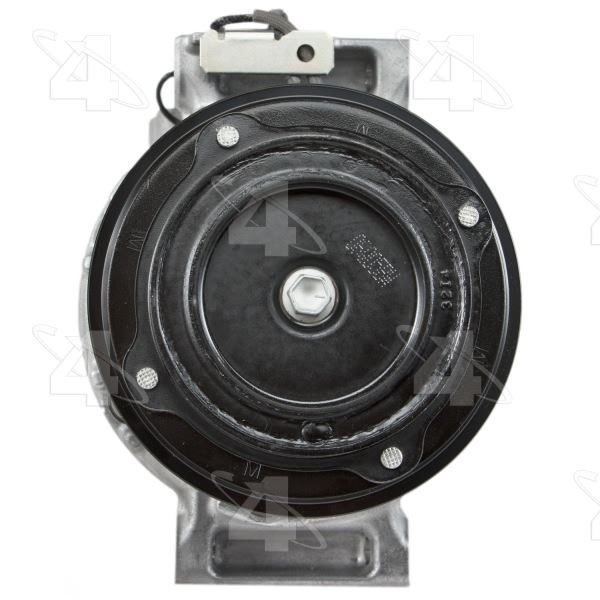

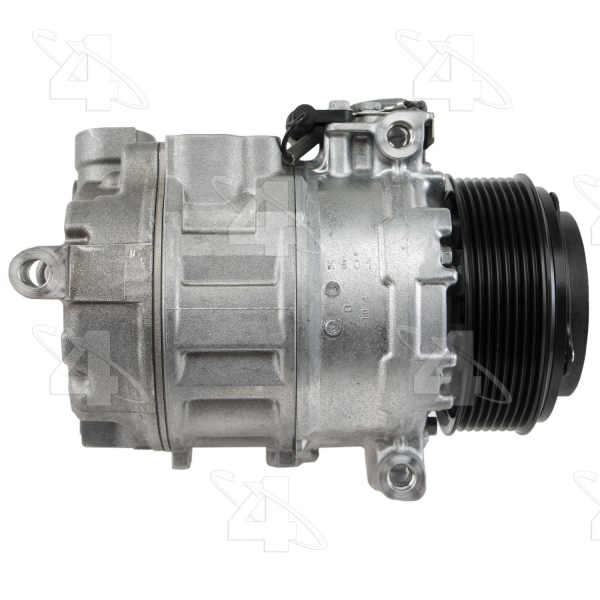

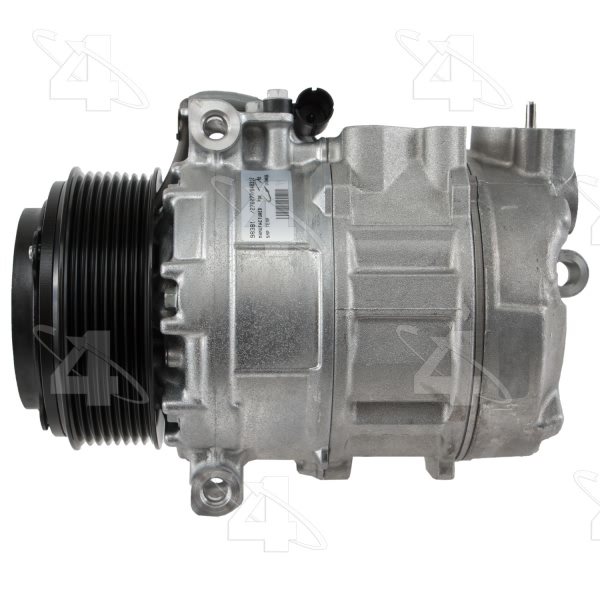

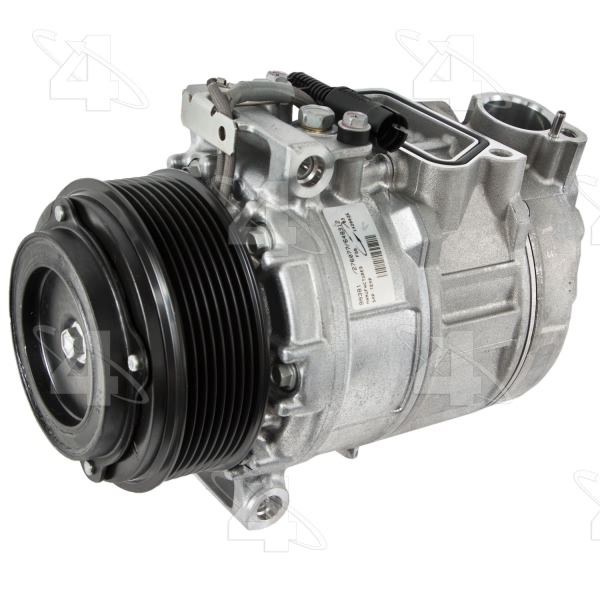

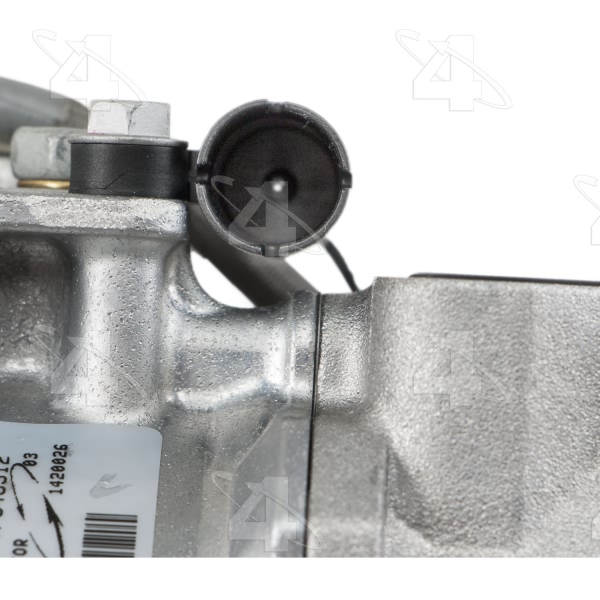

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.250 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 7SBU16C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.609375 |
Mount Distance MM | 15.494 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24670] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24635] / Green Round O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 107.950 |
Pulley Groove Quantity | 8 |
Pulley Lip Diameter | 4.250 |
Pulley Outside Diameter | 4.250 |
Pulley Ridge Diameter | 4.250 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361983816 |
Year Make Model | Trim | Engine |
---|---|---|
2004 Chrysler Crossfire | All Trims | All Engines |
2005-2006 Chrysler Crossfire | All Trims | 6 Cyl 3.2L |
2002-2004 Mercedes-Benz SLK230 | All Trims | 4 Cyl 2.3L |
2010 Mercedes-Benz SLK300 | All Trims | All Engines |
2002-2004 Mercedes-Benz SLK32 AMG | All Trims | 6 Cyl 3.2L |
2010-2012 Mercedes-Benz Sprinter | All Trims | All Engines |
2010-2012 Mercedes-Benz Sprinter 2500 | All Trims | All Engines |
2010-2012 Mercedes-Benz Sprinter 3500 | All Trims | All Engines |
