Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98376 |

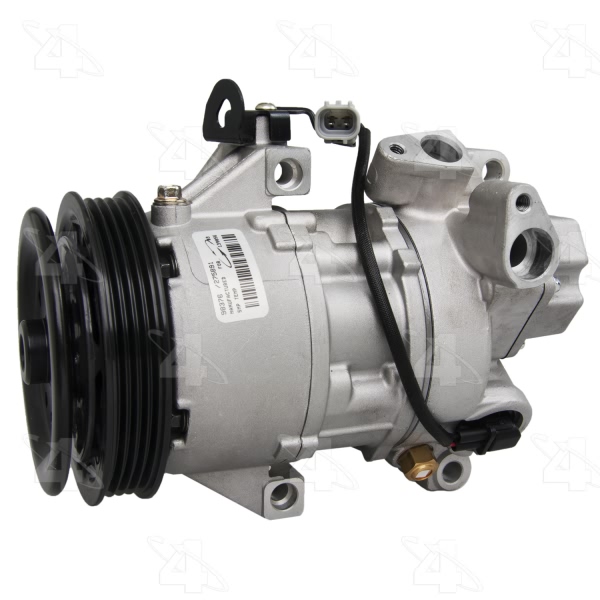

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.500 |
Coil Clock Position | NR |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 5SE09C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 2.000 |
ECV Harness Connector | SE10F, 26984 Female / / SE10M, 26878 Male |
Mount Distance MM | 50.800 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24661] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24681] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 114.300 |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 4.500 |
Pulley Outside Diameter | 4.500 |
Pulley Ridge Diameter | 4.500 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361983762 |
Year Make Model | Trim | Engine |
---|---|---|
2004-2006 Scion xA | All Trims | All Engines |
2004-2006 Scion xB | All Trims | All Engines |
