Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98358 |
Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.3125 |
Coil Clock Position | NR |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 7SEU17C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.90625 |

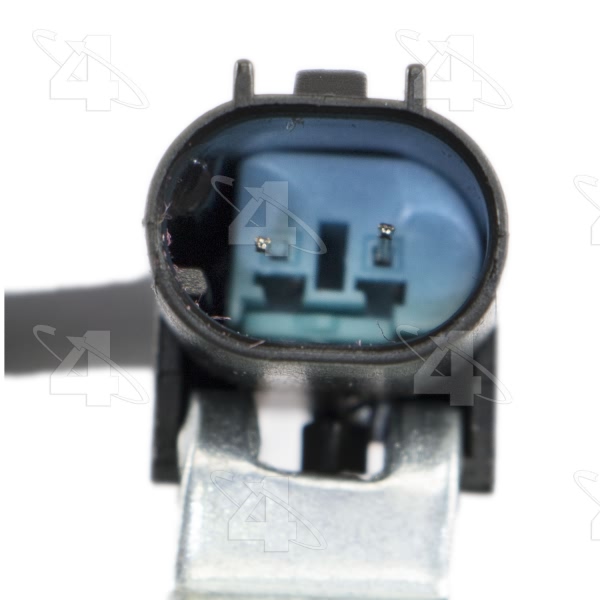

ECV Harness Connector | SE05F, 26892 Female / / SE22M, 26882 Male |
Mount Distance MM | 23.114 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |

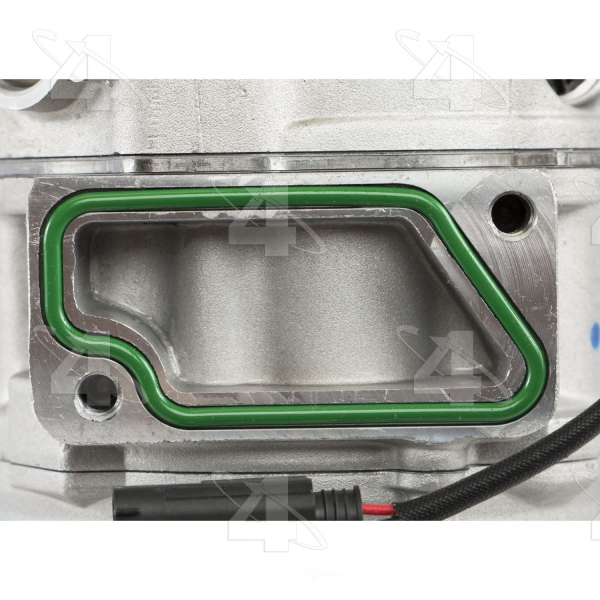

O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 109.525 |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 4.3125 |
Pulley Outside Diameter | 4.3125 |
Pulley Ridge Diameter | 4.3125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361983588 |
Year Make Model | Trim | Engine |
---|---|---|
2004-2005 BMW 545i | All Trims | All Engines |
2006-2009 BMW 550i | All Trims | All Engines |
2004-2005 BMW 645Ci | All Trims | All Engines |
2006-2009 BMW 650Ci | All Trims | All Engines |
2006-2009 BMW 650i | All Trims | All Engines |
2002-2005 BMW 745Li | All Trims | All Engines |
2002-2005 BMW 745i | All Trims | All Engines |
2006-2009 BMW 750Li | All Trims | All Engines |
2006-2009 BMW 750i | All Trims | All Engines |
2003-2009 BMW 760Li | All Trims | All Engines |
