Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98350 |

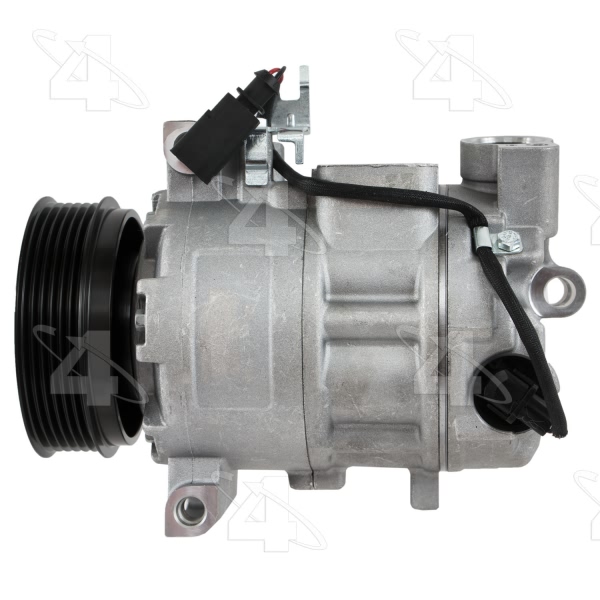

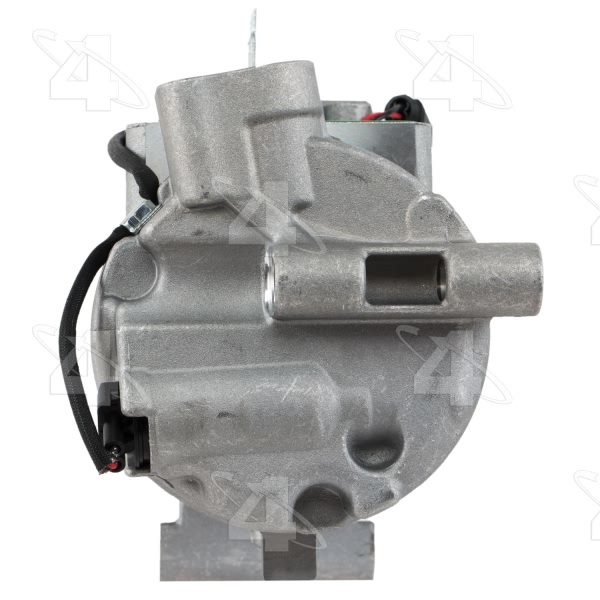

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.000 |
Coil Clock Position | NR |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 6SEU14C |

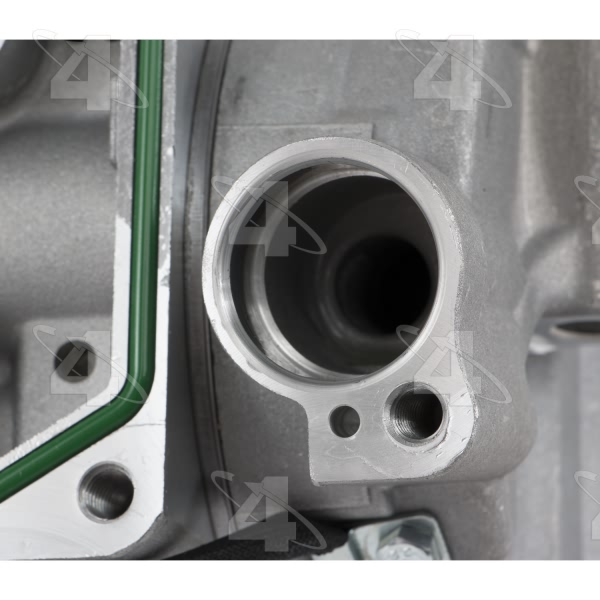

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.21875 |

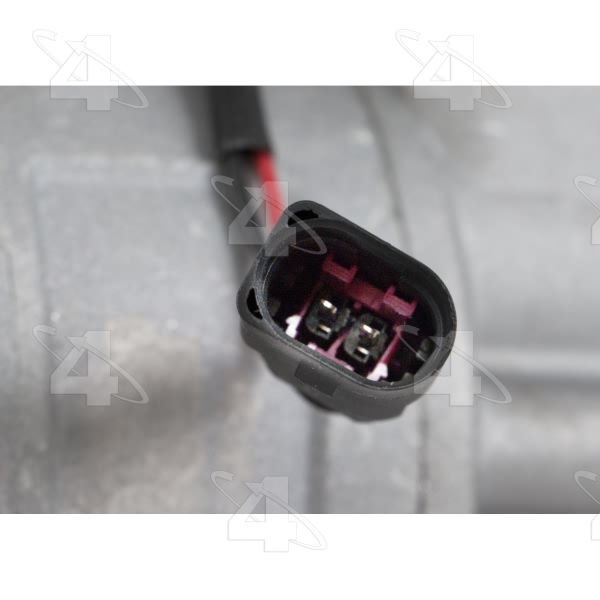

ECV Harness Connector | SE35F, 26901 Female / / SE35M, 26887 Male |
Mount Distance MM | 30.988 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |

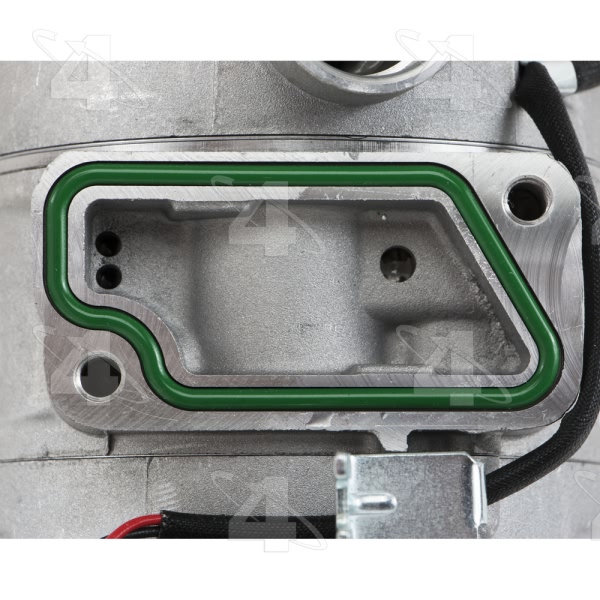

O-Ring A Number/Desc | [24659] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24635] / Green Round O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |

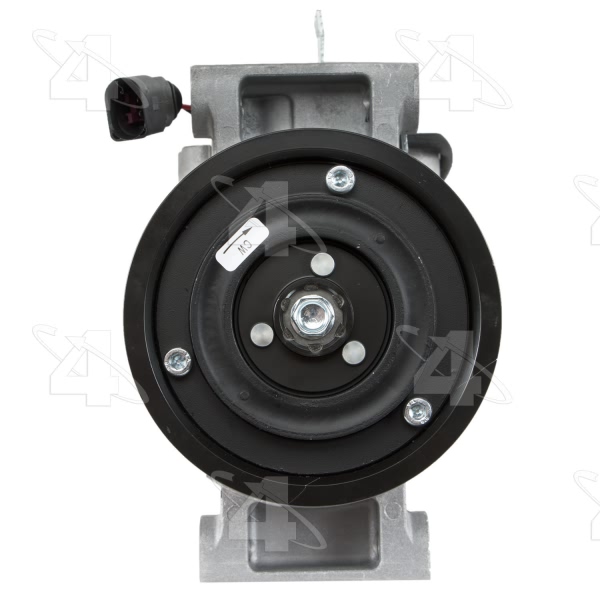

Pulley Belt Type | Serpentine |
Pulley Diameter MM | 101.600 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.000 |
Pulley Outside Diameter | 4.000 |
Pulley Ridge Diameter | 4.000 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Switch Included | Control Valve |
Terminal Type | Pin |
UPC | 096361983502 |
Year Make Model | Trim | Engine |
---|---|---|
2004-2009 Audi A3 | All Trims | All Engines |
2010-2012 Audi A3 | All Trims | 4 Cyl 1.4L |
2010-2012 Audi A3 | All Trims | 4 Cyl 1.8L |
2010-2012 Audi A3 | All Trims | 4 Cyl 2.0L |
2004-2008 Audi A3 Quattro | All Trims | All Engines |
2011 Audi A3 Quattro | All Trims | All Engines |
2001 Audi A4 | All Trims | 4 Cyl 1.8L |
2002-2003 Audi A4 | All Trims | All Engines |
2004-2005 Audi A4 | All Trims | 6 Cyl 3.0L |
2005-2006 Audi A4 | All Trims | 4 Cyl 1.8L |
