Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98326 |

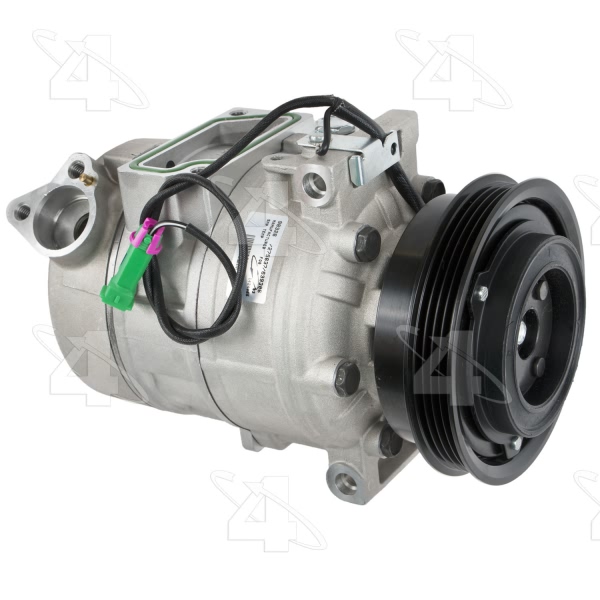

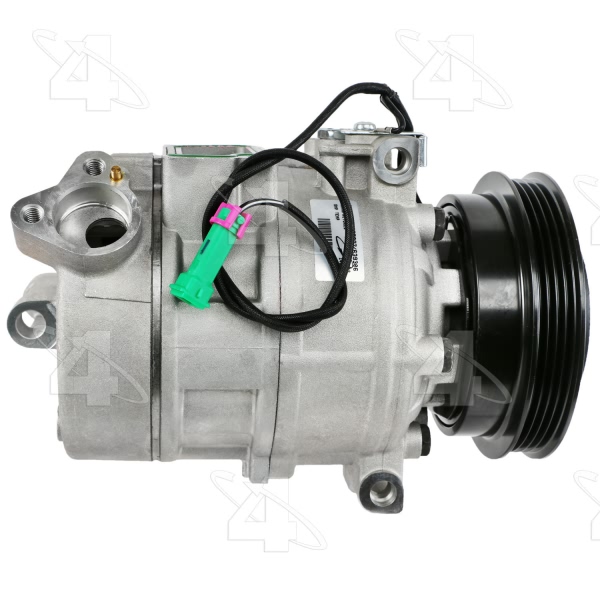

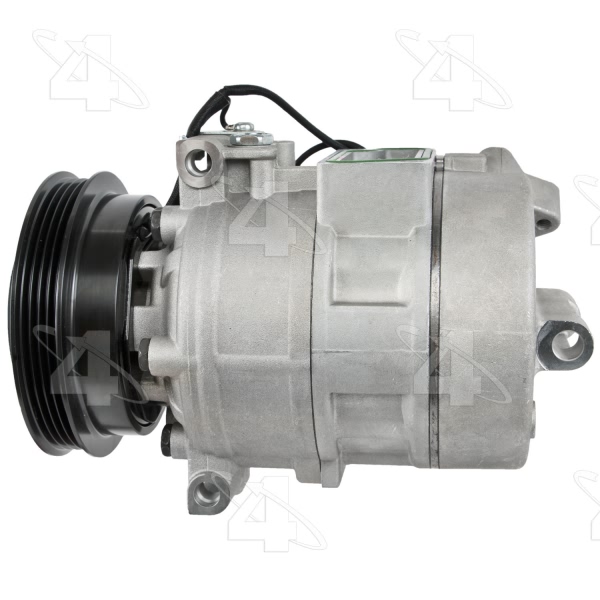

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.750 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 7SB16C |

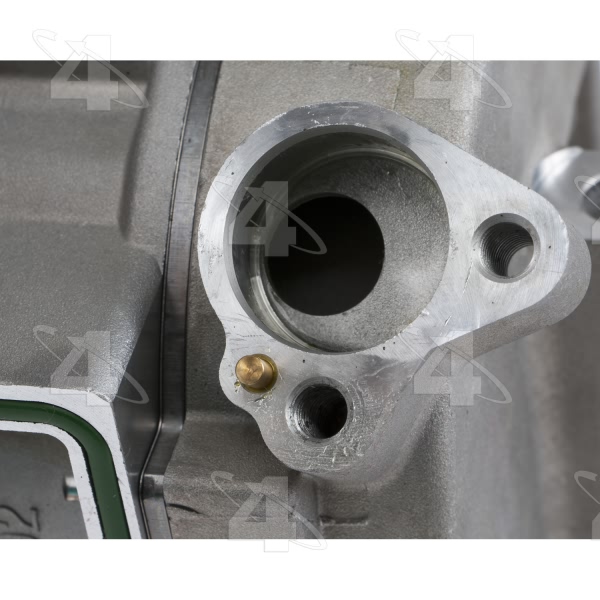

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.703125 |
Mount Distance MM | 43.180 |
Mounting Hardware | Not Included |

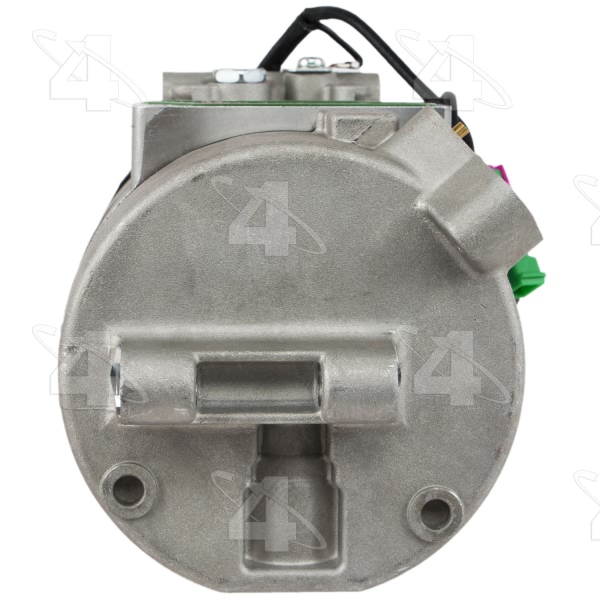

Mounting Type | Tangent Mount |
New or Reman | New |

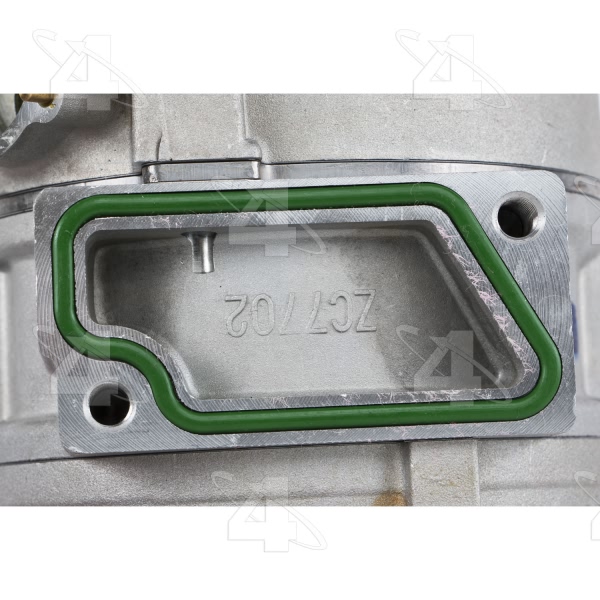

O-Ring A Number/Desc | [24670] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24635] / Green Round O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |

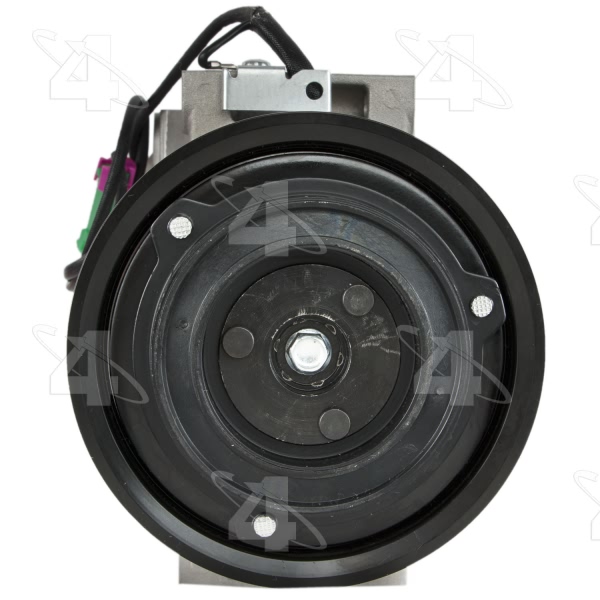

Pulley Belt Type | Serpentine |
Pulley Diameter MM | 120.650 |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 4.750 |
Pulley Outside Diameter | 4.750 |
Pulley Ridge Diameter | 4.750 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

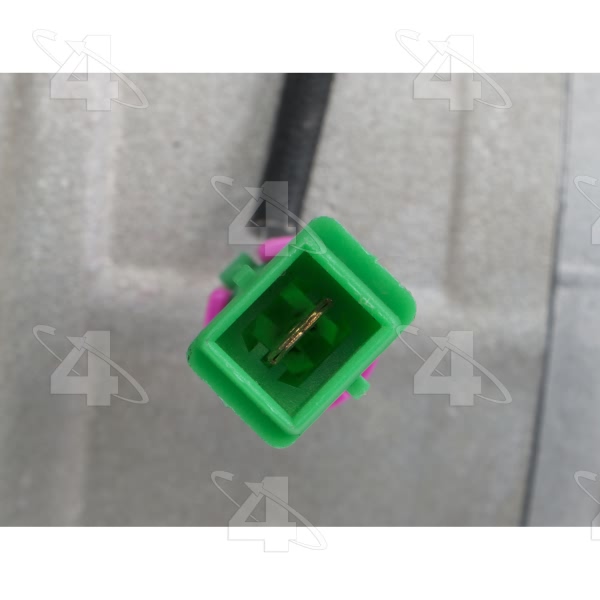

Terminal Type | Pin |
UPC | 096361983267 |
Year Make Model | Trim | Engine |
---|---|---|
1997 Audi A4 | All Trims | 6 Cyl 2.8L |
1997-2001 Audi A4 | All Trims | 4 Cyl 1.8L |
2002-2003 Audi A4 | All Trims | All Engines |
2004 Audi A4 | All Trims | 4 Cyl 1.8L |
1997-1998 Audi A4 Quattro | All Trims | 6 Cyl 2.8L |
1999-2001 Audi A4 Quattro | All Trims | 4 Cyl 1.8L |
2001 Audi A4 Quattro | All Trims | 6 Cyl 2.8L |
2002-2003 Audi A4 Quattro | All Trims | All Engines |
2004 Audi A4 Quattro | All Trims | 4 Cyl 1.8L |
1998-2002 Audi A6 | All Trims | All Engines |
