Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98319 |

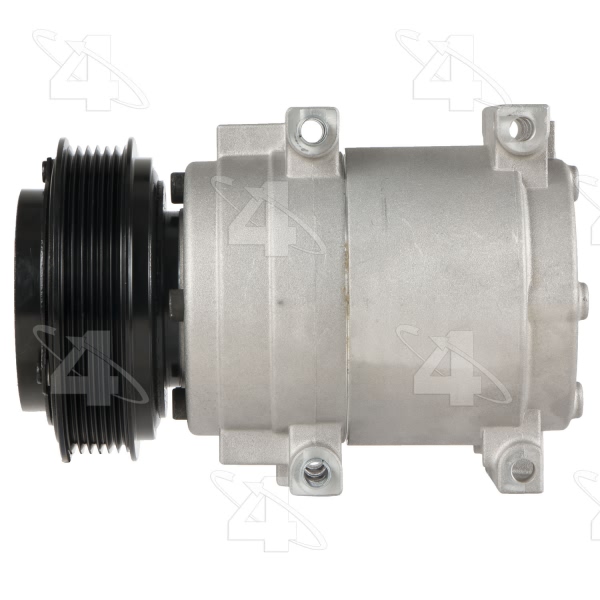

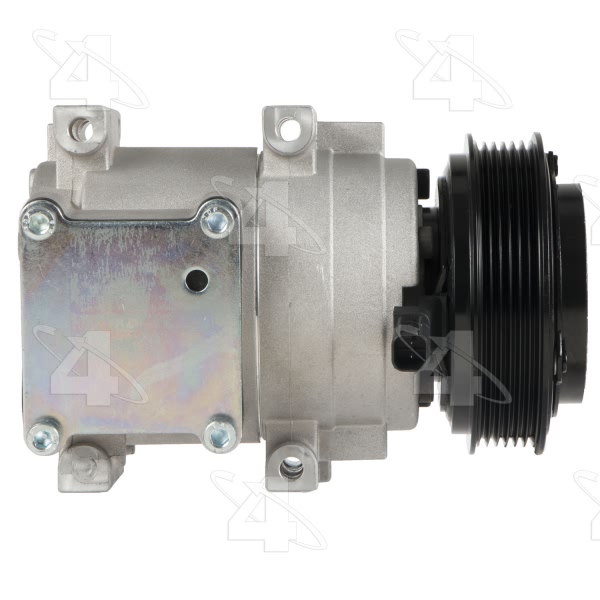

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.65625 |
Coil Clock Position | 3 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | HS15 |

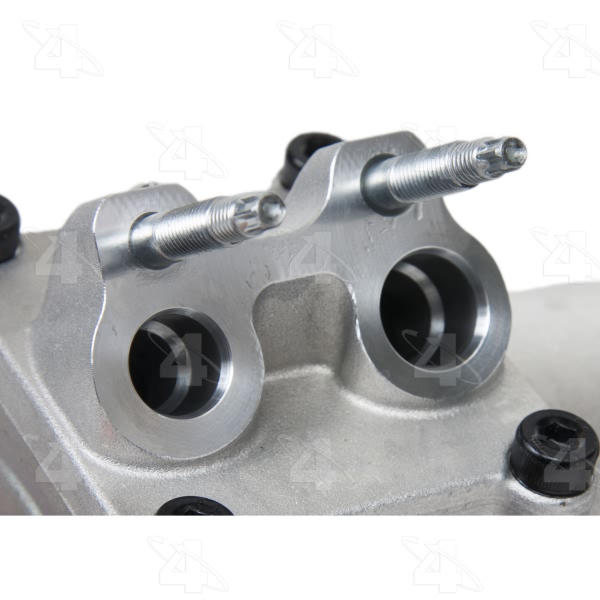

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 2.484375 |
Mount Distance MM | 62.992 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require Use of O.E. Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 118.364 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.65625 |
Pulley Outside Diameter | 4.65625 |
Pulley Ridge Diameter | 4.65625 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

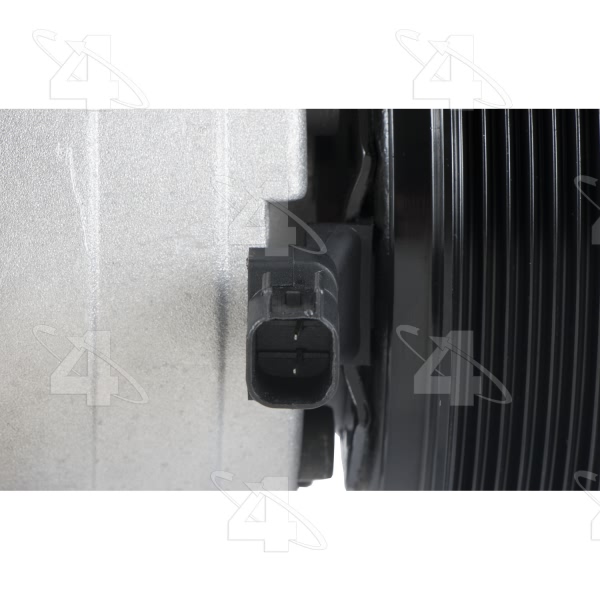

Terminal Type | Pin |
UPC | 096361983199 |
Year Make Model | Trim | Engine |
---|---|---|
2011-2013 Ford Fiesta | All Trims | All Engines |
2011-2013 Ford Fiesta Ikon | All Trims | All Engines |
