Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98318 |

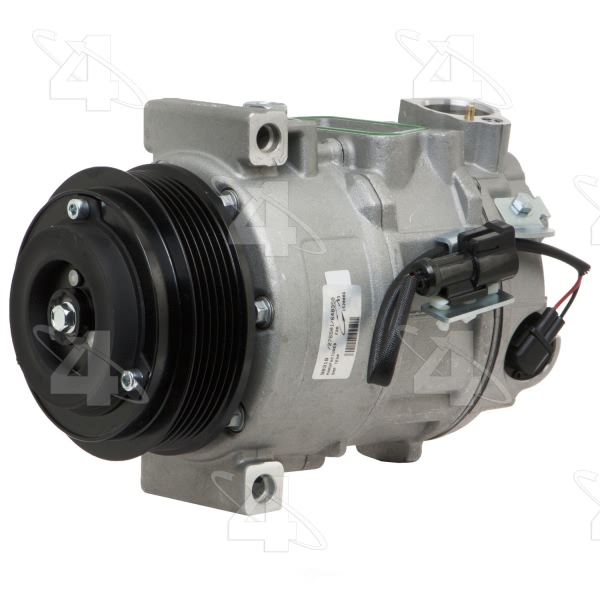

Part Description | A C Compressor With Clutch |
Belt Width IN | 0.875 |
Belt Width MM | 22.000 |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.328125 |
Coil Clock Position | NR |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 7SEU17C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.765625 |

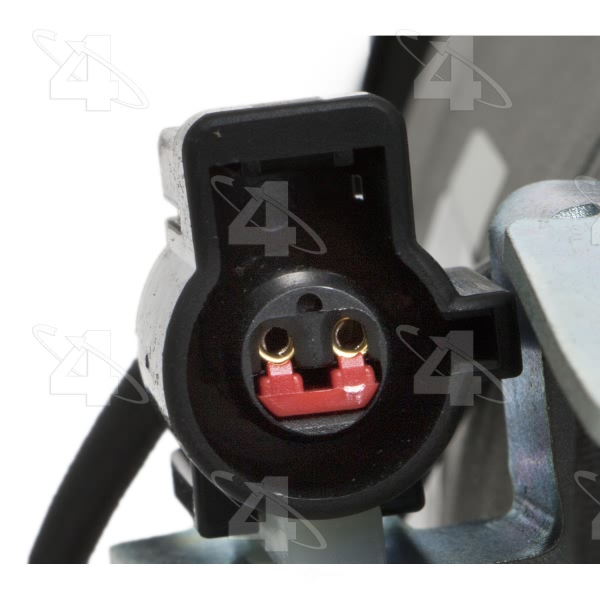

ECV Harness Connector | SE25F, 26897 Female / / SE23M, 26883 Male |
Mount Distance MM | 19.558 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24659] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24635] / Green Round O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 109.982 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.328125 |
Pulley Outside Diameter | 4.328125 |
Pulley Ridge Diameter | 4.328125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361983182 |
Year Make Model | Trim | Engine |
---|---|---|
2009 Jaguar XF | All Trims | All Engines |
2010 Jaguar XF | All Trims | 8 Cyl 4.2L |
2005-2007 Land Rover LR3 | All Trims | All Engines |
2008-2009 Land Rover LR3 | All Trims | 8 Cyl 4.4L |
2006-2009 Land Rover Range Rover | All Trims | 8 Cyl 4.2L |
2006-2009 Land Rover Range Rover | All Trims | 8 Cyl 4.4L |
2006-2009 Land Rover Range Rover Sport | All Trims | 8 Cyl 4.2L |
2006-2009 Land Rover Range Rover Sport | All Trims | 8 Cyl 4.4L |
