Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98317 |
Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.328125 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 6SEU12C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.234375 |

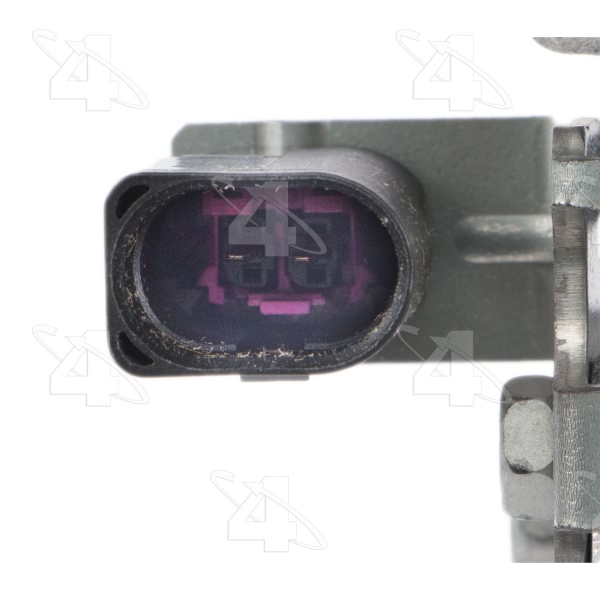

ECV Harness Connector | SE35F, 26901 Female / / SE35M, 26887 Male |
Mounting Hardware | Not Included |
Mounting Type | 3 Tangent One on Rear Head |
New or Reman | New |
O-Ring A Number/Desc | [24670] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24635] / Green Round O-Ring |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.328125 |
Pulley Outside Diameter | 4.328125 |
Pulley Ridge Diameter | 4.328125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361983175 |
Year Make Model | Trim | Engine |
---|---|---|
2008-2010 Audi A5 | All Trims | All Engines |
2008-2009 Audi A5 Quattro | All Trims | All Engines |
2010 Audi A5 Quattro | All Trims | 6 Cyl 3.2L |
2009 Audi Q5 | All Trims | All Engines |
2010 Audi Q5 | All Trims | 6 Cyl 3.2L |
2012 Audi Q5 | All Trims | 6 Cyl 3.2L |
2010-2012 Audi S4 | All Trims | All Engines |
2010-2012 Audi S5 | All Trims | 6 Cyl 3.0L |
