Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98309 |

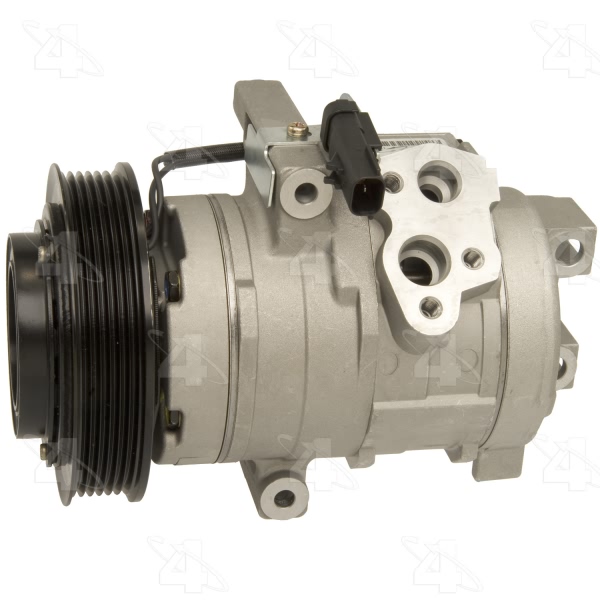

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.125 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10S17C |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 2.265625 |
Mount Distance MM | 57.404 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24068] / Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24069] / Gasket |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 130.175 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.125 |
Pulley Outside Diameter | 5.125 |
Pulley Ridge Diameter | 5.125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Pin |
UPC | 096361983090 |
Year Make Model | Trim | Engine |
---|---|---|
2006-2010 Chrysler 300 | All Trims | 6 Cyl 2.7L |
2006-2010 Dodge Charger | All Trims | 6 Cyl 2.7L |
2006-2008 Dodge Magnum | All Trims | 6 Cyl 2.7L |
