Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98297 |

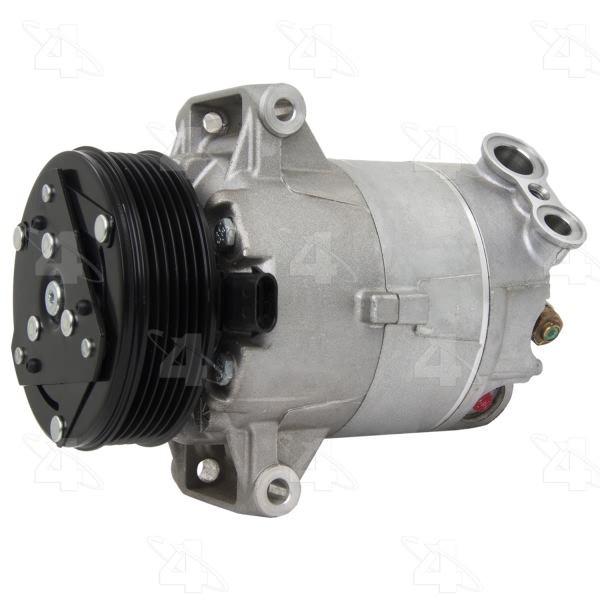

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.171875 |
Coil Clock Position | 3 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | CVC |

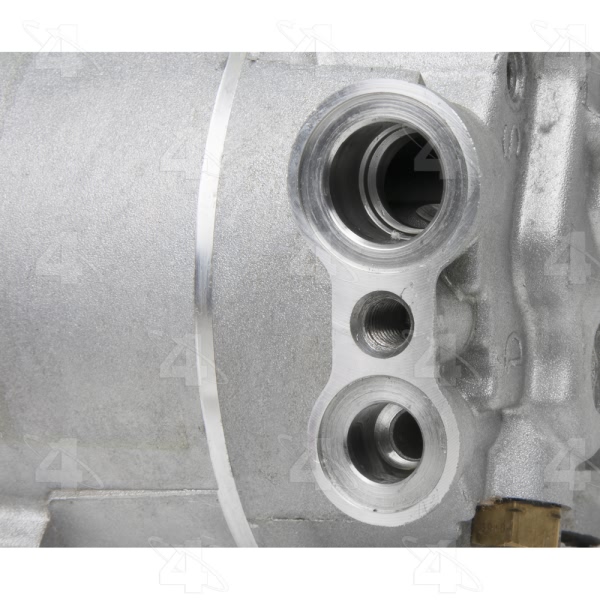

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.1875 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 105.918 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.171875 |
Pulley Outside Diameter | 4.171875 |
Pulley Ridge Diameter | 4.171875 |
Refrigerant Type | R134a |

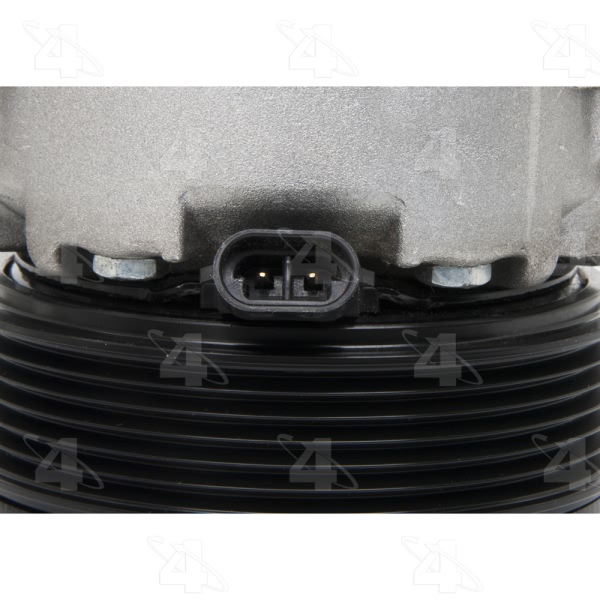

Terminal Type | Pin |
UPC | 096361982970 |
Year Make Model | Trim | Engine |
---|---|---|
2005 Chevrolet Cobalt | SS | 4 Cyl 2.0L |
2006 Chevrolet Cobalt | All Trims | 4 Cyl 2.0L |
2007 Chevrolet Cobalt | All Trims | All Engines |
2004-2007 Saturn Ion | All Trims | 4 Cyl 2.0L |
