Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98296 |

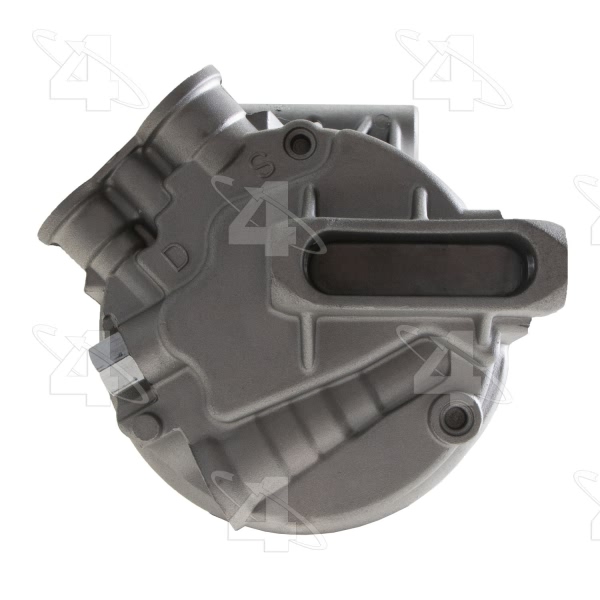

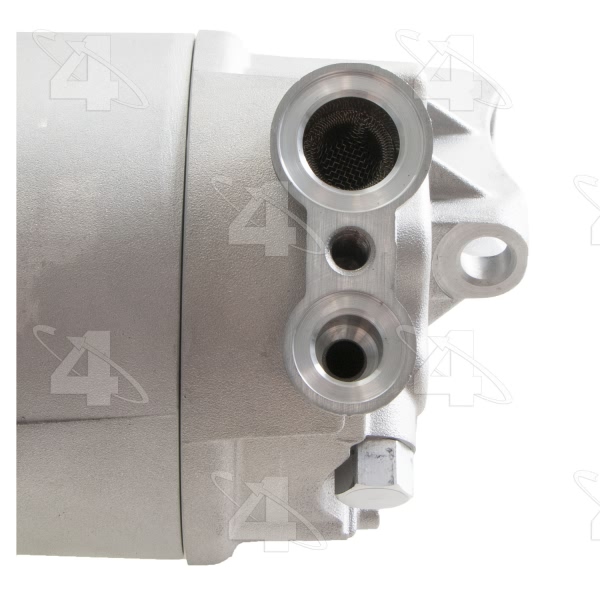

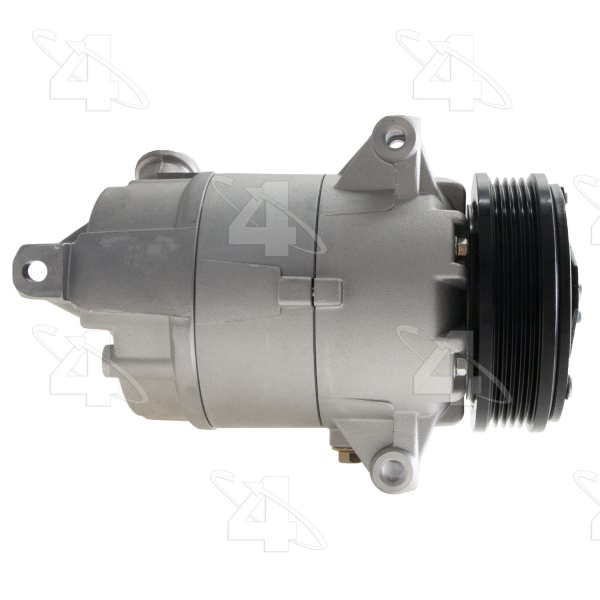

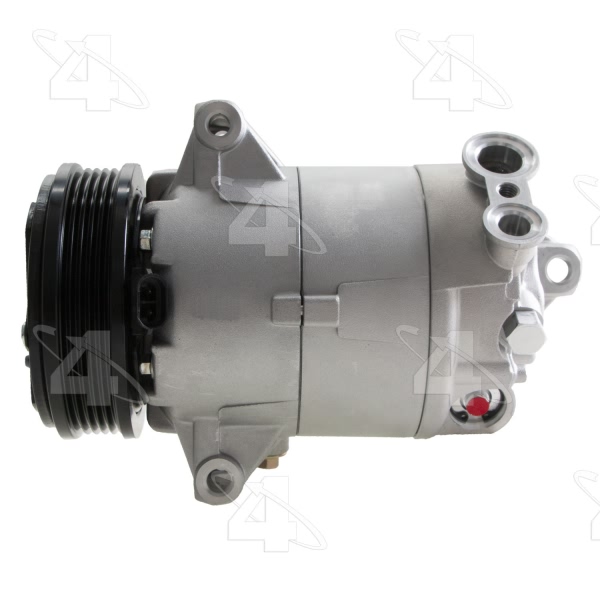

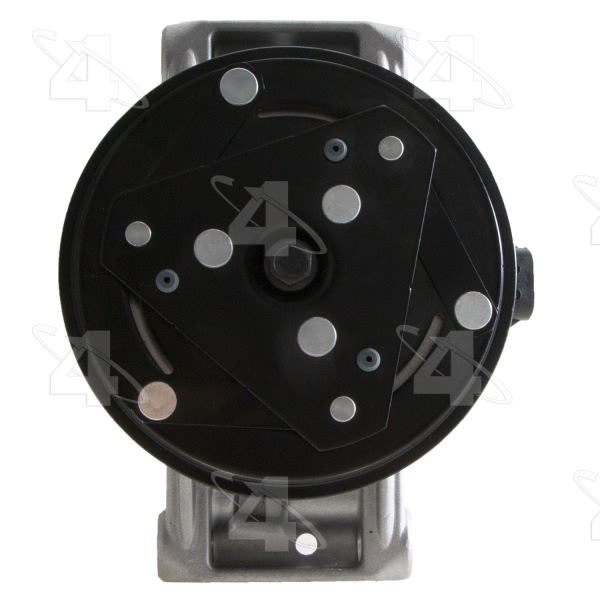

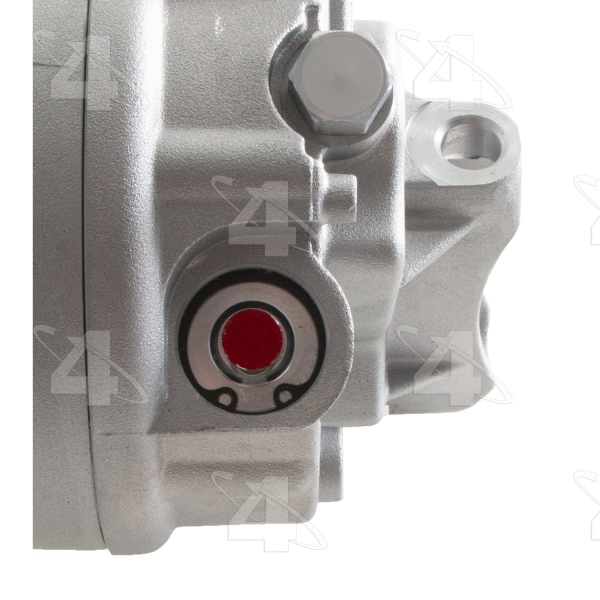

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.3125 |
Coil Clock Position | 3 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | CVC |
Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.703125 |
Mount Distance MM | 43.180 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 109.728 |
Pulley Groove Quantity | 5 |
Pulley Lip Diameter | 4.3125 |
Pulley Outside Diameter | 4.3125 |
Pulley Ridge Diameter | 4.3125 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Terminal Type | 8mm Pin Connector |
UPC | 096361982963 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2008 Chevrolet Malibu | All Trims | 4 Cyl 2.2L |
2008-2012 Chevrolet Malibu | All Trims | 4 Cyl 2.4L |
2007-2010 Pontiac G6 | All Trims | 4 Cyl 2.4L |
2008-2009 Saturn Aura | All Trims | 4 Cyl 2.4L |
