Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98276 |

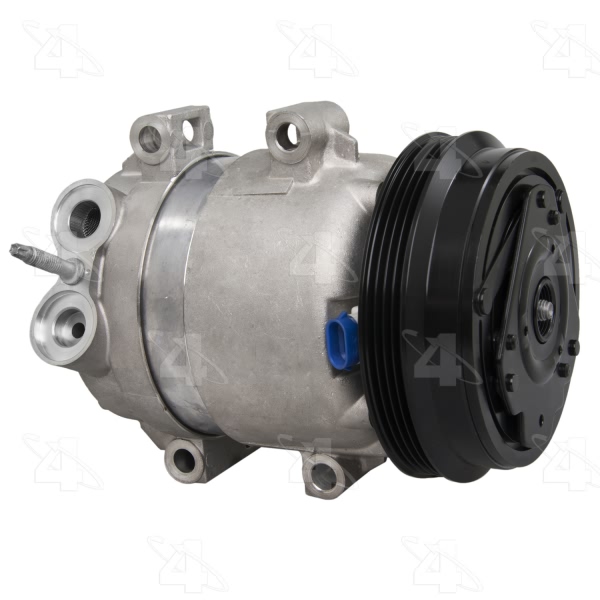

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.500 |
Coil Clock Position | 9 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 150 |
Compressor Type | V7 |
Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.53125 |
Mount Distance MM | 39.116 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24354] / Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 139.700 |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 5.500 |
Pulley Outside Diameter | 5.500 |
Pulley Ridge Diameter | 5.500 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |

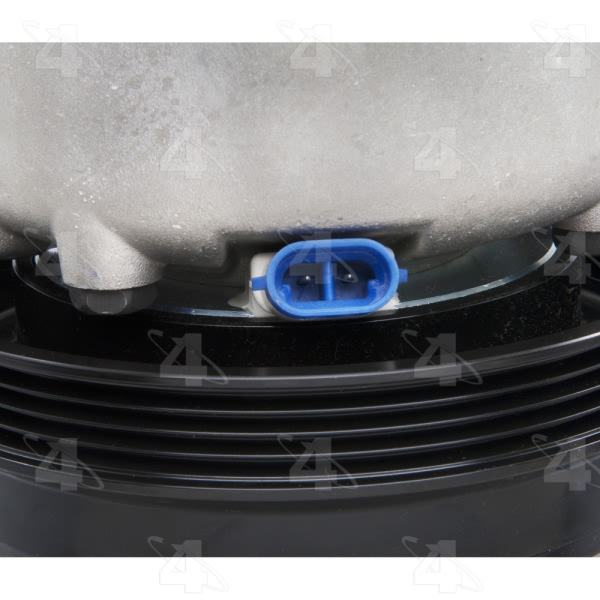

Terminal Type | 8mm Pin Connector |
UPC | 096361982765 |
Year Make Model | Trim | Engine |
---|---|---|
2004-2006 Pontiac GTO | All Trims | All Engines |
