Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 98271 |

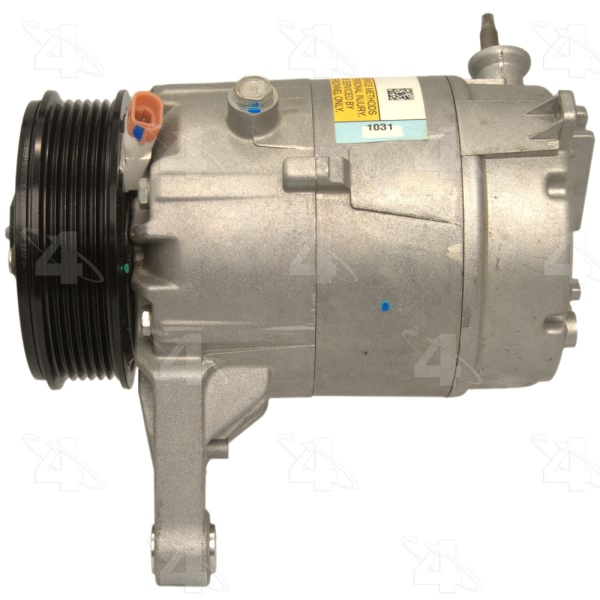

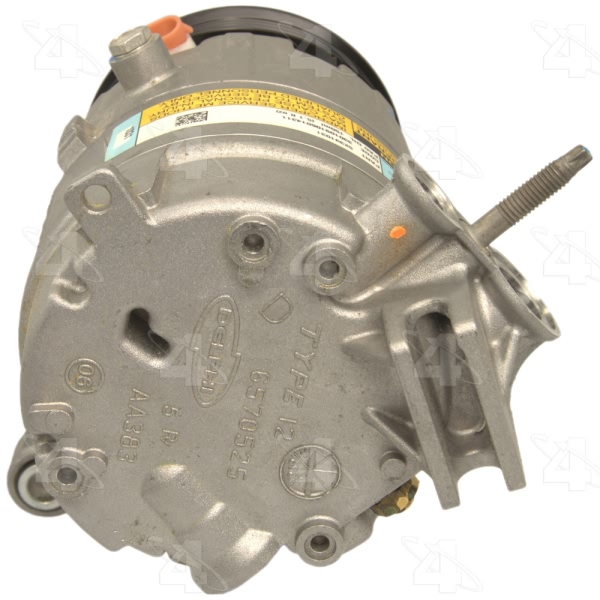

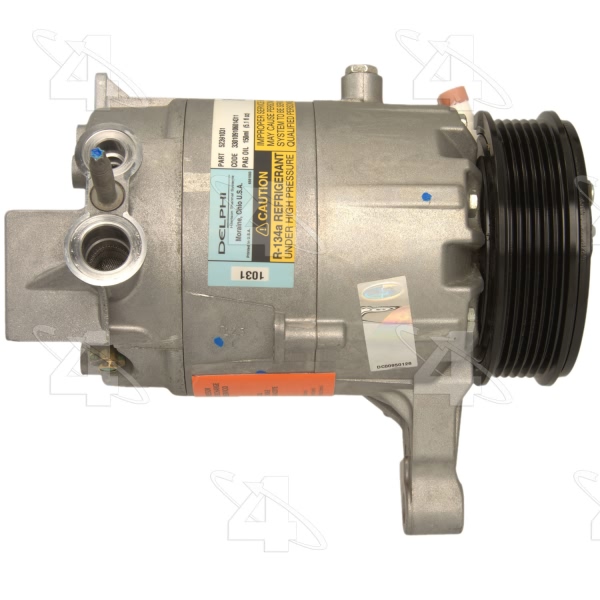

Part Description | A C Compressor With Clutch |

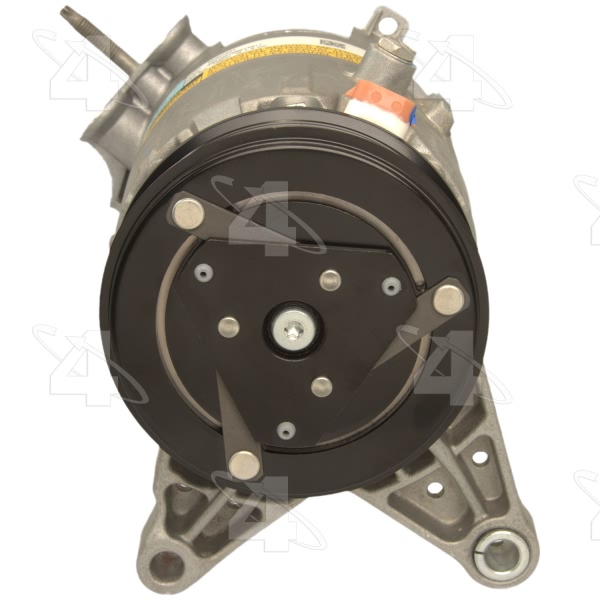

Clutch Included | Yes |
Clutch Maximum Diameter | 4.3125 |
Coil Clock Position | 5 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | CVC |

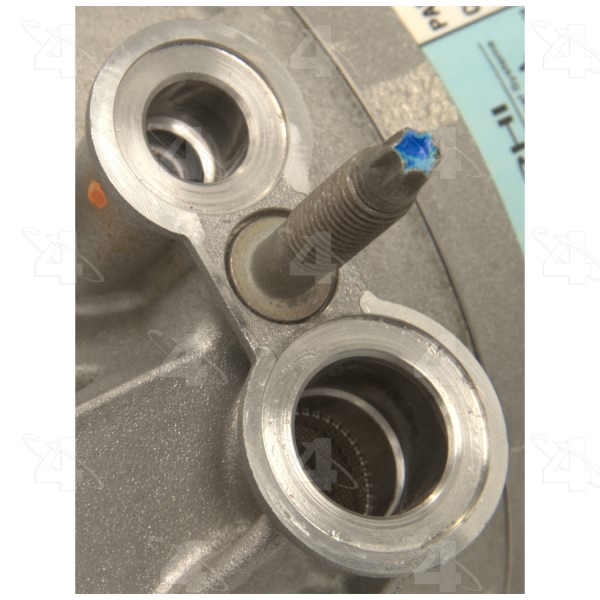

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 0.65625 |
Mount Distance MM | 16.510 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 109.525 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.3125 |
Pulley Outside Diameter | 4.3125 |
Pulley Ridge Diameter | 4.3125 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Switch Included | High Pressure |

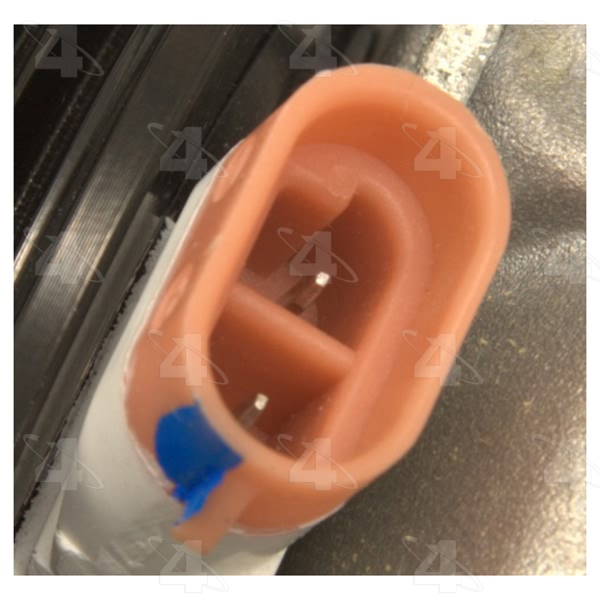

Terminal Type | Pin |
UPC | 096361982710 |
Year Make Model | Trim | Engine |
---|---|---|
2006-2009 Chevrolet Impala | All Trims | 6 Cyl 3.5L |
2006-2009 Chevrolet Impala | All Trims | 6 Cyl 3.9L |
2010-2011 Chevrolet Impala | All Trims | All Engines |
2006 Chevrolet Malibu | All Trims | 6 Cyl 3.9L |
2006 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.9L |
2006-2007 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.5L |
2006 Pontiac G6 | All Trims | 6 Cyl 3.9L |
