Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 88263 |

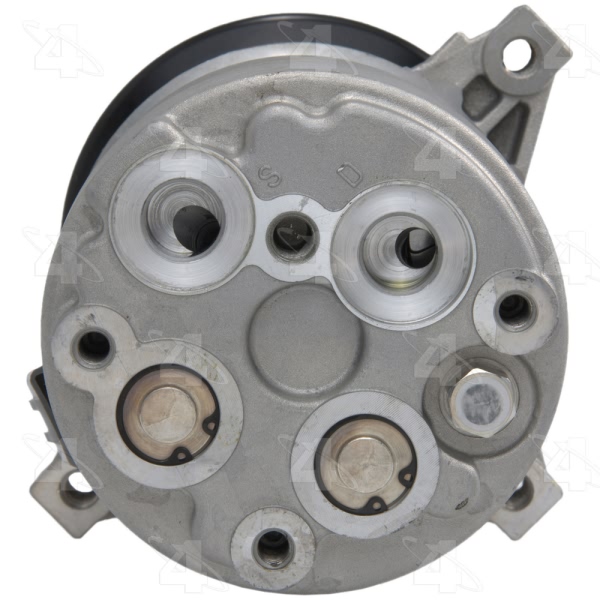

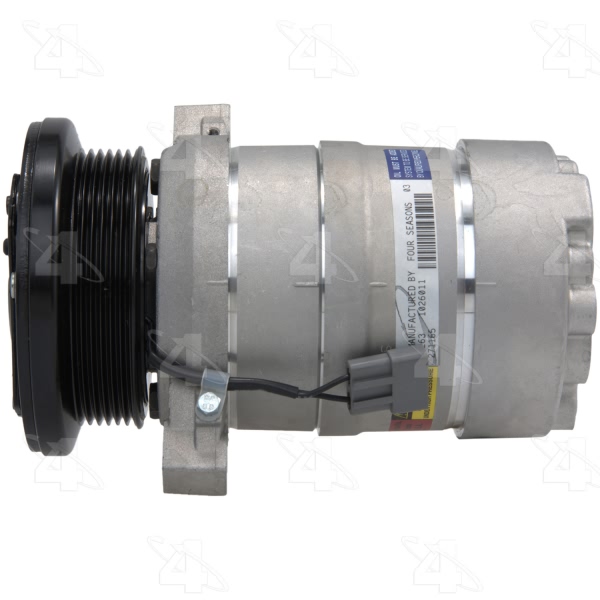

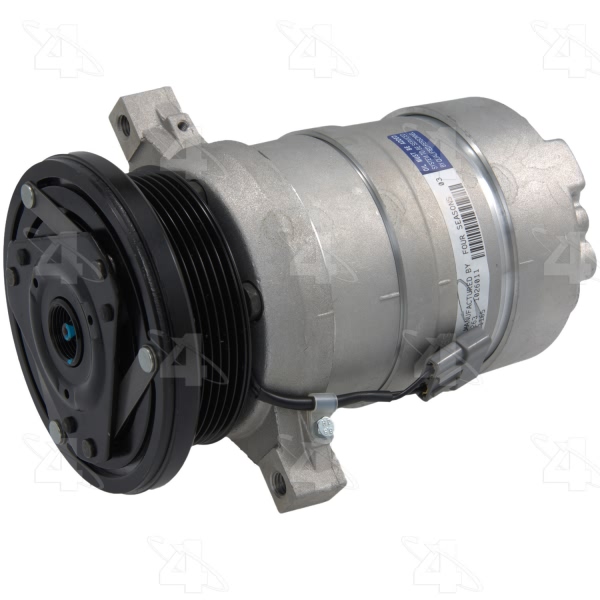

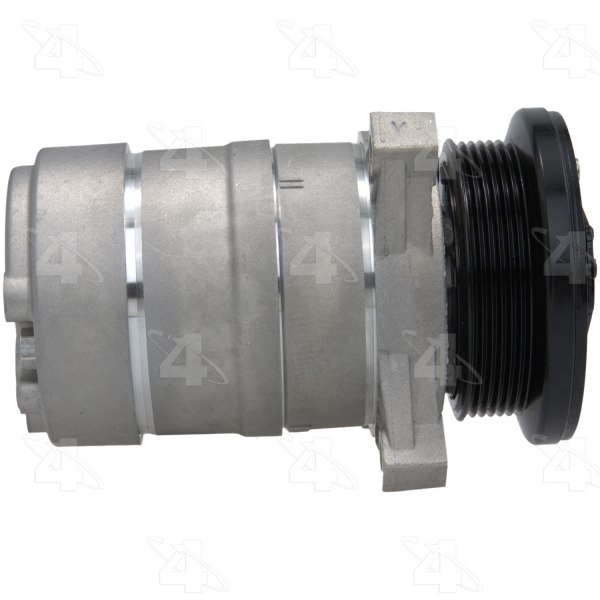

Part Description | A C Compressor With Clutch |

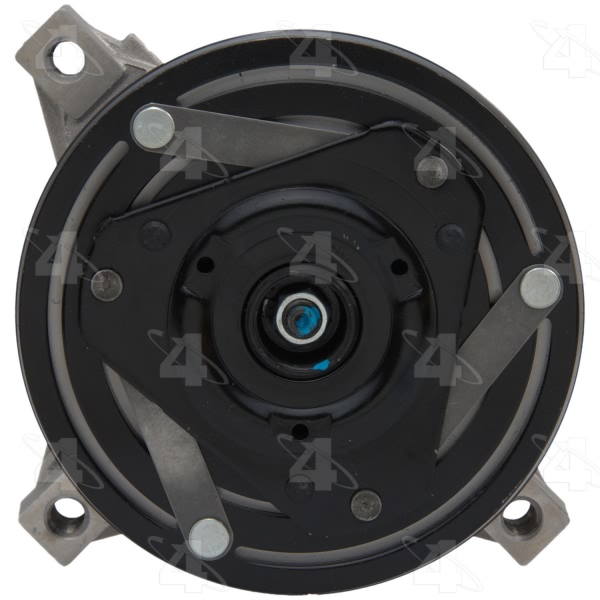

Clutch Included | Yes |
Clutch Maximum Diameter | 4.250 |
Coil Clock Position | 2 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | HR6 |

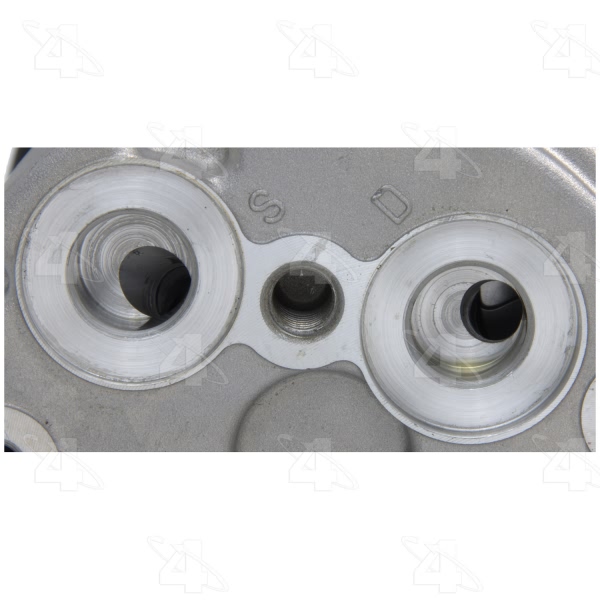

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 0.59375 |
Mount Distance MM | 15.240 |
Mounting Hardware | Not Included |
Mounting Type | Type I |
New or Reman | New |
O-Ring A Number/Desc | [24354] / Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | 24357 |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | 24358 |
O-Ring C Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 107.950 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.250 |
Pulley Outside Diameter | 4.250 |
Pulley Ridge Diameter | 4.250 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |

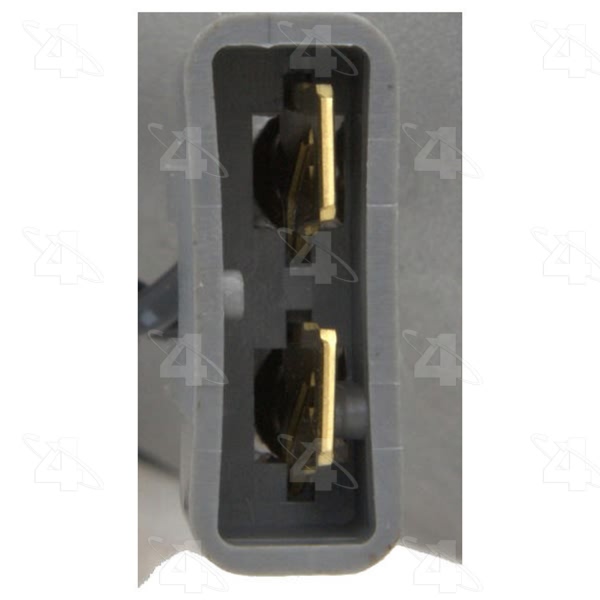

Terminal Type | Spade |
UPC | 096361882638 |
Year Make Model | Trim | Engine |
---|---|---|
1987-1988 Cadillac Allante | All Trims | All Engines |
1985 Cadillac Commercial Chassis | All Trims | 6 Cyl 4.3L |
1986-1988 Cadillac Commercial Chassis | All Trims | All Engines |
1985 Cadillac DeVille | All Trims | 8 Cyl 4.1L |
1986-1988 Cadillac DeVille | All Trims | All Engines |
1986-1988 Cadillac Eldorado | All Trims | All Engines |
1985 Cadillac Fleetwood | 75 | 6 Cyl 4.3L |
1985 Cadillac Fleetwood | 75 Formal | 6 Cyl 4.3L |
1985 Cadillac Fleetwood | Base | 6 Cyl 4.3L |
1985 Cadillac Fleetwood | d'Elegance | 6 Cyl 4.3L |
