Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 78594 |

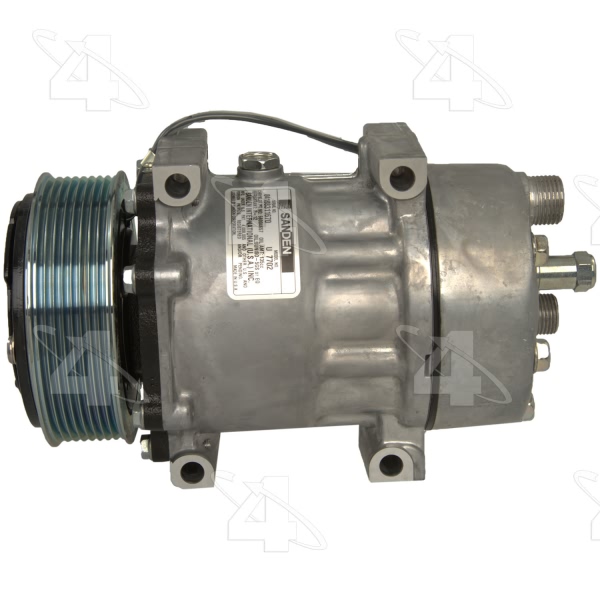

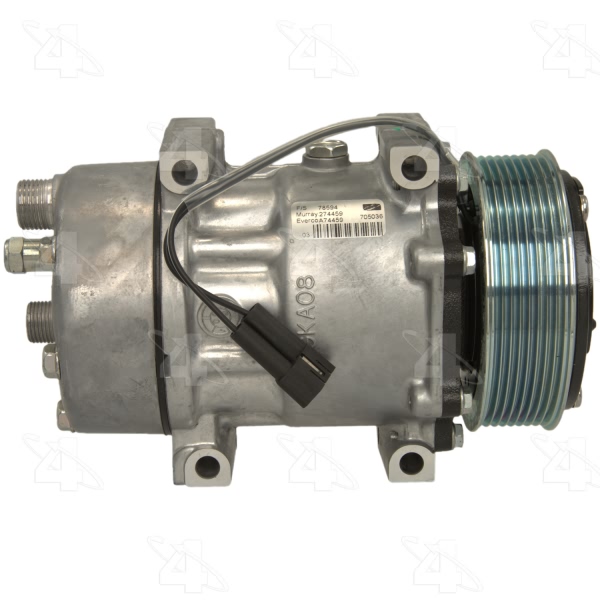

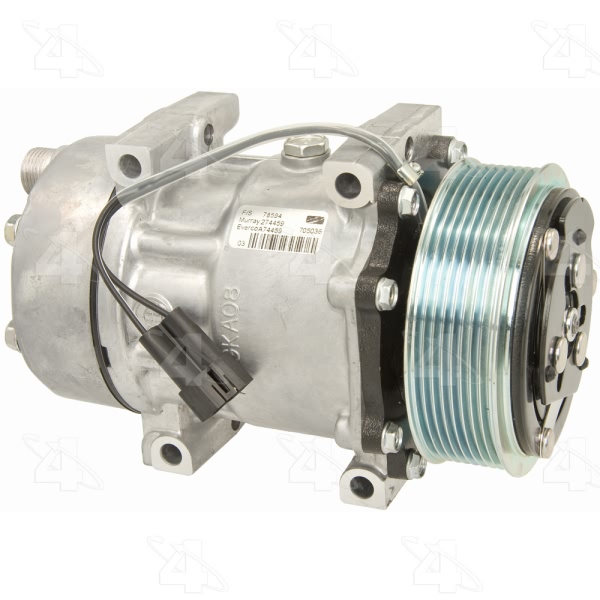

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |

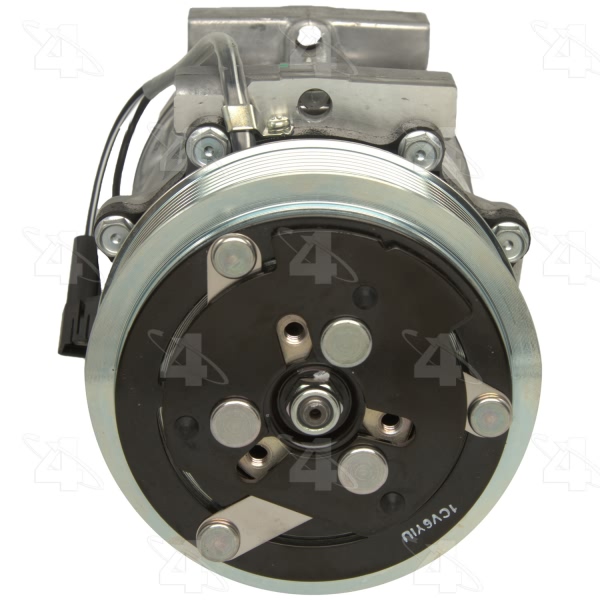

Clutch Maximum Diameter | 4.750 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Comp Head Prt Config | Rear-Horiz-O-Ring |
Compatible Refrigerant Oil Type | PAG 100 |

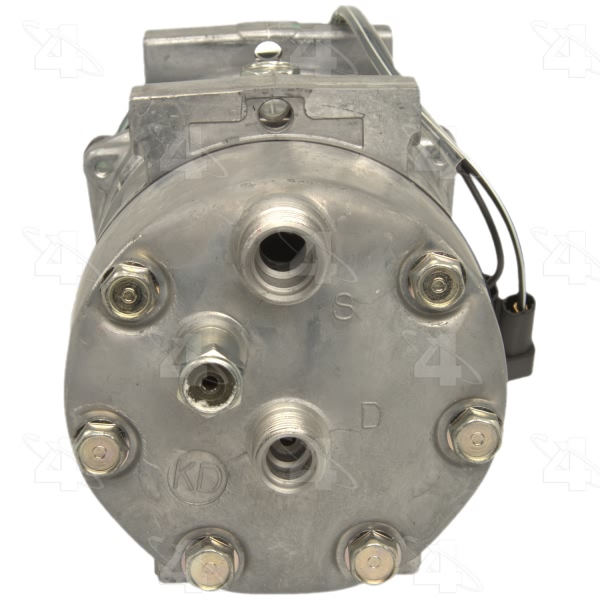

Compressor Head Type | KD |
Compressor Type | SD709 |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.859375 |
Mount Distance MM | 21.590 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24610] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 120.650 |
Pulley Groove Quantity | 8 |
Pulley Lip Diameter | 4.750 |
Pulley Outside Diameter | 4.750 |
Pulley Ridge Diameter | 4.750 |
Refrigerant Type | R134a |

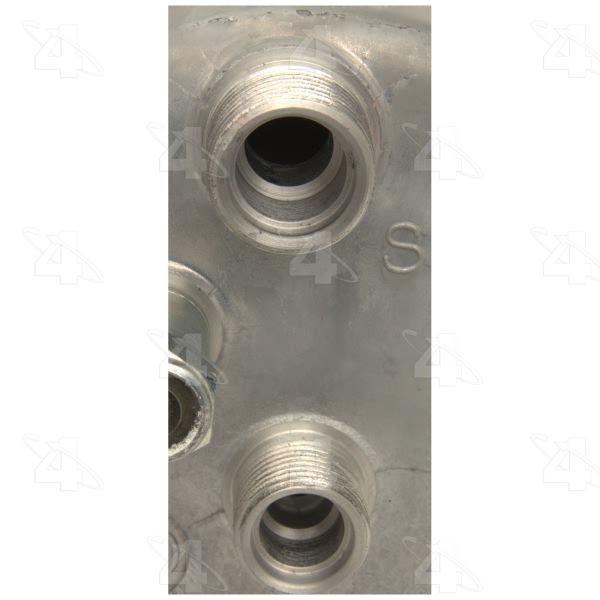

Suction Port Type | O-Ring |

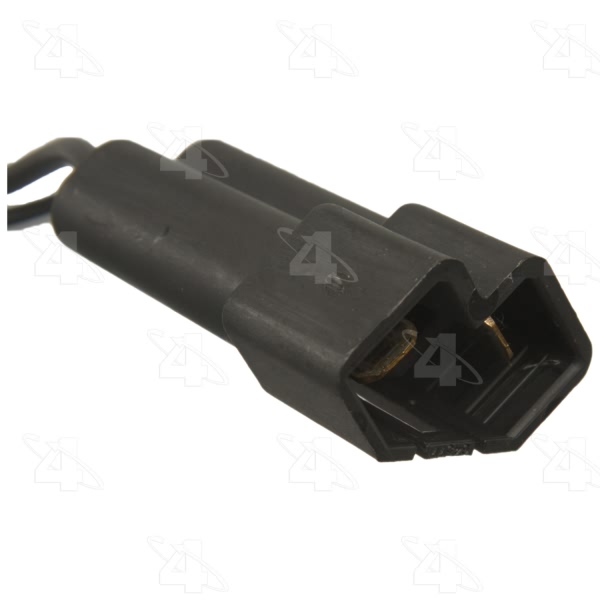

Terminal Type | Pin |
UPC | 096361785946 |
Year Make Model | Trim | Engine |
---|---|---|
1990-1993 Dodge D250 | All Trims | 6 Cyl 5.9L |
1990-1993 Dodge D350 | All Trims | 6 Cyl 5.9L |
1990-1993 Dodge W250 | All Trims | 6 Cyl 5.9L |
1990-1993 Dodge W350 | All Trims | 6 Cyl 5.9L |
