Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 78579 |

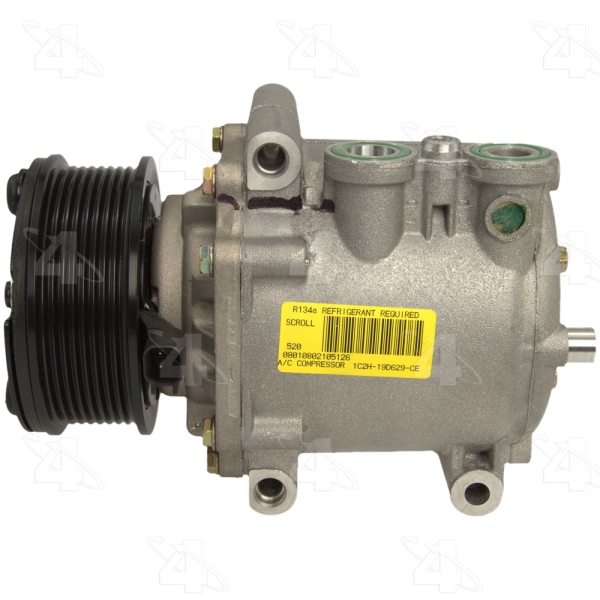

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 3.9375 |
Coil Clock Position | 3 |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | Scroll |
Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.296875 |
Mount Distance MM | 33.020 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |

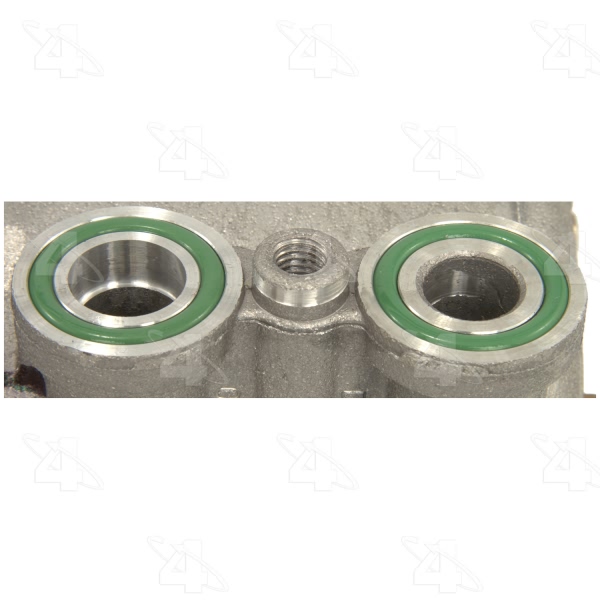

O-Ring A Number/Desc | [24632] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |

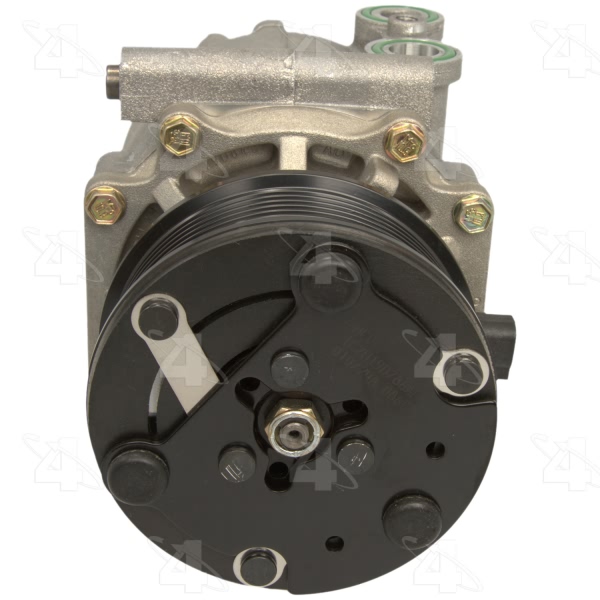

Pulley Belt Type | Serpentine |
Pulley Diameter MM | 100.025 |
Pulley Groove Quantity | 8 |
Pulley Lip Diameter | 3.9375 |
Pulley Outside Diameter | 3.9375 |
Pulley Ridge Diameter | 3.9375 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

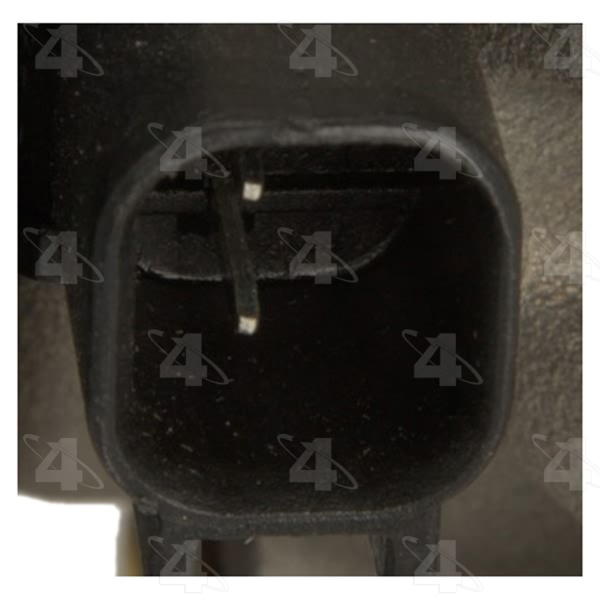

Terminal Type | Pin |
UPC | 096361785793 |
Year Make Model | Trim | Engine |
---|---|---|
2003 Ford E-350 Club Wagon | All Trims | 8 Cyl 7.3L |
2002 Ford E-350 Econoline Club Wagon | All Trims | 8 Cyl 7.3L |
2002-2003 Ford E-350 Super Duty | All Trims | 8 Cyl 7.3L |
