Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 78562 |
Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.125 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 100 |
Compressor Type | SD7H15 |

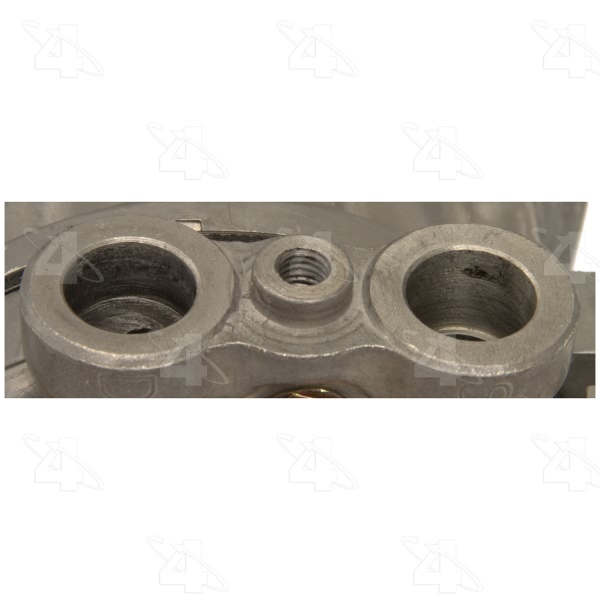

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 1.046875 |
Mount Distance MM | 26.670 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 130.048 |
Pulley Groove Quantity | 7 |
Pulley Lip Diameter | 5.125 |
Pulley Outside Diameter | 5.125 |
Pulley Ridge Diameter | 5.125 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Switch Included | Pressure Relief Valve |

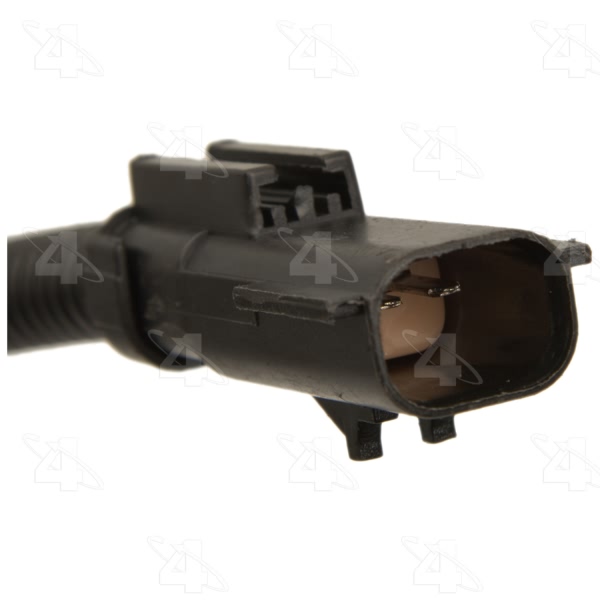

Terminal Type | Pin |
UPC | 096361785625 |
Year Make Model | Trim | Engine |
---|---|---|
2002-2003 Dodge Dakota | All Trims | 6 Cyl 3.9L |
2002-2003 Dodge Dakota | All Trims | 8 Cyl 5.9L |
2002-2003 Dodge Durango | All Trims | 8 Cyl 5.9L |
2002-2003 Dodge Ram 1500 | All Trims | 8 Cyl 5.9L |
2002 Dodge Ram 2500 | All Trims | 8 Cyl 5.9L |
2003 Dodge Ram 2500 | All Trims | 10 Cyl 8.0L |
2002 Dodge Ram 3500 | All Trims | 8 Cyl 5.9L |
2003 Dodge Ram 3500 | All Trims | 10 Cyl 8.0L |
