Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 78561 |

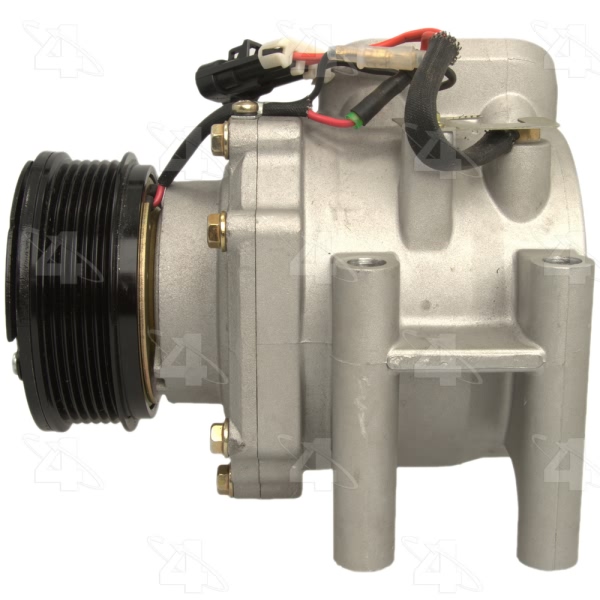

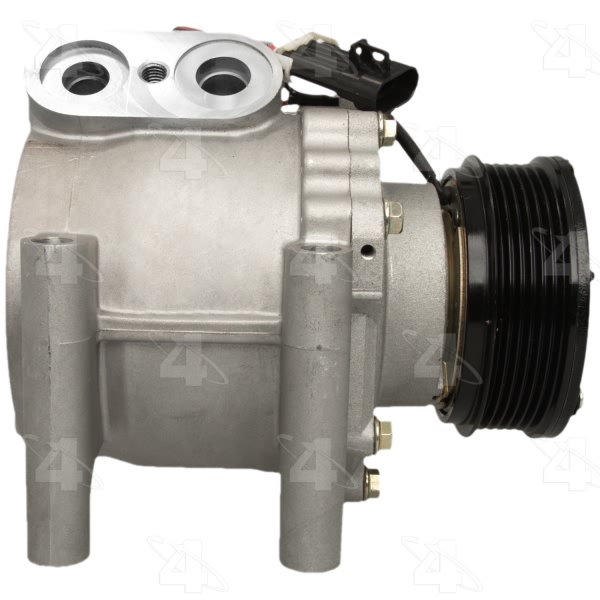

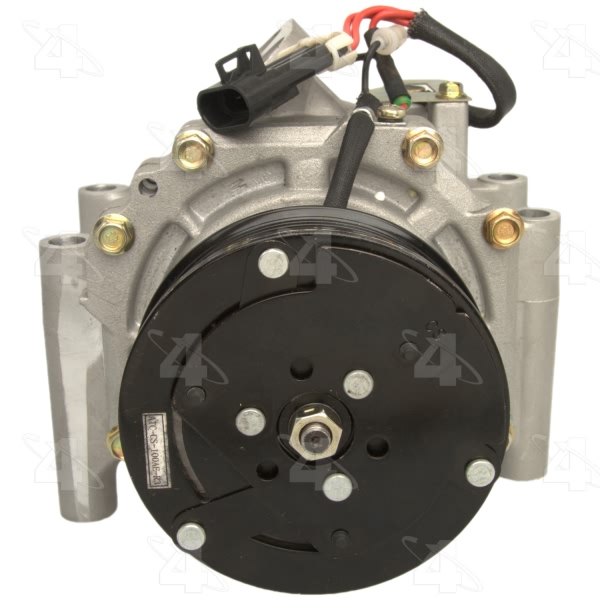

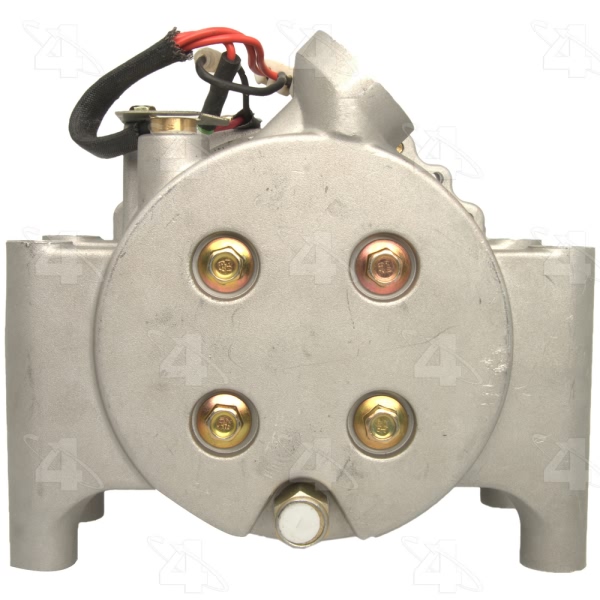

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 3.875 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | TRSA12 |

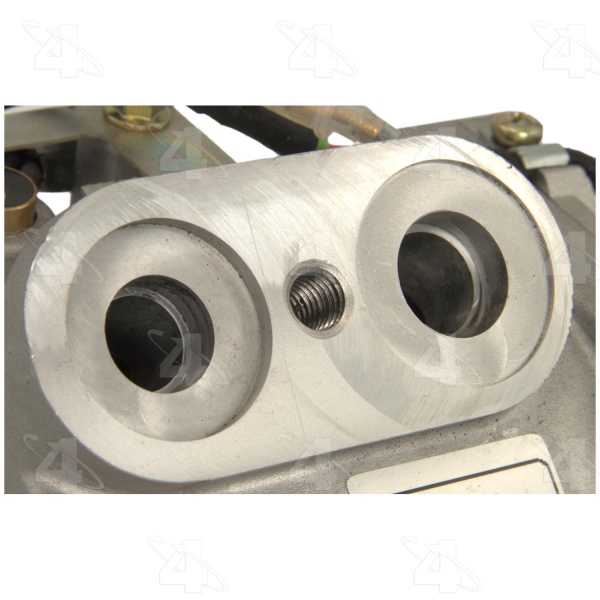

Discharge Port Type | Sealing Washer |
Distance From Clutch To Mounting Flange | 2.000 |
Mount Distance MM | 50.800 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |
O-Ring A Number/Desc | [24355] / Sealing Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24354] / Sealing Washer |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 98.425 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 3.875 |
Pulley Outside Diameter | 3.875 |
Pulley Ridge Diameter | 3.875 |
Refrigerant Type | R134a |
Suction Port Type | Sealing Washer |
Switch Included | Heat Sensor |

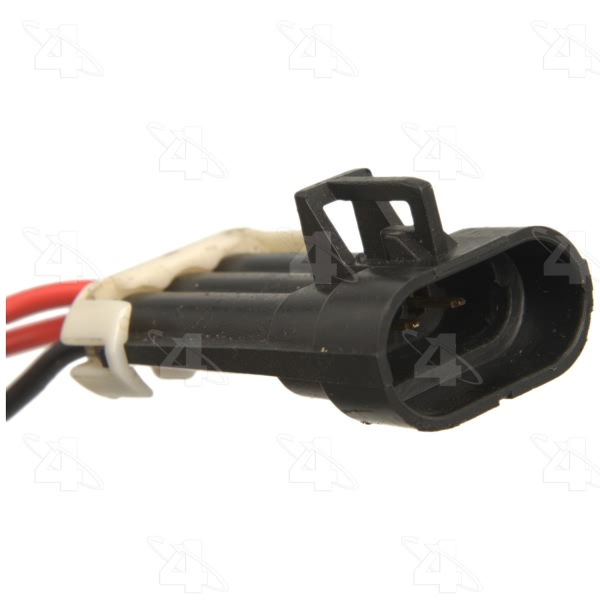

Terminal Type | Pin |
UPC | 096361785618 |
Year Make Model | Trim | Engine |
---|---|---|
2004-2007 Buick Rainier | All Trims | 6 Cyl 4.2L |
2002-2005 Chevrolet Trailblazer | All Trims | All Engines |
2006-2009 Chevrolet Trailblazer | All Trims | 6 Cyl 4.2L |
2002 Chevrolet Trailblazer EXT | All Trims | All Engines |
2003-2006 Chevrolet Trailblazer EXT | All Trims | 6 Cyl 4.2L |
2002-2004 GMC Envoy | All Trims | All Engines |
2005-2009 GMC Envoy | All Trims | 6 Cyl 4.2L |
2002 GMC Envoy XL | All Trims | All Engines |
2003-2006 GMC Envoy XL | All Trims | 6 Cyl 4.2L |
2004-2005 GMC Envoy XUV | All Trims | 6 Cyl 4.2L |
